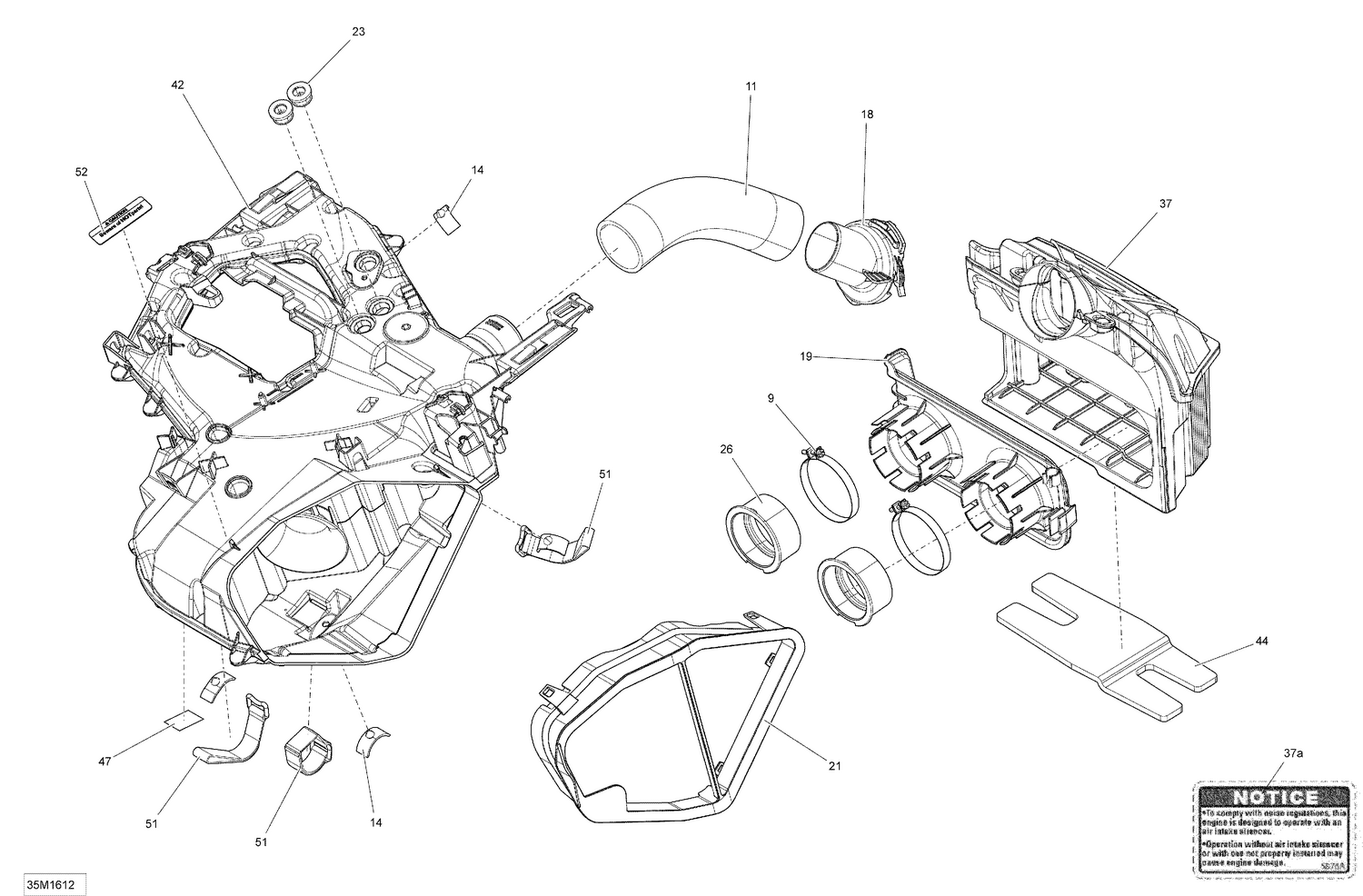

02- Air Intake System
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 508000369 | Gemi Clamp |
| 11 | 508000406 | Tube |
| 14 | 508000537 | Stopper |
| 18 | 508000562 | Link |
| 19 | 508000564 | ADAPTER PLATE - Call your local BRP dealership |
| 21 | 508000568 | Air Intake Filter |
| 23 | 508000574 | Grommet |
| 26 | 508000594 | Air Intake Adapter |
| 37a | 516005876 | Notice Decal, Air Intake Silencer |
| 42 | 508000712 | Secondary Chamber Ass'y |
| 44 | 508000739 | Insulated Foam |
| 47 | 509000688 | Reflective Sheet |
| 51 | 508000820 | Velcro Strip |
