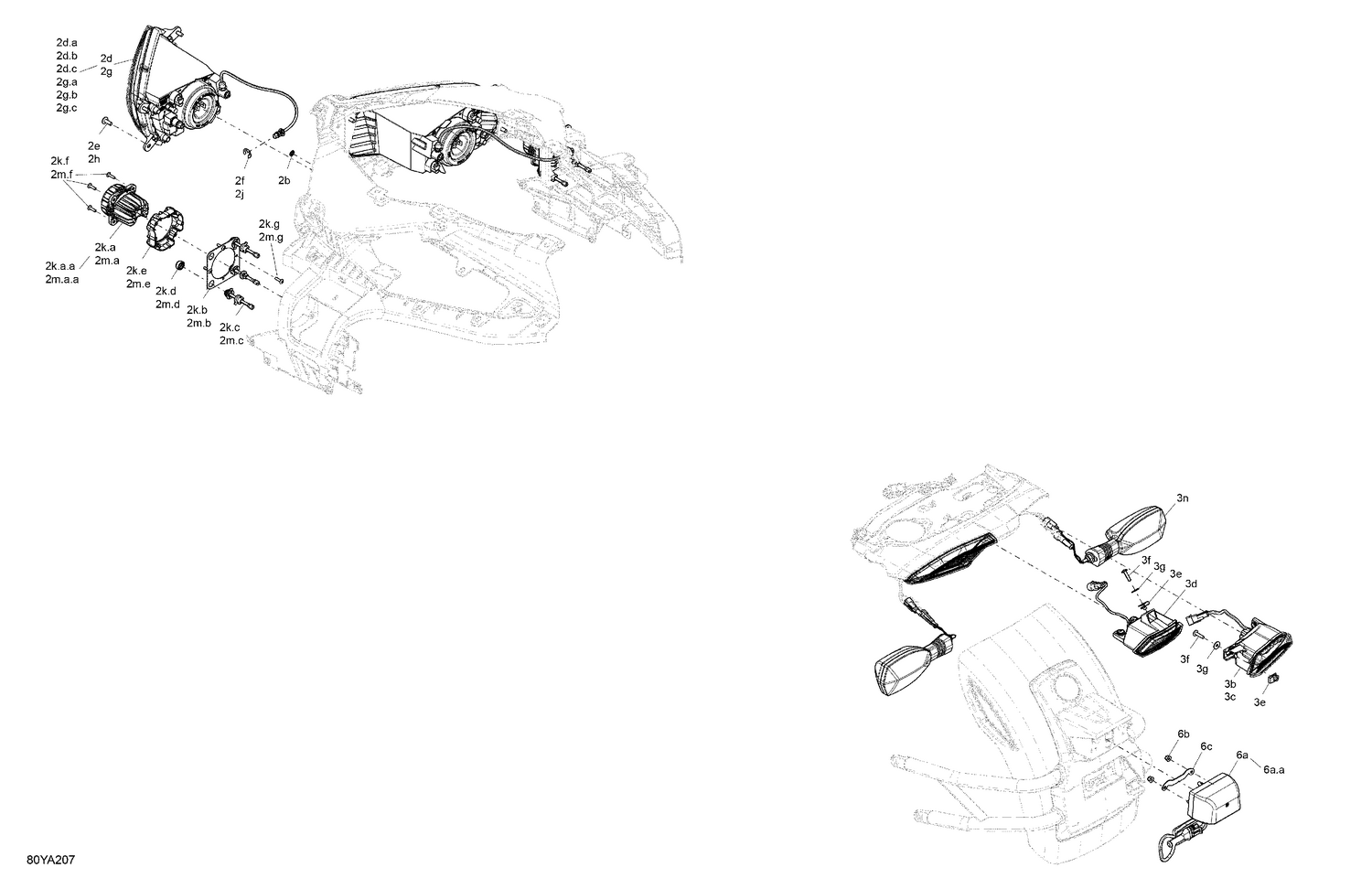

08- Electric - Vehicle Lighting - Australia-Europe
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2b | 250100034 | Push Nut |
| 2e | 250000721 | Torx Truss Screw M6 X 16 |
| 2f | 293370013 | E-Circlip |
| 2h | 250000721 | Torx Truss Screw M6 X 16 |
| 2j | 293370013 | E-Circlip |
| 3b | 710007001 | LH Tail Light |
| 3c | 710007003 | RH Tail Light |
| 3d | 710007005 | Back-Up Light |
| 3e | 250000958 | Panel Nut M5 X 0.8 |
| 3f | 250000715 | Torx Truss Screw M5 X 20 |
| 3g | 234052670 | Stainless Steel Flat Washer M5 |
| 3n | 710007006 | Amber, Rear Turn Signal |
| 6b | 233251494 | Elastic Flange Nut M5 |
