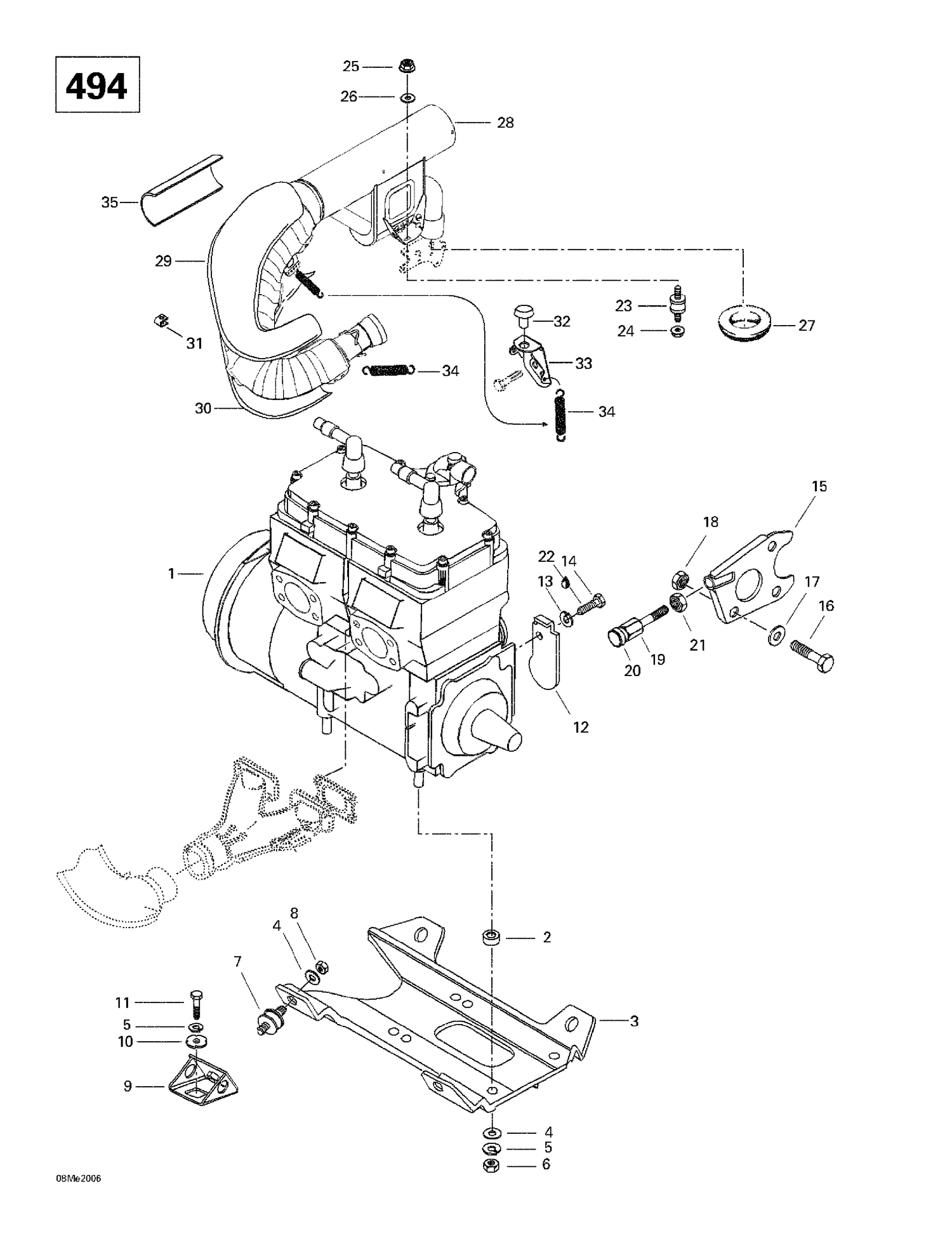

01- Engine Support And Muffler
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 400409413 | Moteur «494» |
| 2 | 503128100 | Spacer |
| 3 | 512054400 | Engine Support |
| 4 | 234001410 | Flat Washer 10 mm |
| 5 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 6 | 232006414 | Hex. Nut M10 X 1.5 |
| 7 | 570127700 | RUBBER MOUNT - Call your local BRP dealership |
| 8 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 9 | 512050900 | Engine Support |
| 10 | 512056700 | Lock Washer |
| 11 | 207102544 | Hex. Screw M10 X 25 |
| 12 | 512052900 | Stopper Plate |
| 13 | 234161471 | Lock Washer M6, Black |
| 14 | 207161644 | Hex. Screw M6 X 16 |
| 15 | 512055600 | Support Plate |
| 16 | 207182544 | Hex. Screw M8 X 25 |
| 17 | 234081410 | Flat Washer 8 mm |
| 18 | 232581414 | Hex. Elastic Stop Nut M8 |
| 19 | 512058800 | STOPPER SCREW - Call your local BRP dealership |
| 20 | 512059056 | Stopper |
| 21 | 232026414 | RH Hex. Nut This part replaces 732610019. |
| 22 | 293800005 | Loctite 271, 10 ml |
| 23 | 514052838 | Rubber Mount |
| 24 | 233281414 | Hex. Flange Elastic Nut M8 |
| 25 | 232581414 | Hex. Elastic Stop Nut M8 |
| 26 | 234082410 | Flat Washer 8 mm |
| 27 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
| 29 | 514044020 | Upper Shell |
| 30 | 514048504 | Lower Shell |
| 31 | 514046503 | Cleat |
| 32 | 514048200 | Rubber Bumber |
