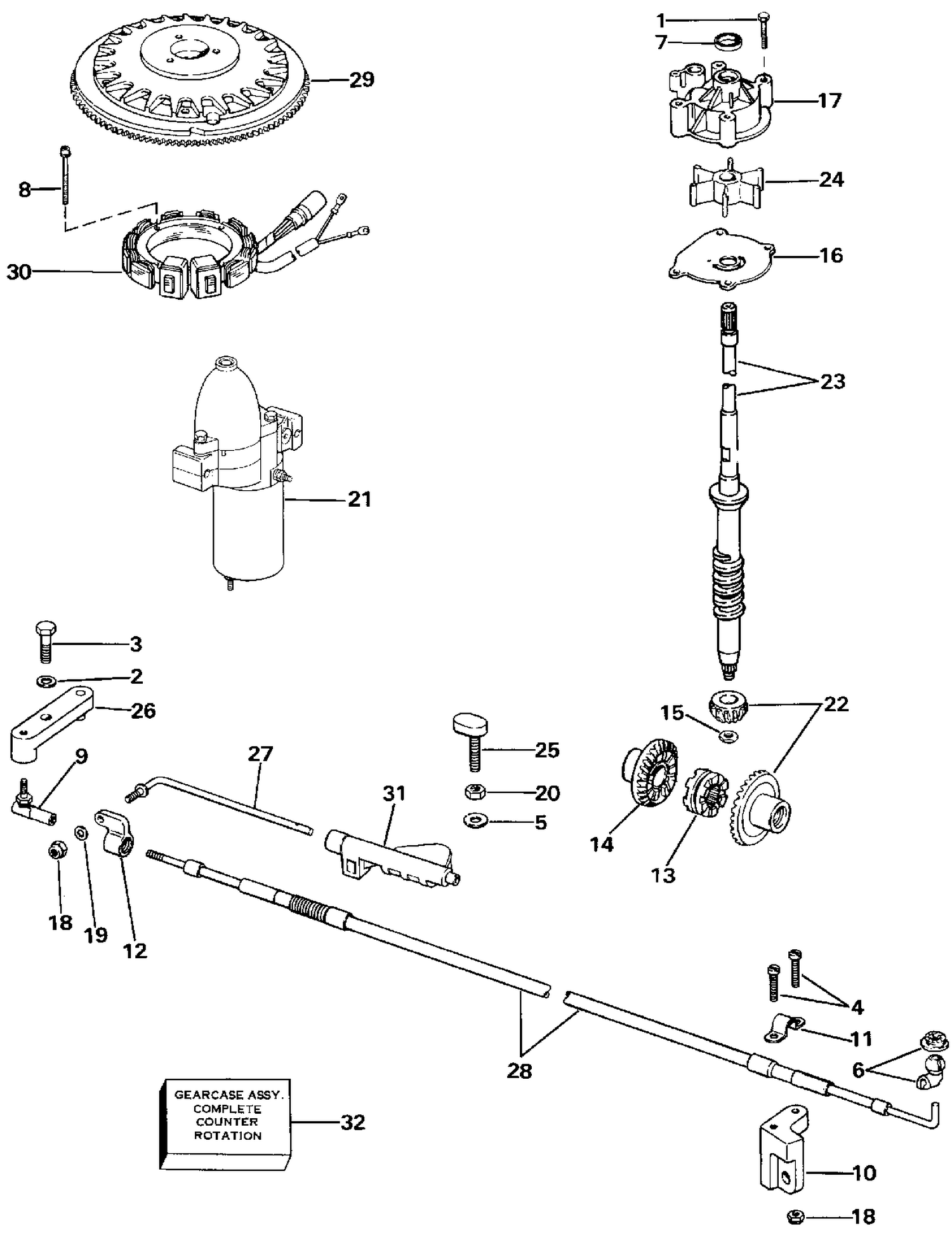

| Ref | Part Number | Description |
|---|
| 1 |
0303398 |
VIS, support |
| 3 |
0305652 |
VIS, manette des gaz |
| 4 |
0312491 |
SCREW, Clamp to bracket |
| 6 |
0395448 |
BALL & SOCKET ASSY |
| 9 |
0327058 |
CONNECTOR, Cable to bracket |
| 10 |
0327059 |
BRACKET, Clamp, spark advance cable |
| 11 |
0327103 |
CLAMP, Cable to bracket |
| 12 |
0327142 |
CONNECTOR, Cable outer to timing rod |
| 13 |
0327143 |
SHIFT, Clutch dog |
| 14 |
0327146 |
GEAR, Reverse |
| 15 |
0327147 |
NUT, Pinion |
| 16 |
0327182 |
PLATE, Impeller hsg. |
| 17 |
0397590 |
IMPELLER HSG |
| 21 |
0397264 |
STARTER MOTOR ASSY. |
| 22 |
0397592 |
GEARCASE, Pinion & forward gear |
| 23 |
0397594 |
DRIVESHAFT, Long |
| 23 |
0397595 |
DRIVESHAFT, X-long |
| 24 |
0397596 |
IMPELLER ASSY. |
| 25 |
0397597 |
CAM ASSY., Timing adjustment |
| 26 |
0397598 |
BRACKET ASSY., Cable |
| 27 |
0397599 |
TIMING ROD ASSY. |
| 28 |
0397600 |
CABLE ASSY., Spark advance |
| 29 |
0583393 |
FLYWHEEL ASSY. |
| 30 |
0583117 |
STATOR ASSY |
| 31 |
0331862 |
HOUSING |
| 32 |
0398571 |
GEARCASE ASSY., 20 Inch |
