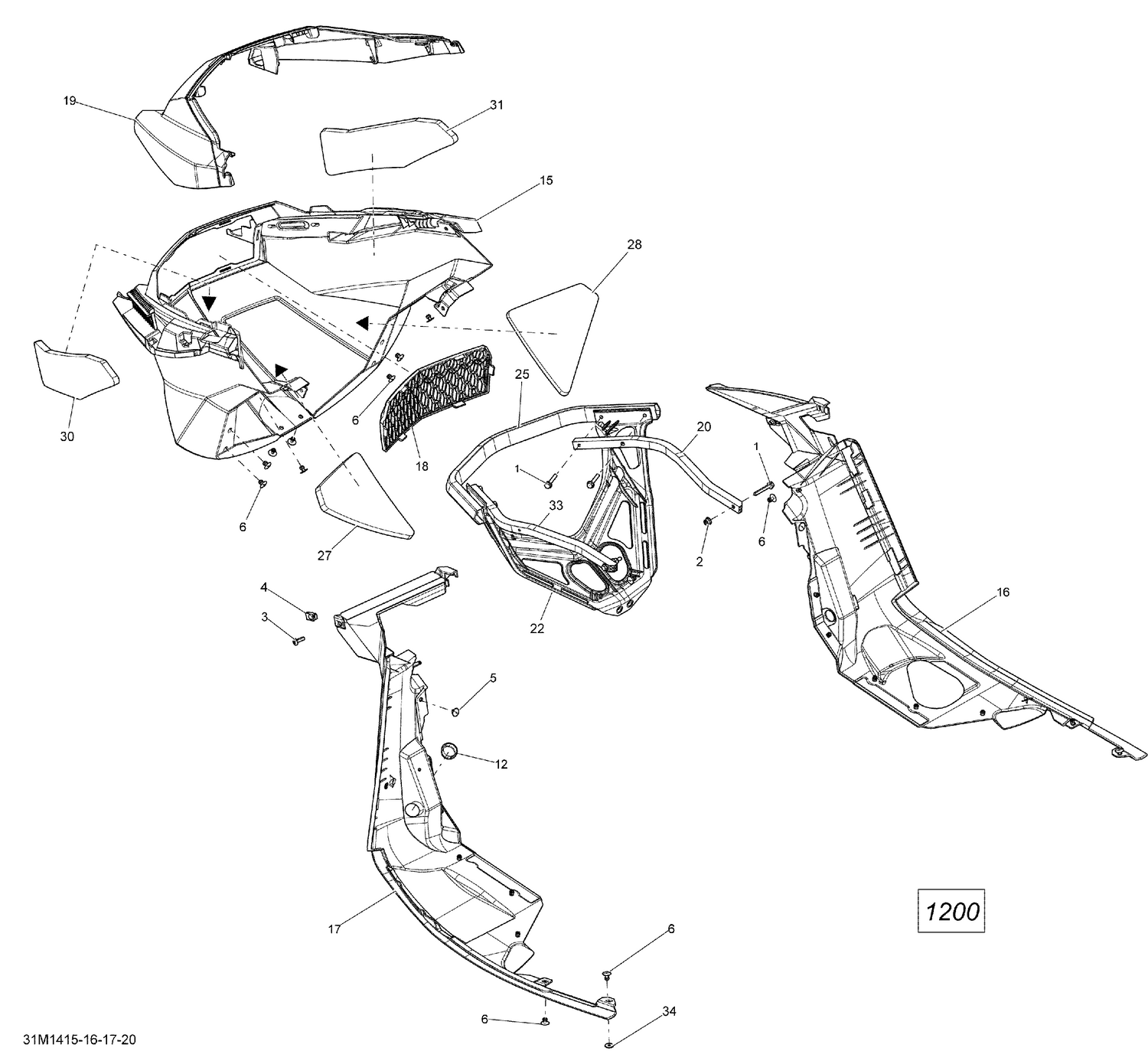

09- Bottom Pan
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207664044 | Hex. Flange Screw M6 X 40 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 4 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 5 | 293150103 | Pop Rivet 3/16" |
| 6 | 293150104 | Pop Rivet 3/16" |
| 12 | 414916600 | Black, Nylon Cap |
| 15 | 502006873 | Deep Black Front Bottom Pan |
| 16 | 502006877 | RH BOTTOM PAN - Call your local BRP dealership |
| 17 | 502006878 | LH BOTTOM PAN - Call your local BRP dealership |
| 18 | 502006887 | Botton Pan Grille |
| 19 | 502006898 | Black Bottom Pan Cap |
| 20 | 502006926 | RH Support |
| 22 | 502006938 | Bracket |
| 25 | 502006939 | Black Bumper |
| 30 | 502007219 | LH UPPER HULL FOAM - Call your local BRP dealership |
| 31 | 502007217 | RH UPPER HULL FOAM - Call your local BRP dealership |
| 33 | 502007357 | LH Support |
