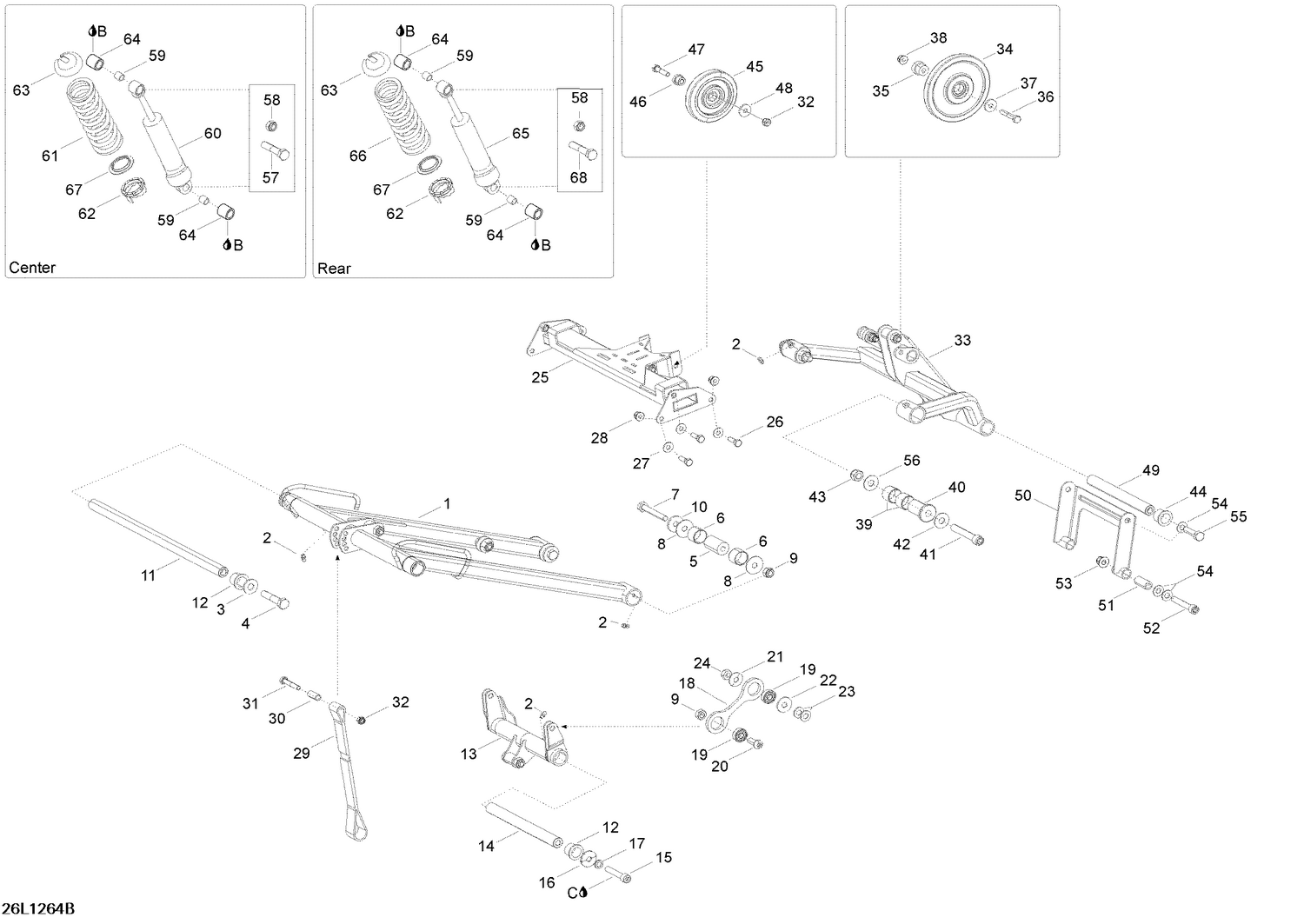

08- Rear Suspension
Parts (71)
| Ref | Part Number | Description |
|---|---|---|
| A | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| B | 293800005 | Loctite 271 red |
| Not | Available | As Spare Part - Shock Ass'y, Center |
| 1 | 503192557 | Front Arm |
| 2 | 408200700 | Grease Fitting |
| 3 | 250200005 | Washer Spring Conical |
| 4 | 40243 | Screw Hex M12 x 60 |
| 5 | 605354157 | Shaft Lower Short |
| 6 | 31065 | Bushing |
| 7 | 40021 | Screw Hex 10 x 70 |
| 8 | 605355801 | Washer |
| 9 | 232500416 | Elastic Stop Nut M10 |
| 10 | 503183300 | Washer |
| 11 | 503192046 | Shaft Upper |
| 12 | 31024 | Bearing |
| 13 | 503192518 | Swing Weld |
| 14 | 605355800 | Shaft Front Lower |
| 15 | 205505547 | Screw Socket |
| 16 | 512056700 | Washer Lock |
| 17 | 20068 | Lock Washer D10 (NORD-LOCK) |
| 18 | 605254159 | Bar |
| 19 | 605631003 | Bearing 6000-2RS1 |
| 20 | 205402546 | Socket Screw BN.HD.ISO.7380 |
| 21 | 25004 | Cup Spring |
| 22 | 234002600 | Flat Washer 10 mm, Stainless |
| 23 | 234001410 | Flat Washer 10 mm |
| 24 | 233401414 | Lock Spring Nut M10 |
| 25 | 503192566 | Middle Beam |
| 26 | 207182544 | Screw Hex Cap |
| 27 | 605620002 | Washer |
| 28 | 233281414 | Hex. Flange Elastic Nut M8 |
| 29 | 605355116 | Limiter Strap |
| 30 | 605455335 | Sleeve |
| 31 | 207084544 | Hex. Screw M8 X 45 |
| 32 | 232581414 | Hex. Elastic Stop Nut M8 |
| 33 | 503192524 | Rear Arm Weld |
| 34 | 503192675 | Idler Wheel 133 mm |
| 35 | 605454461 | Sleeve |
| 36 | 207084544 | Hex. Screw M8 X 45 |
| 37 | 20077 | M8 Washer |
| 38 | 233281414 | Hex. Flange Elastic Nut M8 |
| 39 | 31065 | Bushing |
| 40 | 605354157 | Bushing |
| 41 | 205006544 | Screw Socket |
| 42 | 234002410 | Flat Washer 10 mm |
| 43 | 232500416 | Elastic Stop Nut M10 |
| 44 | 31024 | Bearing |
| 45 | 572043500 | Idler Wheel |
| 46 | 605454167 | Sleeve |
| 47 | 207083544 | Hex. Screw M8 X 35 |
| 48 | 20077 | M8 Washer |
| 49 | 605355118 | Shaft |
| 50 | 503192571 | Rear Swing |
| 51 | 503192341 | Rear Swing Shaft |
| 52 | 205006044 | Screw Socket |
| 53 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 54 | 234001410 | Flat Washer 10 mm |
| 55 | 207204044 | Hex Cap Screw Din.931 S.grip |
| 56 | 605355801 | Washer |
| 57 | 207004544 | Hex. Screw M10 X 45 |
| 58 | 232500416 | Elastic Stop Nut M10 |
| 59 | 5446652 | Bushing |
| 60 | 503192322 | Shock |
| 61 | 503192431 | Spring |
| 62 | 230078 | Adjusting Cam |
| 63 | 230076 | Spring Stopper |
| 64 | 31094 | Cushion |
| 65 | 503192324 | Shock |
| 66 | 605625009 | Spring |
| 67 | 230049 | Spring Guide |
| 68 | 205504544 | Socket Screw |
