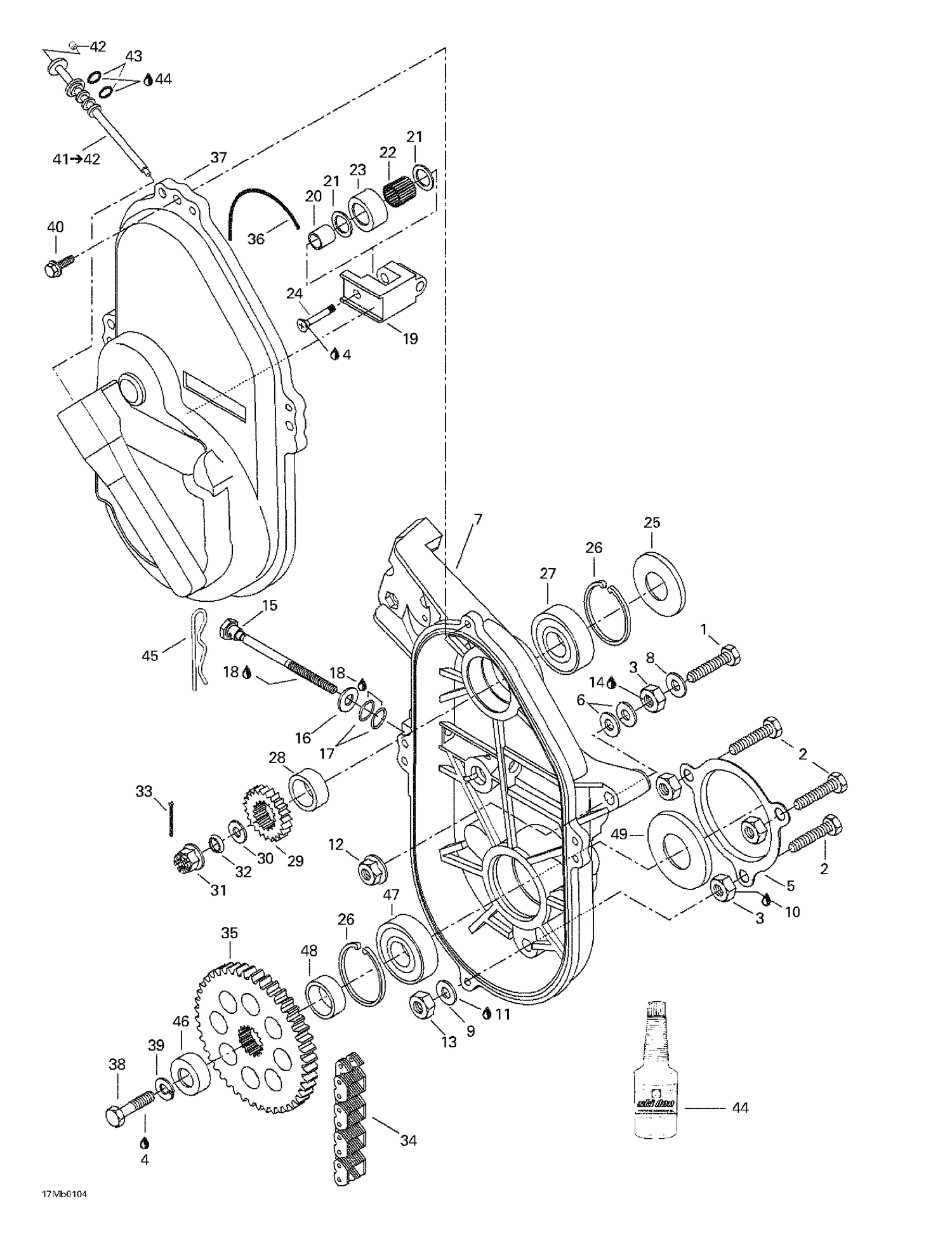

05- Chaincase
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207107044 | Hex. Screw M10 x 70 |
| 2 | 207104544 | Hex. Screw M10 x 45 |
| 3 | 504083800 | Spacer |
| 4 | 293800005 | Loctite 271, 10 ml |
| 5 | 501022100 | Protector |
| 6 | 504073700 | WASHER - Call your local BRP dealership |
| 7 | 504151786 | Chaincase |
| 8 | 503183800 | Washer |
| 9 | 234001460 | Copper Flat Washer 10 mm |
| 10 | 293800023 | LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 11 | 219704462 | ADHESIVE LOCTITE 515 50ML - Call your local BRP dealership |
| 12 | 233201414 | Hex. Flange Elastic Nut M10 |
| 13 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 14 | 293800060 | Loctite 243, 10 ml |
| 15 | 732601311 | ADJUSTING SCREW - Call your local BRP dealership |
| 16 | 234001410 | Flat Washer 10 mm |
| 17 | 414484400 | O-Ring |
| 18 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 19 | 504081000 | MACHINED TENSIONER - Call your local BRP dealership |
| 20 | 504080200 | SPACER - Call your local BRP dealership |
| 21 | 504080300 | WASHER - Call your local BRP dealership |
| 22 | 405403000 | NEEDLE BEARING - Call your local BRP dealership |
| 23 | 414531300 | ROLLER - Call your local BRP dealership |
| 24 | 732601144 | SCREW - Call your local BRP dealership |
| 25 | 414882800 | OIL SEAL - Call your local BRP dealership |
| 26 | 371901700 | CIRCLIP - Call your local BRP dealership |
| 27 | 293350115 | Ball Bearing This part replaces 504152006. |
| 28 | 504093400 | Shim |
| 29 | 504070100 | Sprocket, 18 Teeth |
| 30 | 504087100 | Washer |
| 31 | 232210414 | HEX. CASTELLATED NUT M16 - Call your local BRP dealership |
| 32 | 417000900 | Spring Washer |
| 33 | 371801300 | Cotter Pin |
| 34 | 504151882 | DRIVING CHAIN 70 M - Call your local BRP dealership |
| 35 | 504070900 | Sprocket 44Th |
| 36 | 414362300 | O-Ring |
| 37 | 080037100 | CASTING COVER - Call your local BRP dealership |
| 38 | 207102544 | Hex. Screw M10 X 25 |
| 39 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 40 | 210263050 | Hex. Flange Screw M6 X 30 This part replaces 210263080. |
| 42 | 206540490 | SCREW-SET SOCKET DIN.916 - Call your local BRP dealership |
| 43 | 414969400 | O-RING - Call your local BRP dealership |
| 45 | 414575600 | Hair Pin |
| 46 | 501026200 | CAP - Call your local BRP dealership |
| 47 | 293350115 | Ball Bearing This part replaces 504152006. |
| 48 | 504146400 | Spacer |
