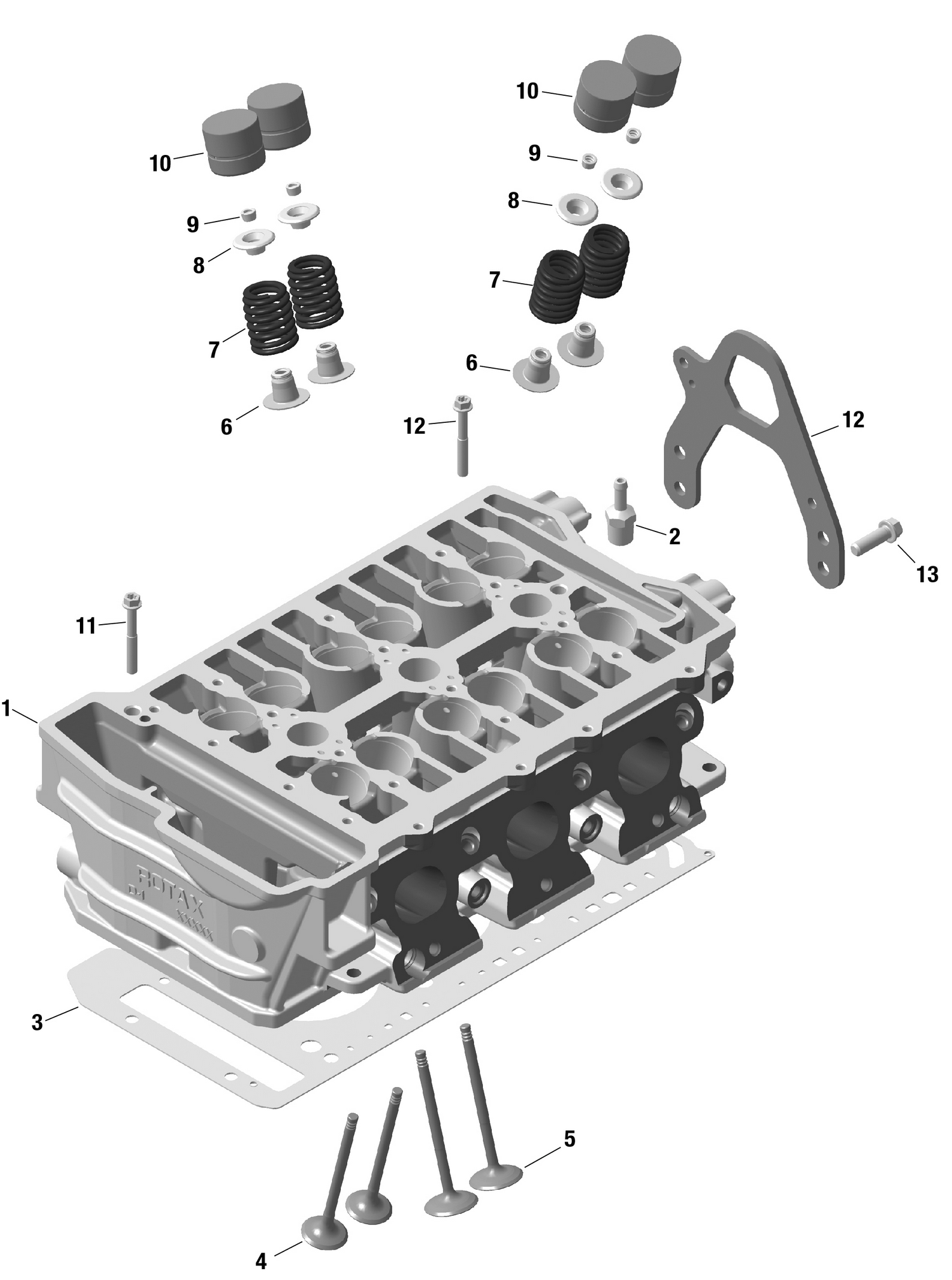

01- ROTAX - Cylinder Head
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420924726 | Hose Nipple |
| 3 | 420431821 | Cylinder Head Gasket |
| 4 | 420855143 | Exhaust Valve 26 MM |
| 5 | 420855136 | Intake Valve 30 MM |
| 6 | 420630202 | Valve Steam Seal |
| 7 | 420939541 | Valve Spring |
| 8 | 420855153 | Valve Spring Retainer |
| 9 | 420253645 | Valve Cotter |
| 10 | 420855168 | Valve Lifter Bucket D31 |
| 11 | 420440324 | Torx Flange Screw M6 X 45 |
| 12 | 420227116 | Retaining Plate |
