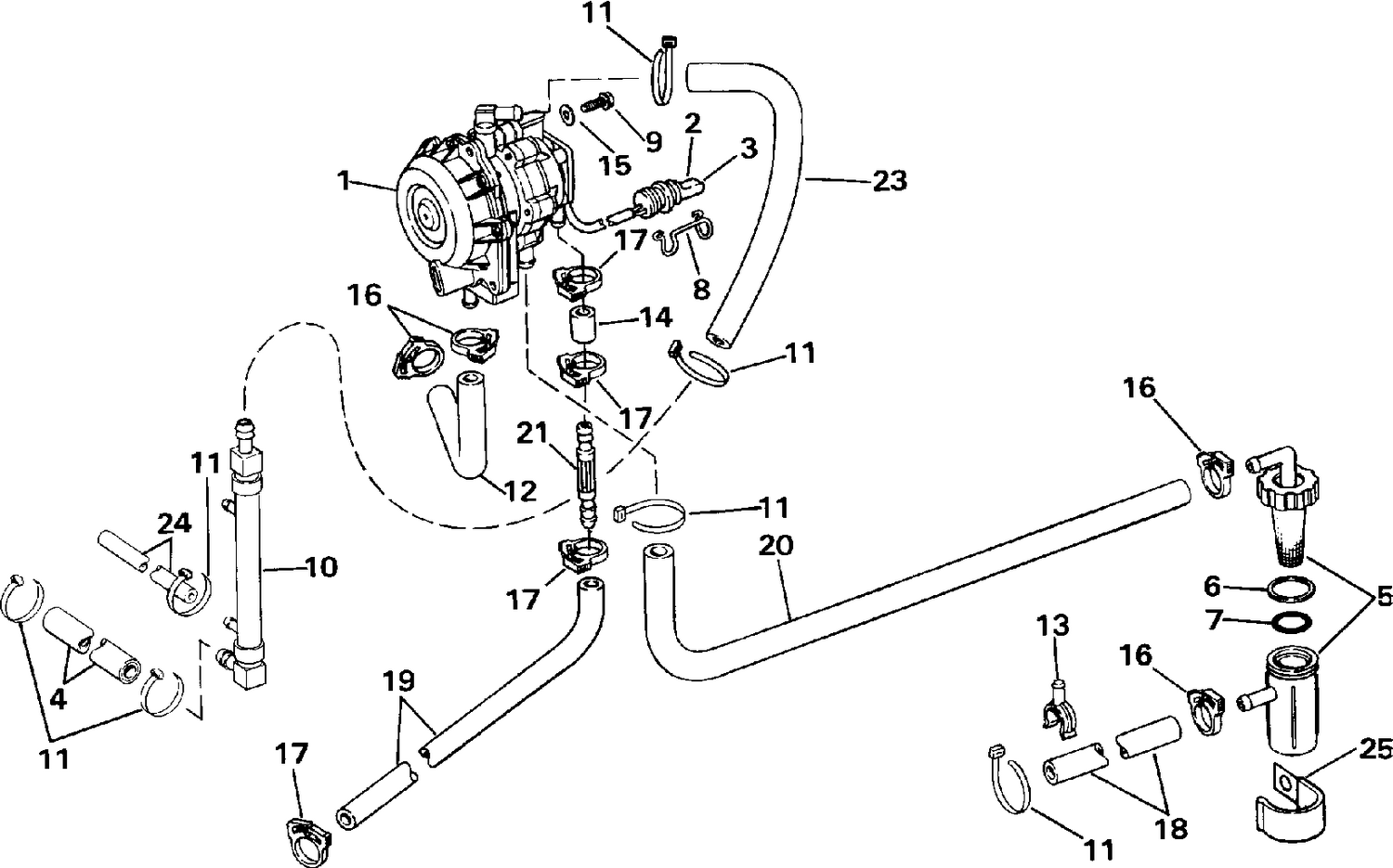

| Ref | Part Number | Description |
|---|
| 1 |
5007423 |
Kit Ay This part replaces 0174565. |
| 4 |
HOSE, |
Fuel manifold to carb. 102mm (4") |
| 5 |
0397715 |
FILTER, Fuel |
| 8 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 11 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 12 |
0332851 |
FLEXIBLE D’IMPULSIONS |
| 13 |
0329661 |
SUPPORT/BOUCHON |
| 14 |
HOSE, |
Sight tube to pump 38mm (1-1/2") |
| 17 |
0322654 |
PINCE RAPIDE, flexible d'huile |
| 18 |
HOSE, |
Connector to filter 254mm (10") |
| 19 |
HOSE, |
Fuel connector to sight tube 356mm (14" |
| 20 |
HOSE, |
Filter to fuel pump 533mm (21") |
| 21 |
0331623 |
FILTER AND HOSE ASSY. |
| 23 |
0332851 |
FLEXIBLE D’IMPULSIONS |
| 24 |
HOSE, |
Manifold to primer 381mm (15") |
