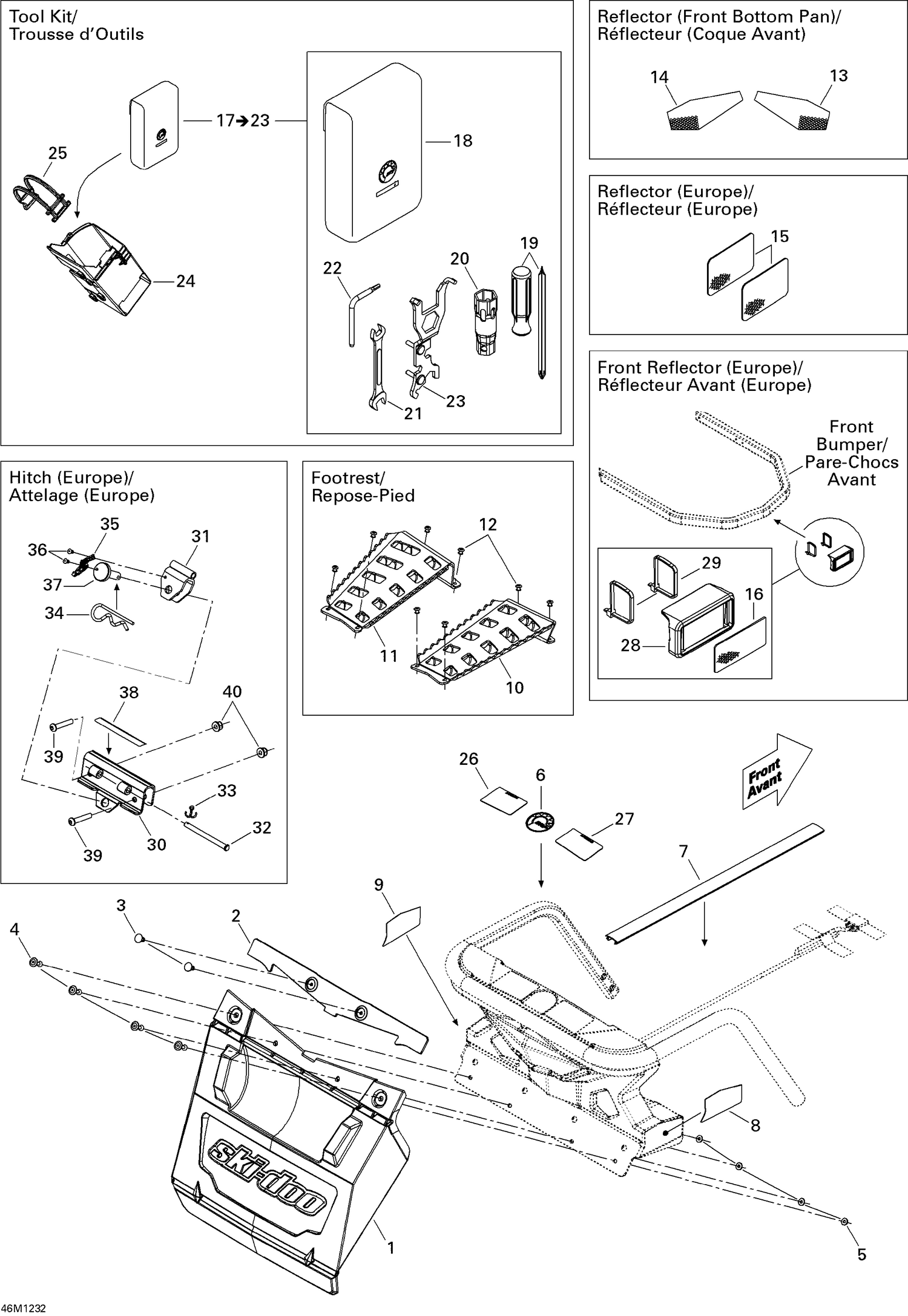

09- Utilities
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000659 | Snow Guard |
| 2 | 520000953 | ESTHETIC PLATE - Call your local BRP dealership |
| 3 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 4 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 5 | 517124300 | Washer |
| 6 | 219903305 | BRP Logo 48 mm |
| 7 | 520000829 | Radiator Trim |
| 10 | 520000887 | RH Footrest |
| 11 | 520000888 | LH Footrest |
| 12 | 390402200 | Pop Rivet 3/16" |
| 13 | 520000718 | Yellow, RH Front Reflector |
| 14 | 520000719 | Yellow, LH Front Reflector |
| 18 | Not | Available As Spare Part - Tool Bag |
| 19 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 20 | Not | Available As Spare Part - Socket Wrench, 16/21 mm |
| 21 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 22 | 520001142 | Spacing Tool |
| 23 | 520000988 | WRENCH SUSPENSION - Call your local BRP dealership |
| 24 | 520000894 | Tool Kit Rack |
| 25 | 520000528 | Latch |
| 26 | 516005043 | LH WARNING DECAL, SECURITY - Call your local BRP dealership |
| 27 | 516005044 | RH Warning Decal, Security |
