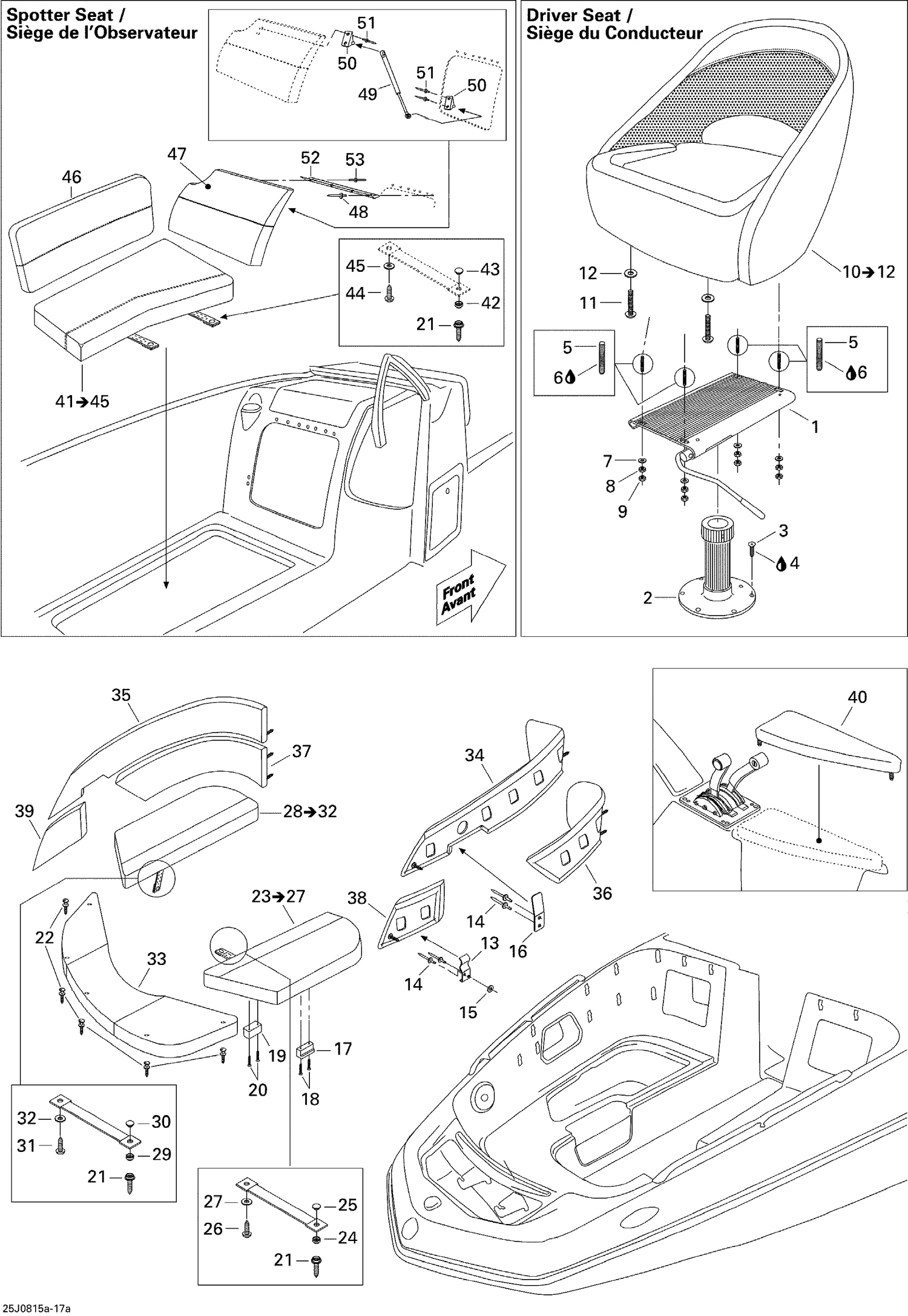

| Ref | Part Number | Description |
|---|
| 1 |
204613742 |
SLIDE AND SWIVEL SEAT BASE - Call your local BRP dealership |
| 2 |
269001903 |
SEAT PEDESTAL - Call your local BRP dealership This part replaces 204614207. |
| 3 |
204100201 |
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership |
| 4 |
293800060 |
Loctite 243, 10 ml |
| 5 |
204613795 |
SEAT STUD 1/4-20 X 2 1/2 - Call your local BRP dealership |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
211200025 |
Lock Washer 1/4” |
| 8 |
234082600 |
Flat Washer 8 mm, Stainless |
| 9 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 11 |
204100125 |
Pan Head Phillips Screw 1/4-20 |
| 12 |
234082600 |
Flat Washer 8 mm, Stainless |
| 13 |
204613998 |
SEAT SUPPORT - Call your local BRP dealership |
| 14 |
293150043 |
Pop Rivet 3/16" |
| 15 |
234061600 |
Stainless Flat Washer M6 |
| 16 |
204611531 |
RETAINING CLIP - Call your local BRP dealership |
| 17 |
204611940 |
SEAT LATCH - Call your local BRP dealership |
| 18 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
| 19 |
204611805 |
LATCH - Call your local BRP dealership |
| 20 |
204100081 |
SCREW #8 X 1-1/4? - Call your local BRP dealership |
| 21 |
202000159 |
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership |
| 22 |
293730021 |
Dart |
| 24 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 25 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 26 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 27 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 29 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 30 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 31 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 32 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 33 |
204613783 |
Front Cushion Ass'y |
| 34 |
204613777 |
FRONT UPPER SIDE BACKREST, PORT SIDE - Call your local BRP dealership |
| 35 |
204613775 |
FRONT UPPER SIDE BACKREST, STARBOARD - Call your local BRP dealership |
| 36 |
204613970 |
Front Lower Side Backrest, Port Side |
| 37 |
204613968 |
Front Lower Side Backrest, Starboard |
| 38 |
204613971 |
Front Side Backrest, Port Side |
| 39 |
204613969 |
Front Side Backrest, Starboard |
| 40 |
204613785 |
Elbow Rest Cushion Ass'y, Starboard |
| 42 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 43 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 44 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 45 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 46 |
204613771 |
Spotter Side Backrest |
| 47 |
204614418 |
Storage Backrest |
| 48 |
293150043 |
Pop Rivet 3/16" |
| 49 |
204072218 |
GAS SHOCK - Call your local BRP dealership |
| 50 |
204073074 |
Shock Bracket |
| 51 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 52 |
204613980 |
Hinge |
