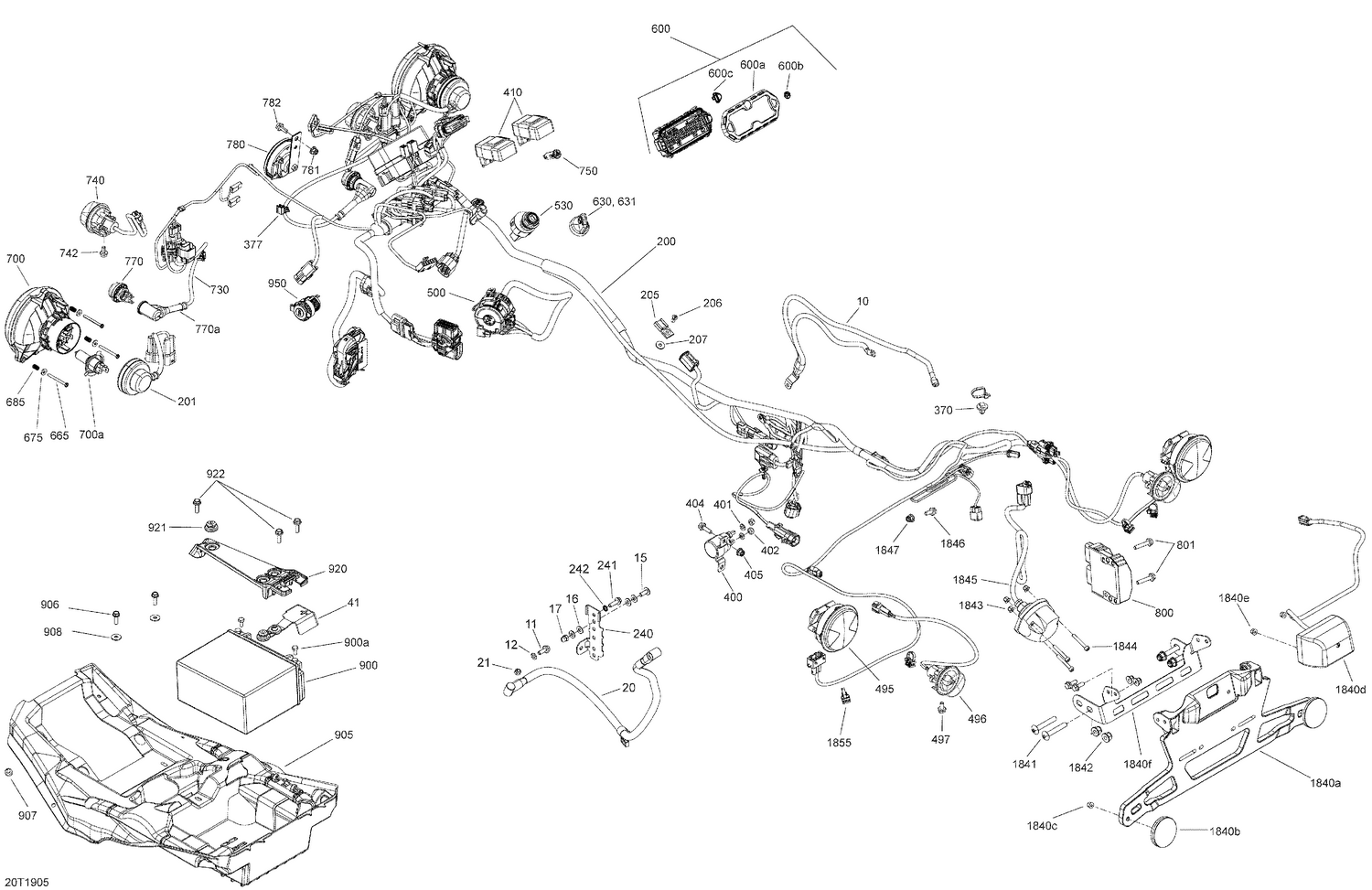

10- Electrical - 570 EFI - Package PRO
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710004382 | Ground Cable |
| 11 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 12 | 234161601 | Lock Washer Helical M6 |
| 15 | 250000717 | Torx Head Screw M6 X 16 |
| 16 | 224061121 | Flat Washer |
| 17 | 232361493 | Domed Nut M6 |
| 20 | 710004377 | Positive Cable |
| 21 | 232561414 | Elastic Stop Nut M6 |
| 41 | 710006729 | Battery Cable Cap This part replaces 710002569. |
| 200 | 710006170 | No ABS Cable |
| 201 | 710005780 | Light Cable |
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 240 | 710004118 | Connector Bracket |
| 241 | 210262040 | Hex. Flange Screw M6 X 20 |
| 242 | 234461608 | External Serrated Lock Washer 6 mm |
| 370 | 293730040 | Mount Dart |
| 377 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 400 | 710007777 | Starter Relay This part replaces 710001364. |
| 401 | 234161601 | Lock Washer Helical M6 |
| 402 | 232561414 | Elastic Stop Nut M6 |
| 404 | 207662054 | Hex. Flange Screw M6 X 20 |
| 405 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 410 | 710003239 | Flasher Unit |
| 495 | 710001645 | Tail Light Ass'y |
| 496 | 710002964 | Flasher |
| 497 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 500 | 710006211 | LH Multi Fonction Control |
| 530 | 710007865 | Switch_Ignition This part replaces 710004570. |
| 600 | 710006216 | Speedometer |
| 631 | 710002183 | Grey, Electronic Key |
| 665 | 250000718 | Hex. Screw K40 X 45 |
| 675 | 517225900 | Flat Washer |
| 685 | 517168600 | Spring |
| 700a | 710000871 | Bulb, 12V 35/35W |
| 740 | 710002964 | Flasher |
| 742 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 750 | 710003909 | Pilot Lamp |
| 770a | 710003269 | Cap Protector |
| 780 | 710004791 | Horn |
| 781 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 782 | 207661644 | Hex. Flange Screw M6 X 16 |
| 800 | 710010539 | Voltage Regulator This part replaces 710005569. |
| 801 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 900a | 250000282 | Battery Bolt Kit |
| 905 | 710008370 | Battery Support This part replaces 710005528. |
| 906 | 210262050 | Hexagonal Head Screw |
| 907 | 293830005 | Rubber Bumper |
| 908 | 234062670 | Stainless Steel Flat Washer |
| 920 | 710009129 | Retaining Plate This part replaces 710002404. |
| 921 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 922 | 207662054 | Hex. Flange Screw M6 X 20 |
| 950 | 710001248 | DC Outlet |
| 1840a | 708300434 | Plate Support |
| 1840b | 705011221 | Red Reflector |
| 1840c | 710005563 | License Plate Light |
| 1840d | 710009520 | License Plate Support This part replaces 710005812. |
| 1840e | 207661644 | Hex. Flange Screw M6 X 16 |
| 1840f | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1841 | 250000761 | Torx Truss Screw M8 X 50 This part replaces 250000298. |
| 1842 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1843 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 1844 | 205053588 | Socket Head Screw M5 X 35 |
| 1845 | 710005846 | Trailer Harness |
| 1846 | 207661644 | Hex. Flange Screw M6 X 16 |
| 1847 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
