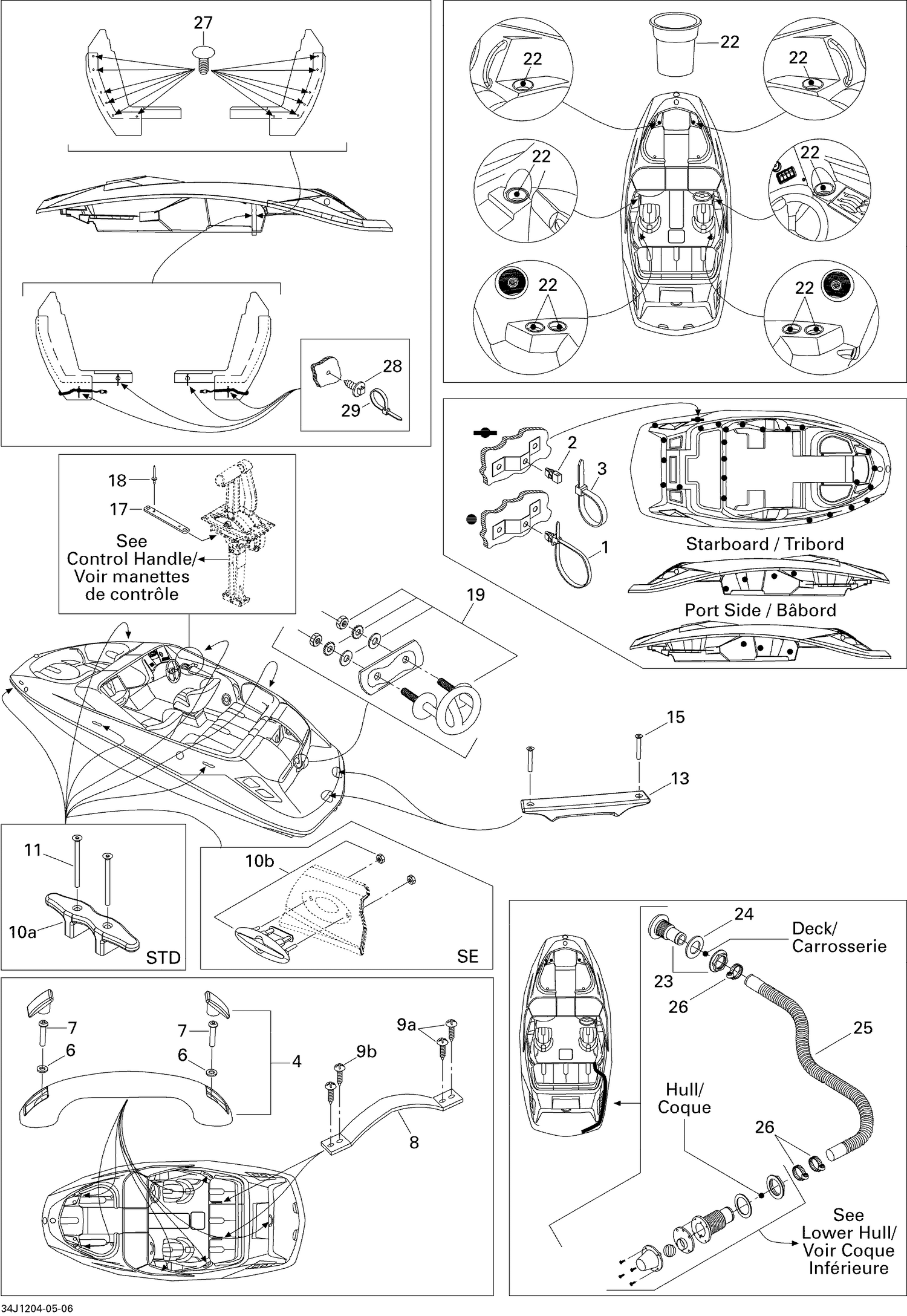

| Ref | Part Number | Description |
|---|
| 1 |
204130098 |
TIE RAP WITH DART - Call your local BRP dealership |
| 2 |
204130099 |
DART, BLACK - Call your local BRP dealership |
| 3 |
293750008 |
Tie Wrap 368 mm |
| 4 |
204073190 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 6 |
234061600 |
Stainless Flat Washer M6 |
| 7 |
205963060 |
SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership |
| 8 |
204073052 |
Grip Handle |
| 9a |
204100058 |
Phillips Tapping Screw |
| 9b |
204100256 |
SCREW-TRUSS HD.PH.#8 X 1(MACHINED) - Call your local BRP dealership |
| 10a |
XXX |
Not Available As Spare Parts |
| 11 |
XXX |
Not Available As Spare Parts |
| 13 |
204070194 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 15 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 17 |
293450061 |
SHIFTER INSERT - Call your local BRP dealership |
| 18 |
293150013 |
Pop Rivet 3/16" |
| 19 |
204070206 |
Ski Tow Hook |
| 23 |
293710060 |
FITTING - Call your local BRP dealership |
| 24 |
292800106 |
GASKET - Call your local BRP dealership |
| 25 |
204070560 |
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership |
| 26 |
293650074 |
Norma Clamp |
| 27 |
293730014 |
Black Dart |
| 28 |
293730040 |
Mount Dart |
