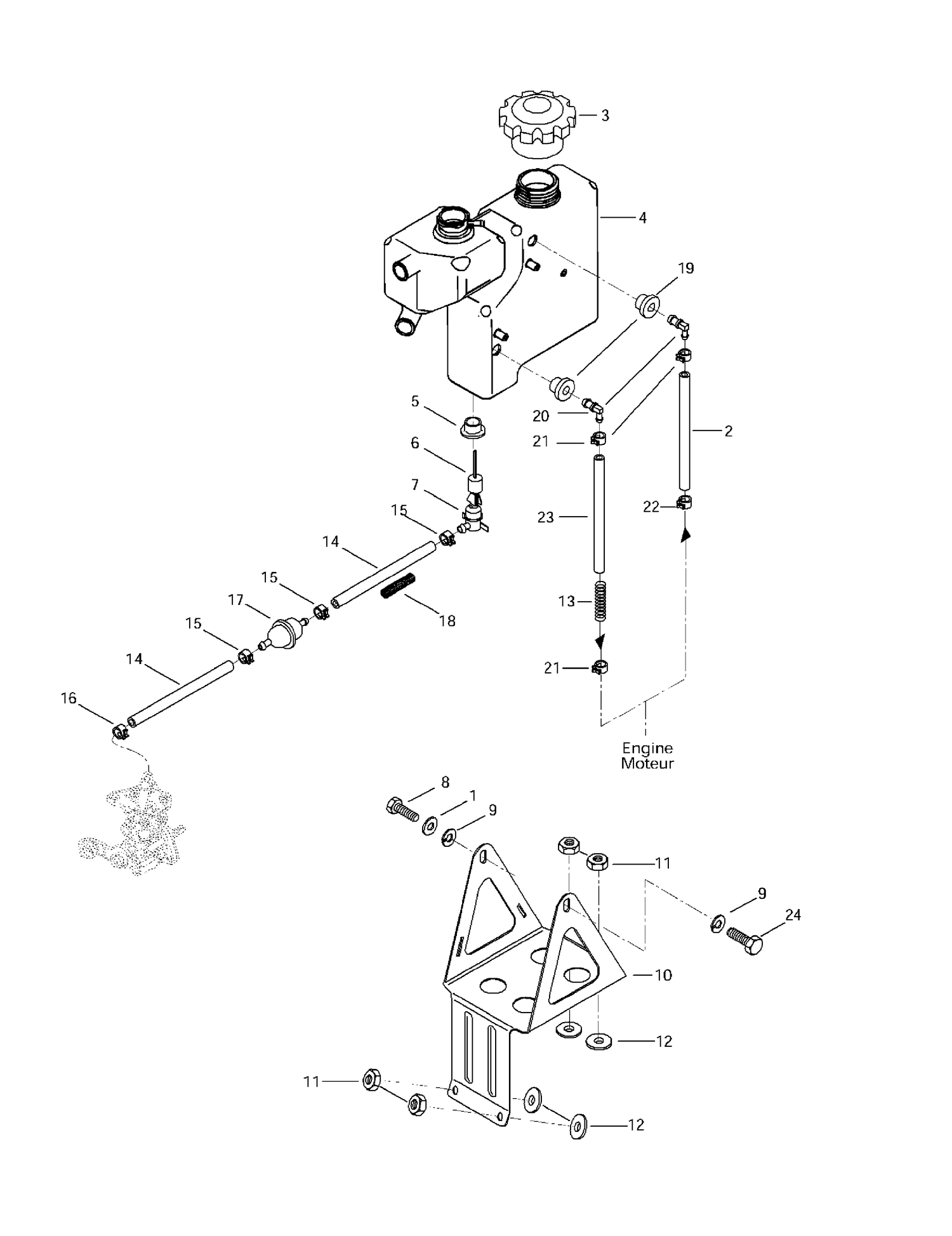

| Ref | Part Number | Description |
|---|
| 1 |
224061121 |
Flat Washer |
| 2 |
414644800 |
OIL LINE - Call your local BRP dealership This part replaces 415042200. |
| 3 |
519000044 |
CAP - Call your local BRP dealership This part replaces 572071000. |
| 4 |
572076900 |
Coolant Tank |
| 5 |
570023000 |
Insulating Ring |
| 6 |
414681900 |
Float |
| 7 |
414681800 |
LEVEL SWITCH - Call your local BRP dealership |
| 8 |
207161244 |
HEX. SCREW M6 X 12 - Call your local BRP dealership This part replaces 222061265. |
| 9 |
234161471 |
Lock Washer M6, Black This part replaces 224761110. |
| 10 |
517278900 |
Oil Reservoir Support |
| 11 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 12 |
414454400 |
Rubber Spacer |
| 13 |
415044100 |
Spring |
| 14 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 15 |
414415200 |
Spring Clamp |
| 16 |
414420700 |
Spring Clamp |
| 17 |
414536500 |
Filter |
| 18 |
414940300 |
SPRING_COMPRESSION - Call your local BRP dealership |
| 19 |
707800347 |
Grommet This part replaces 570273900. |
| 20 |
414523600 |
Elbow Fitting |
| 21 |
414655700 |
Spring Clamp |
| 22 |
408801100 |
SPRING CLIP - Call your local BRP dealership |
| 23 |
Not |
Available As Spare Part - Oil Line |
