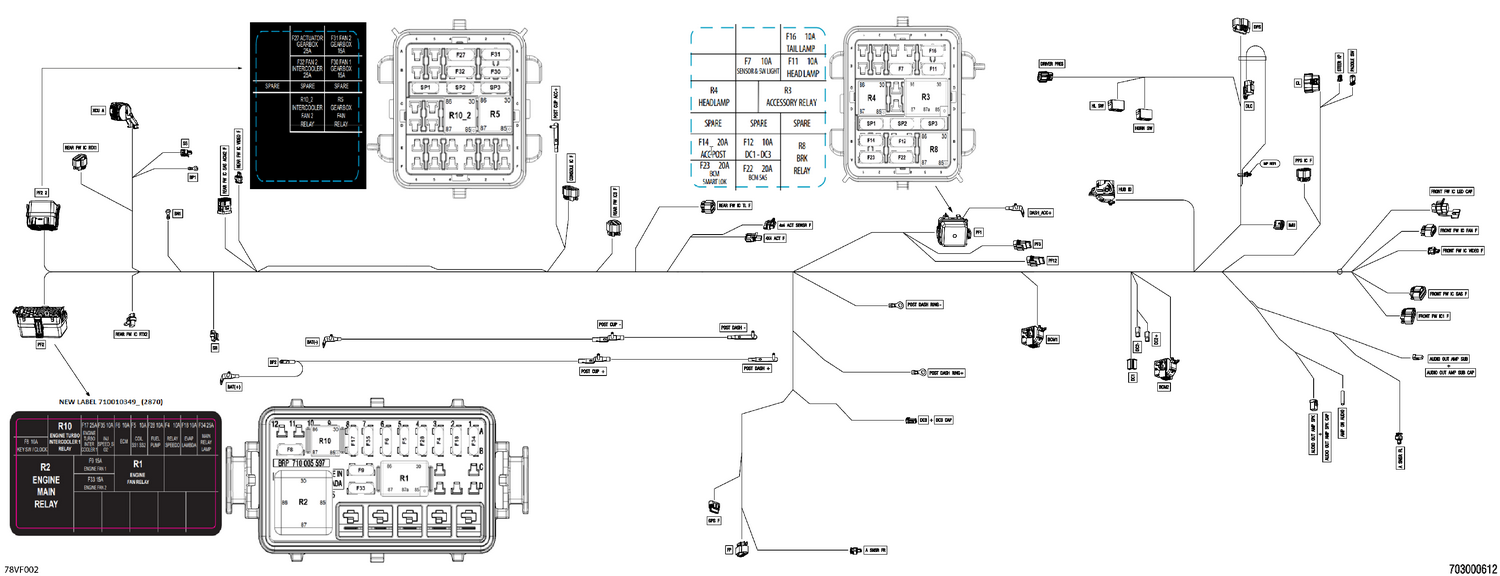

08- Electric - Main Harness - 710010711
Parts (83)
| Ref | Part Number | Description |
|---|---|---|
| A | SNSR | FL 710005880 Female Housing, 2 Circuits 710005880 |
| AMP | ON | AUDIO 278001007 Insulated Sheath 278001007 |
| AUDIO | OUT | AMP SPK 710007945 Female Connector 8 Cavities 710007945 |
| BN1 | 278001392 | Open Barrel Terminal |
| BP1 | 278001392 | Open Barrel Terminal |
| BP2 | 710007033 | Cap Battery Cable |
| CL | 278002860 | Sealing Cap |
| CL | 515178349 | Female Terminal 22 AWG |
| CL | 515179227 | Female Molex Connector 20 Cavities |
| CONSOLE | IC | F 710001226 Housing 710001226 |
| D2 | 409012700 | Diode |
| DC1 | 710005373 | Housing |
| DC1 | 710005518 | Terminal |
| DC3 | 515175231 | Female Terminal |
| DC3 | 515175658 | Female Housing, 2 Circuits |
| DLC | 710002705 | Lock |
| DLC | 710002706 | Female Housing 6 Circuits |
| DLC | 710005438 | Female Terminal |
| DLC | 710005439 | Female Terminal |
| DLC | 710010709 | Connector Cap |
| DPS | 278002186 | Wire Seal |
| DPS | 278002187 | Female Terminal |
| DPS | 710001222 | Lock |
| DPS | 710001873 | Terminal This part replaces 710001765. |
| DPS | 710002075 | Plug |
| DPS | 710003153 | Seal |
| DPS | 710004989 | Female Housing |
| DPS | 710005098 | Lock |
| FP | 278002185 | Male Housing, 4 Circuits |
| FP | 710001222 | Lock |
| FP | 710001869 | Terminal |
| FP | 710001873 | Terminal This part replaces 710001765. |
| FP | 710003153 | Seal |
| FP | 710006214 | Lock |
| FRONT | FW | IC FAN F 278002185 Male Housing, 4 Circuits 278002185 |
| HUB | ID | LT 710007617 Plug 710007617 |
| IMU | 710001118 | Wire Seal |
| IMU | 710003730 | Housing |
| IMU | 710008356 | Femal Terminal |
| IMU | 710010230 | Female Terminal |
| PF1 | 278000216 | Wire Seal |
| PF1 | 278000218 | Wire Seal |
| PF1 | 278001065 | Wire Seal |
| PF1 | 278002578 | Female Terminal |
| PF1 | 278003448 | Fuse Base Ass'y |
| PF1 | 278003553 | Fuse Cover |
| PF1 | 293300198 | Seal |
| PF1 | 515177177 | Female Terminal |
| PF1 | 710000048 | Wire Seal |
| PF1 | 710000918 | Female Terminal |
| PF1 | 710008308 | Fuses Decal |
| PF12 | 278001325 | Fuse Holder |
| PF12 | 710000113 | Female Terminal |
| PF2 | 2 | SP1 710000745 Little Fuse, 15 Ampere 710000745 |
| PF2 | 278000216 | Wire Seal |
| PF2 | 278000218 | Wire Seal |
| PF2 | 278001065 | Wire Seal |
| PF2 | 278002578 | Female Terminal |
| PF2 | 293300198 | Seal |
| PF2 | 710000048 | Wire Seal |
| PF2 | 710000890 | Female Terminal |
| PF2 | 710000918 | Female Terminal |
| PF2 | 710001631 | Cap |
| PF2 | 710005623 | Fusebox Ass'y |
| PF2 | 710007491 | Cover This part replaces 710004120. |
| PF2 | 710010349 | Fuses Decal |
| PF3 | 278001325 | Fuse Holder |
| PF3 | 710000113 | Female Terminal |
| POST | CUP | ACC+ 710008805 Terminal Eyelet 710008805 |
| POST | DASH | RING- 278001392 Open Barrel Terminal 278001392 |
| PPS | IC | F 710001951 Housing 710001951 |
| REAR | FW | IC RTX1 710001226 Housing 710001226 |
| SB | 278001482 | Seal |
| SB | 710001134 | Female Terminal |
| SB | 710002043 | Lock |
| SB | 710002177 | Housing |
| SS | 515177192 | Female Housing, 2 Circuits |
| SS | 710001152 | Lock |
| SS | 710001163 | Wire Seal |
| SS | 710001164 | Female Terminal |
| XCU | A | LT 515178666 Terminal 515178666 |
| 4X4 | ACT | SENSR F 278003442 Female Terminal Housing, 3 Circuits 278003442 |
| 300 | 710010711 | Main Wiring Harness |
