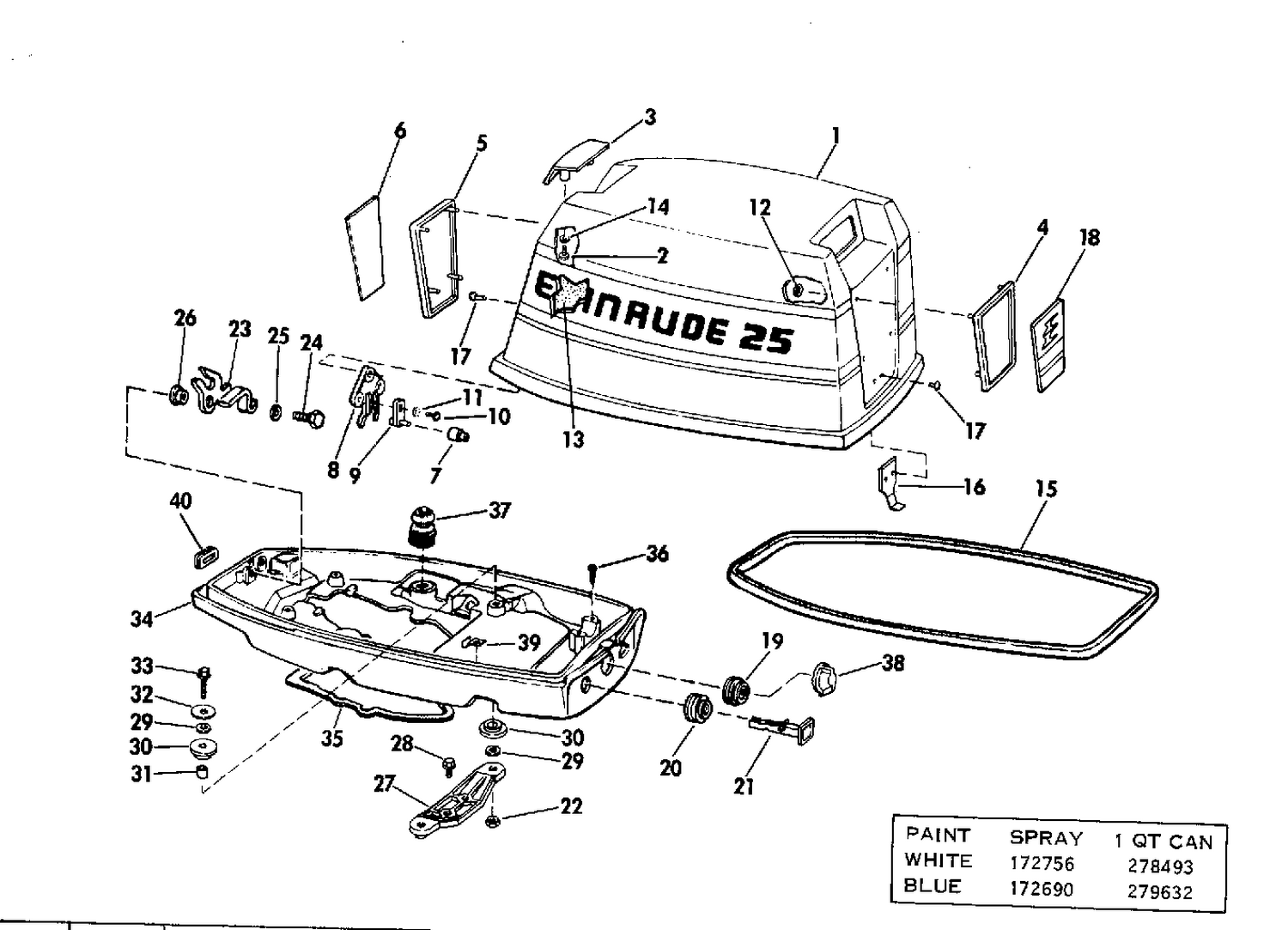

| Ref | Part Number | Description |
|---|
| 1 |
0279736 |
MOTOR COVER ASSY. |
| 2 |
0312299 |
VIS, serre-câble |
| 3 |
0205888 |
TILT HANDLE |
| 5 |
0207864 |
APPLIQUE, Rear This part replaces 0206661. |
| 6 |
0207341 |
PLATE,Applique,rear |
| 9 |
0384332 |
LIDE & PIN |
| 10 |
0302468 |
SCREW, Ground lead |
| 13 |
0318604 |
SOUND BLANKET |
| 14 |
0306407 |
LOCCKWASHER,Cover latch |
| 15 |
0207072 |
SEAL, Motor cover |
| 18 |
0207340 |
PLATE,Applique,front |
| 19 |
0204456 |
GORMMET, Low speed knob |
| 20 |
0204457 |
GOMMET, Choke knob |
| 21 |
0206674 |
KNOB, Choke |
| 23 |
0316347 |
LEVER, Cover latch |
| 24 |
0302592 |
SCREW |
| 25 |
0204445 |
BOW WASHER |
| 26 |
0204444 |
BUSHING |
| 27 |
0325868 |
BRACKET, Cove to exh. hsg., front This part replaces 0316345. |
| 29 |
0329241 |
RONDELLE This part replaces 0306482. |
| 30 |
0316354 |
ENGINE COVER SUPPORT GROMMET This part replaces 0302405. |
| 31 |
0302406 |
SLEEVE |
| 33 |
0316476 |
SCREW |
| 34 |
0321460 |
MOTOR COVER, Lower This part replaces 0317308. |
| 35 |
0308292 |
SEAL |
| 36 |
0307907 |
SCREW |
| 37 |
0304019 |
CROMMET, CONTROL SHAFT |
| 38 |
0205231 |
KNOB, Control shaft |
| 39 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 40 |
0316346 |
GROMMET, Latch lever |
| 0279811 |
0279811 |
DECAL SET - Manual |
| 0279812 |
0279812 |
DECAL SET -Electric |
