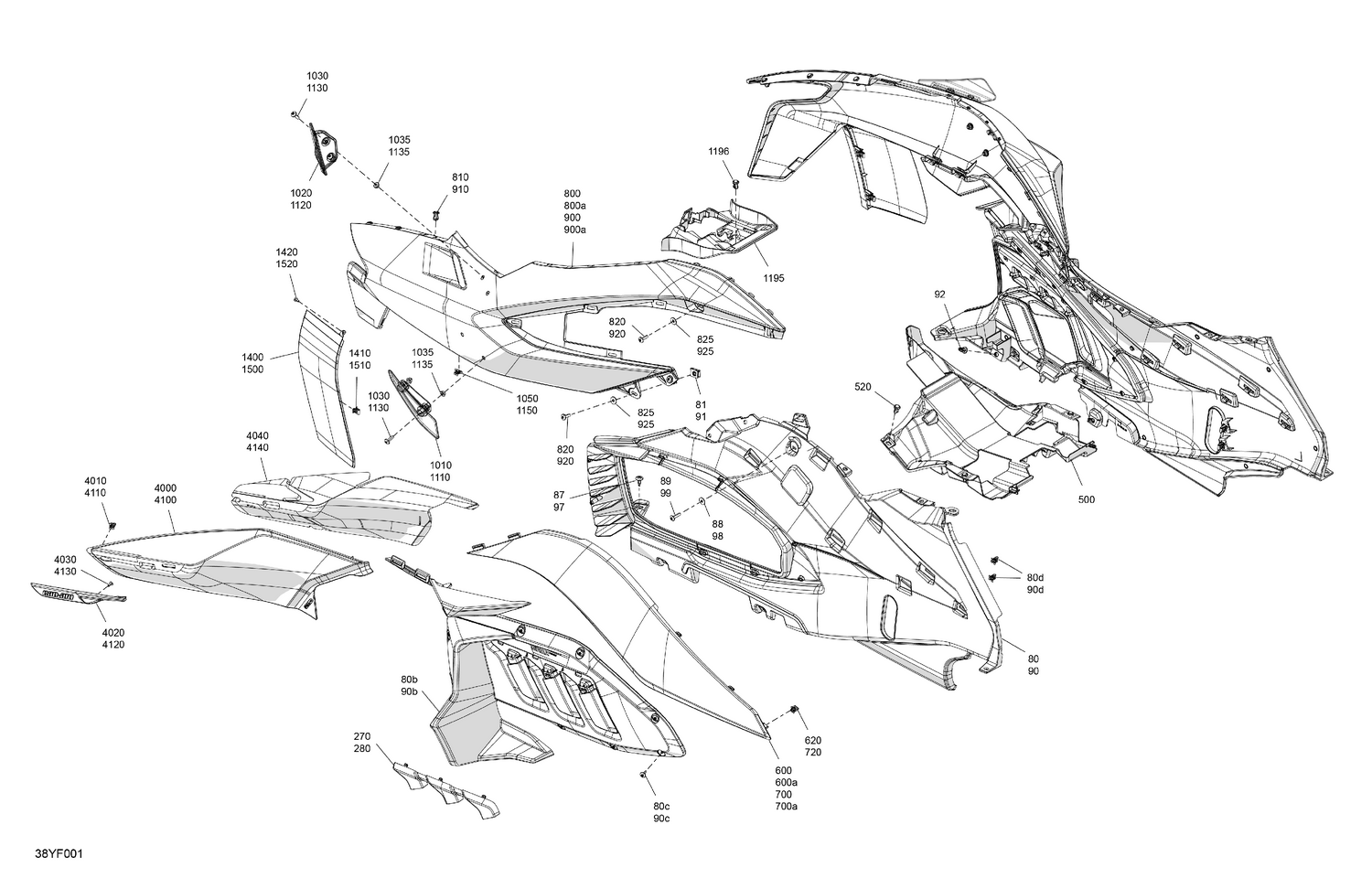

07- Body - System - Built September 2025 and Up
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 80b | 705016438 | LH Deflector |
| 80c | 250001105 | Screw Type K-40 M4 X 16 |
| 80d | 517302785 | Edge Clip |
| 81 | 250100208 | Panel Nut M6 X 1.0 |
| 87 | 414745900 | Tuflock Phillips Plastic Screw |
| 88 | 234062670 | Stainless Steel Flat Washer |
| 89 | 250000807 | Torx Truss Screw M6 X 25 |
| 90b | 705016439 | RH Deflector |
| 90c | 250001105 | Screw Type K-40 M4 X 16 |
| 90d | 517302785 | Edge Clip |
| 91 | 250100208 | Panel Nut M6 X 1.0 |
| 92 | 293150230 | Tuflok Plastic Rivet |
| 97 | 414745900 | Tuflock Phillips Plastic Screw |
| 98 | 234062670 | Stainless Steel Flat Washer |
| 99 | 250000705 | Torx Truss Screw M6 X 20 |
| 270 | 708305108 | Sterling Silver, RH Engine Trim |
| 280 | 708305107 | Sterling Silver, LH Engine Trim |
| 500 | 705019450 | Tank Guard |
| 520 | 293150230 | Tuflok Plastic Rivet |
| 600a | 705014100 | Bare, LH Upper Fairing |
| 620 | 517302785 | Edge Clip |
| 700a | 705014101 | RH Upper Fairing |
| 720 | 517302785 | Edge Clip |
| 800a | 708200870 | Bare, LH Front Fairing |
| 810 | 293150230 | Tuflok Plastic Rivet |
| 820 | 250000705 | Torx Truss Screw M6 X 20 |
| 825 | 234062670 | Stainless Steel Flat Washer |
| 900a | 708200871 | Bare, RH Front Fairing |
| 910 | 293150230 | Tuflok Plastic Rivet |
| 920 | 250000705 | Torx Truss Screw M6 X 20 |
| 925 | 234062670 | Stainless Steel Flat Washer |
| 1010 | 705015953 | LH Lower Air Deflector |
| 1020 | 705014710 | LH Upper Air Deflector |
| 1030 | 250000705 | Torx Truss Screw M6 X 20 |
| 1035 | 233161414 | Hex. Flange Nut M6 |
| 1050 | 517302785 | Edge Clip |
| 1110 | 705015954 | RH Lower Air Deflector |
| 1120 | 705014711 | RH Upper Air Deflector |
| 1130 | 250000705 | Torx Truss Screw M6 X 20 |
| 1135 | 233161414 | Hex. Flange Nut M6 |
| 1150 | 517302785 | Edge Clip |
| 1195 | 705020033 | Heat Shield |
| 1196 | 293150230 | Tuflok Plastic Rivet |
| 1400 | 708201167 | LH Scoop In |
| 1410 | 517302785 | Edge Clip |
| 1420 | 250001131 | Torx Truss PT K40 x 12 |
| 1500 | 708201168 | RH Scoop In |
| 1510 | 517302785 | Edge Clip |
| 1520 | 250001131 | Torx Truss PT K40 x 12 |
| 4000 | 705013938 | Black, LH Access Cover |
| 4010 | 517302785 | Edge Clip |
| 4020 | 708304106 | Sterling Silver, LH Fairing Trim |
| 4030 | 250001131 | Torx Truss PT K40 x 12 |
| 4040 | 518331044 | LH Front Trim Acoustic Insulation |
| 4100 | 705013939 | Black, RH Access Cover |
| 4110 | 517302785 | Edge Clip |
| 4120 | 708304107 | Sterling Silver, RH Fairing Trim |
| 4130 | 250001131 | Torx Truss PT K40 x 12 |
