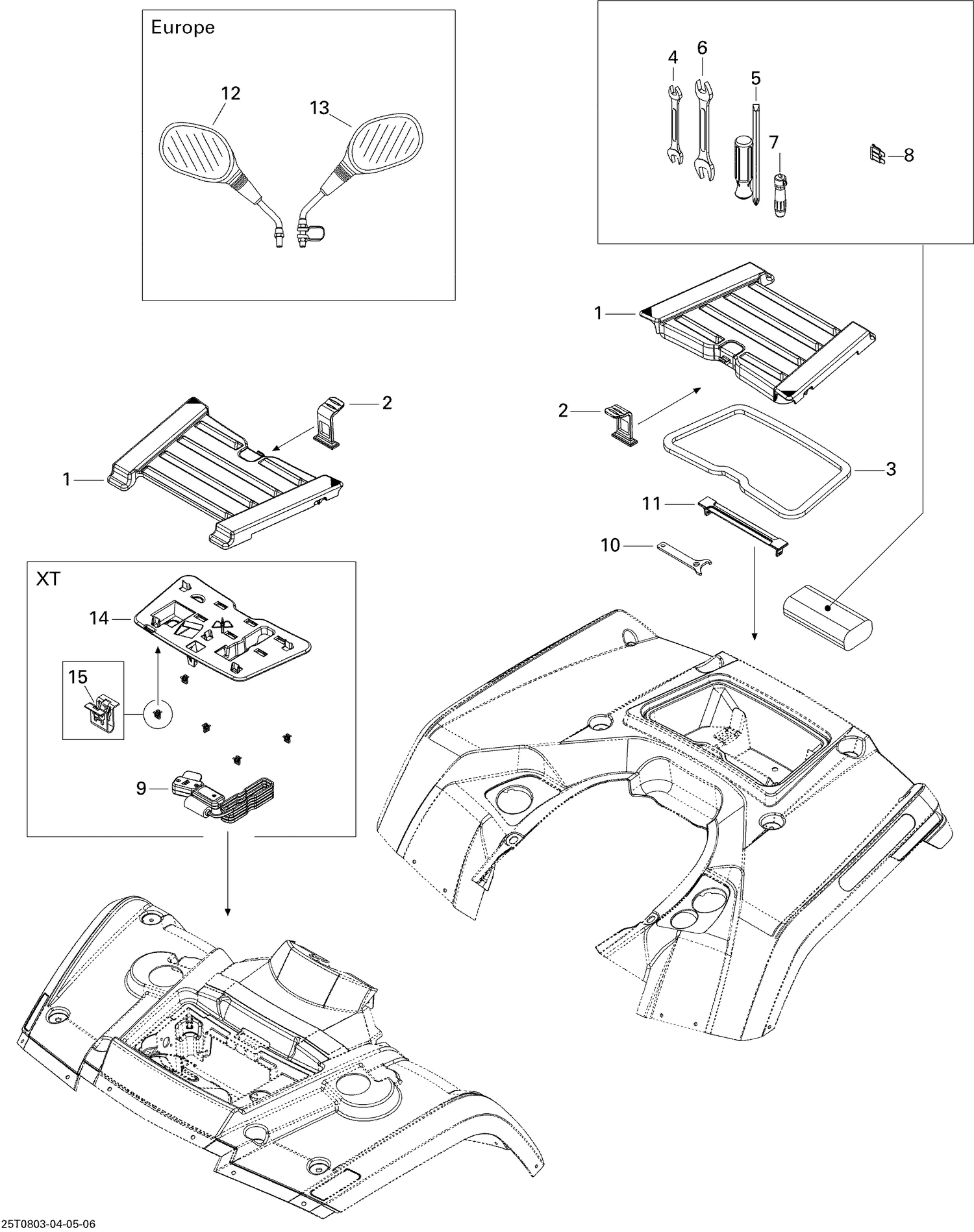

| Ref | Part Number | Description |
|---|
| 1 |
705003492 |
Storage Cover This part replaces 705001853. |
| 2 |
708200120 |
Cover Latch This part replaces 708200061. |
| 3 |
293250192 |
Neoprene Seal |
| 4 |
529000002 |
FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 5 |
529000004 |
SCREWDRIVER - Call your local BRP dealership |
| 6 |
529000003 |
FORK WRENCH 15/17 MM - Call your local BRP dealership |
| 7 |
529000052 |
PRESSURE GAUGE - Call your local BRP dealership This part replaces 704700003. |
| 8 |
278000343 |
Fuse, 15 Amperes |
| 8 |
409003900 |
Fuse, 20 Amperes |
| 8 |
410917200 |
Fuse, 30 Amperes |
| 9 |
XXX |
Not Available As Spare Parts |
| 10 |
529000035 |
Adjustment Wrench |
| 11 |
708200121 |
COVER LATCH KIT - Call your local BRP dealership This part replaces 708200062. |
| 14 |
XXX |
Not Available As Spare Parts |
