Parts Catalog

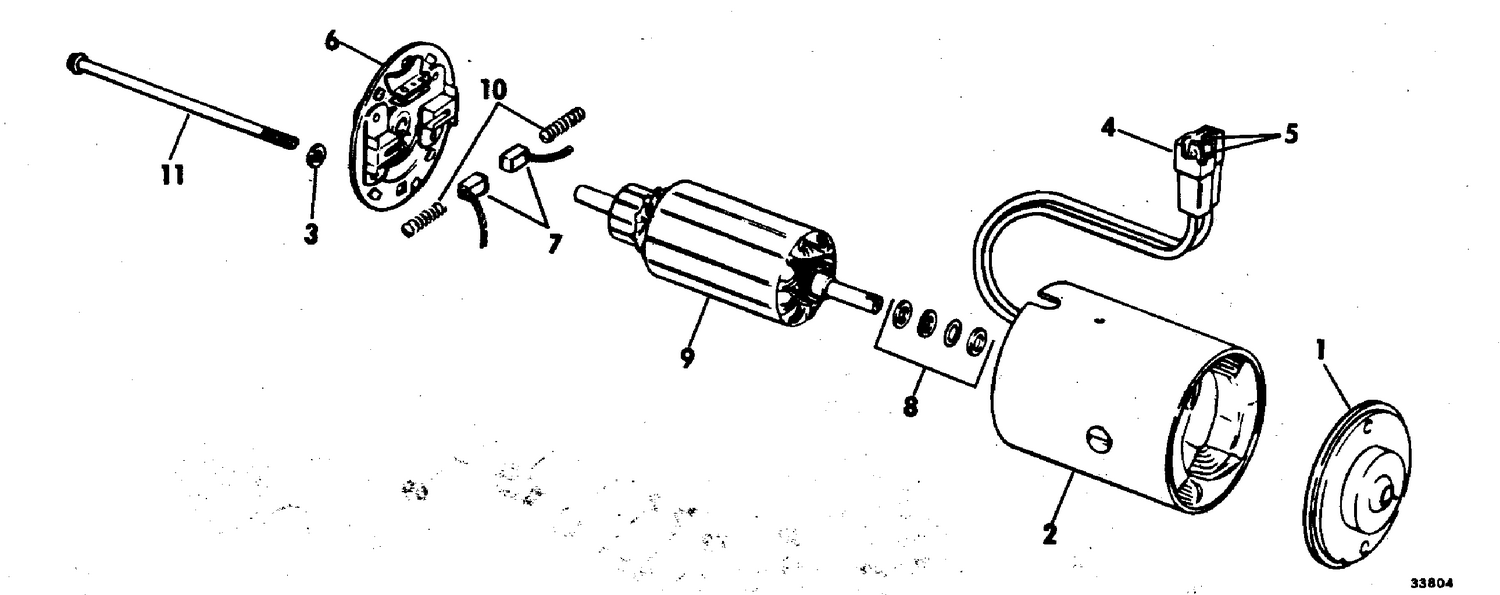

TILT MOTOR GROUP 120,140,175,190,235 HP STERN DRIVE

Parts (8)

Ref	Part Number	Description
1	0380705	HEAD ASSEMBLY
2	0382444	FRAME & FIELD COIL ASSEMBLY
3	0312013	HOUSING
4	0510472	CONNECTOR
6	0382545	HEAD ASSEMBLY COMMUTATOR END BRUSH SET
8	0380752	THRUST WASH AND SPACER PKG
9	0382544	ARMATURE ASSEMBLY
0382138	0382138	POWER PISTON ASSY
