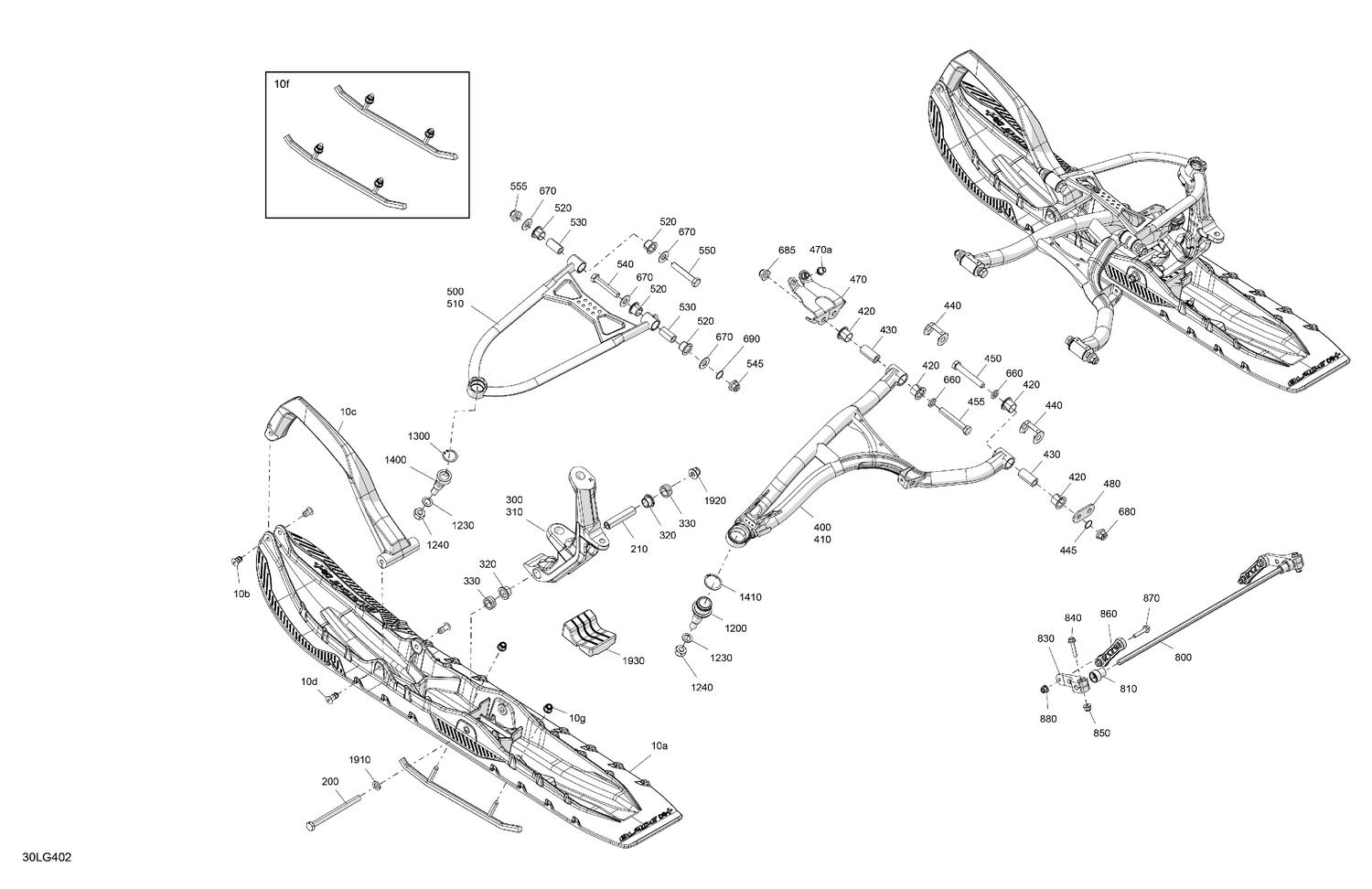

05- Suspension - Front
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 505074837 | Ski Blade |
| 10b | 505075902 | Rivet Ski Handle Short |
| 10c | 505073108 | Plastic handle, White BLADE |
| 10d | 505075906 | Rivet Ski Handle Long |
| 10f | 860203079 | Carbide Runner Square Kit |
| 10g | 233281414 | Hex. Flange Elastic Nut M8 |
| 200 | 250000703 | Hex. Screw M10 X 130 |
| 210 | 505073691 | Ski Axle |
| 300 | 505076370 | Viper Red, LH Ski Leg +2 |
| 310 | 505076371 | Viper Red, RH Ski Leg +2 |
| 320 | 505075612 | Ski Leg Bushing |
| 330 | 505074949 | Spacer |
| 400 | 505075851 | LH Lower Arm |
| 410 | 505075852 | RH Lower Arm |
| 420 | 505076008 | Bushing |
| 430 | 505075323 | Bushing |
| 440 | 505072634 | Wear Plate |
| 445 | 293300202 | O-Ring |
| 450 | 250001024 | Screw Hex. M10 X 70 |
| 455 | 250001024 | Screw Hex. M10 X 70 |
| 470a | 293450275 | Insert |
| 480 | 505076478 | Suspension Arm Reinforcement |
| 500 | 505075103 | LH Upper Suspension Arm 39 T |
| 510 | 505075104 | RH Upper Suspension Arm 39 T |
| 520 | 505076007 | Bushing |
| 530 | 505075322 | Bushing |
| 540 | 250001023 | Screw Hex. M10 X 60 |
| 545 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 550 | 250001023 | Screw Hex. M10 X 60 |
| 555 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 660 | 503189564 | Washer |
| 670 | 505072392 | Washer |
| 680 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 685 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 690 | 293300202 | O-Ring |
| 800 | 505075686 | Black, Stabilizer Bar |
| 810 | 505072064 | Bushing |
| 830 | 505074380 | Stabilizing Lever |
| 840 | 207663056 | Hex Flange Screw M6 X 1.0 X 30 |
| 850 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 860 | 505072204 | Sway Bar Double Joint Link |
| 870 | 207663056 | Hex Flange Screw M6 X 1.0 X 30 |
| 880 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 1200 | 505076276 | Lower Ball Joint |
| 1230 | 503192491 | Washer |
| 1240 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 1300 | 293370070 | Circlip |
| 1400 | 505072913 | Upper Ball Joint |
| 1410 | 293370098 | Snap Ring |
| 1910 | 503192496 | Washer |
| 1920 | 233201464 | Hex. Elast. Flanged Nut M10 x 1.5 |
