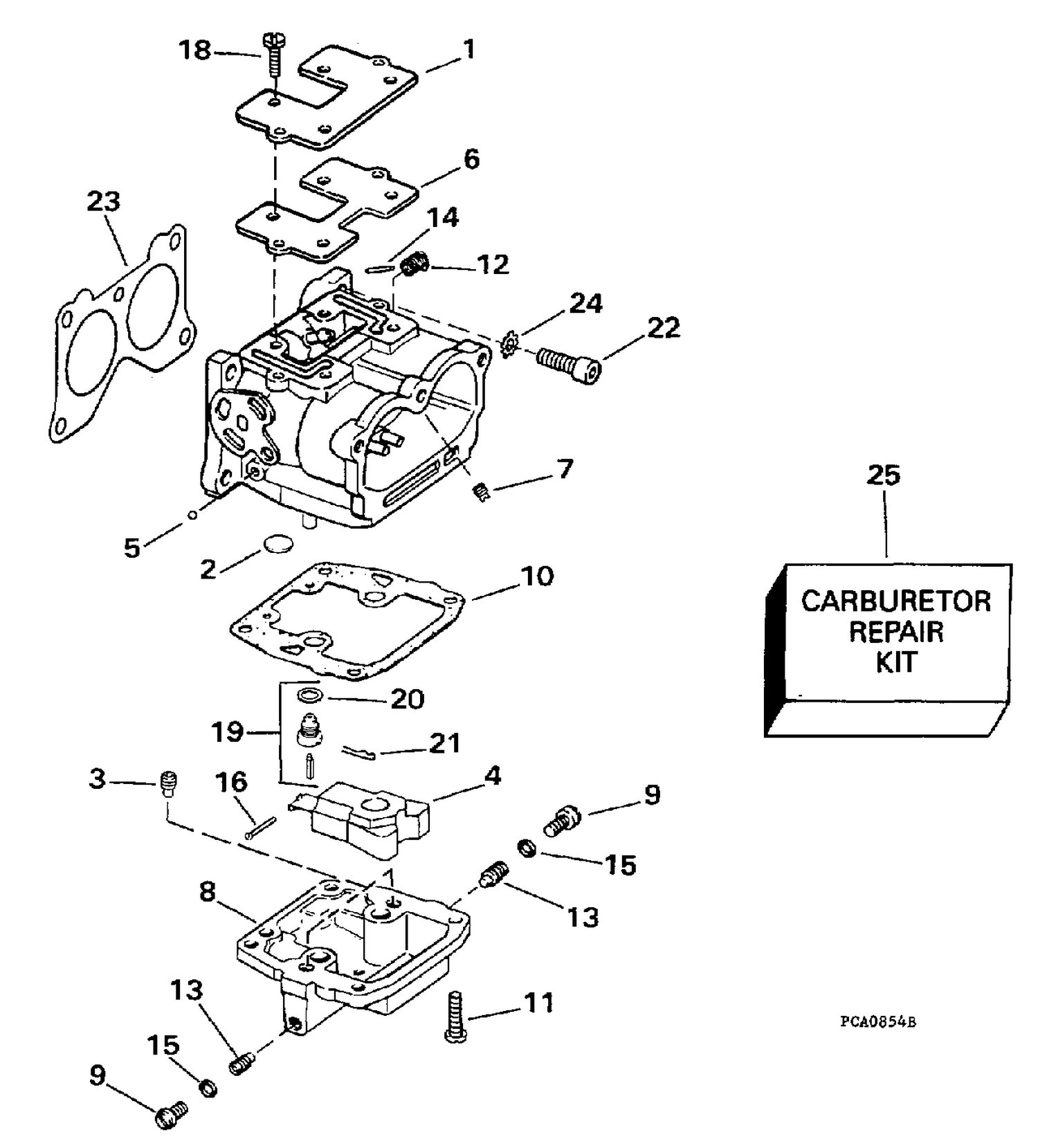

CARBURETOR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0334352 | COVER, Idle channel |
| 4 | 0383437 | FLOAT ASSEMBLY |
| 6 | 0334353 | GASKET, Cover |
| 8 | 0392376 | FLOAT CHAMBER ASSY. |
| 9 | 0330131 | CLAMP, Fuel filter |
| 10 | 0338884 | GASKET, Float bowl |
| 13 | 0321731 | ORIFICE PLUG |
| 18 | 0333750 | SCREW, Cover |
| 21 | 0336842 | CLIP, SPRING |
| 22 | 0203023 | SCREW, Bracket to upper carb. |
| 23 | 0327707 | GASKET, Air silencer |
| 0438887 | 0439727 | CARBURETOR ASSY., 90 models This part replaces 0438887. |
