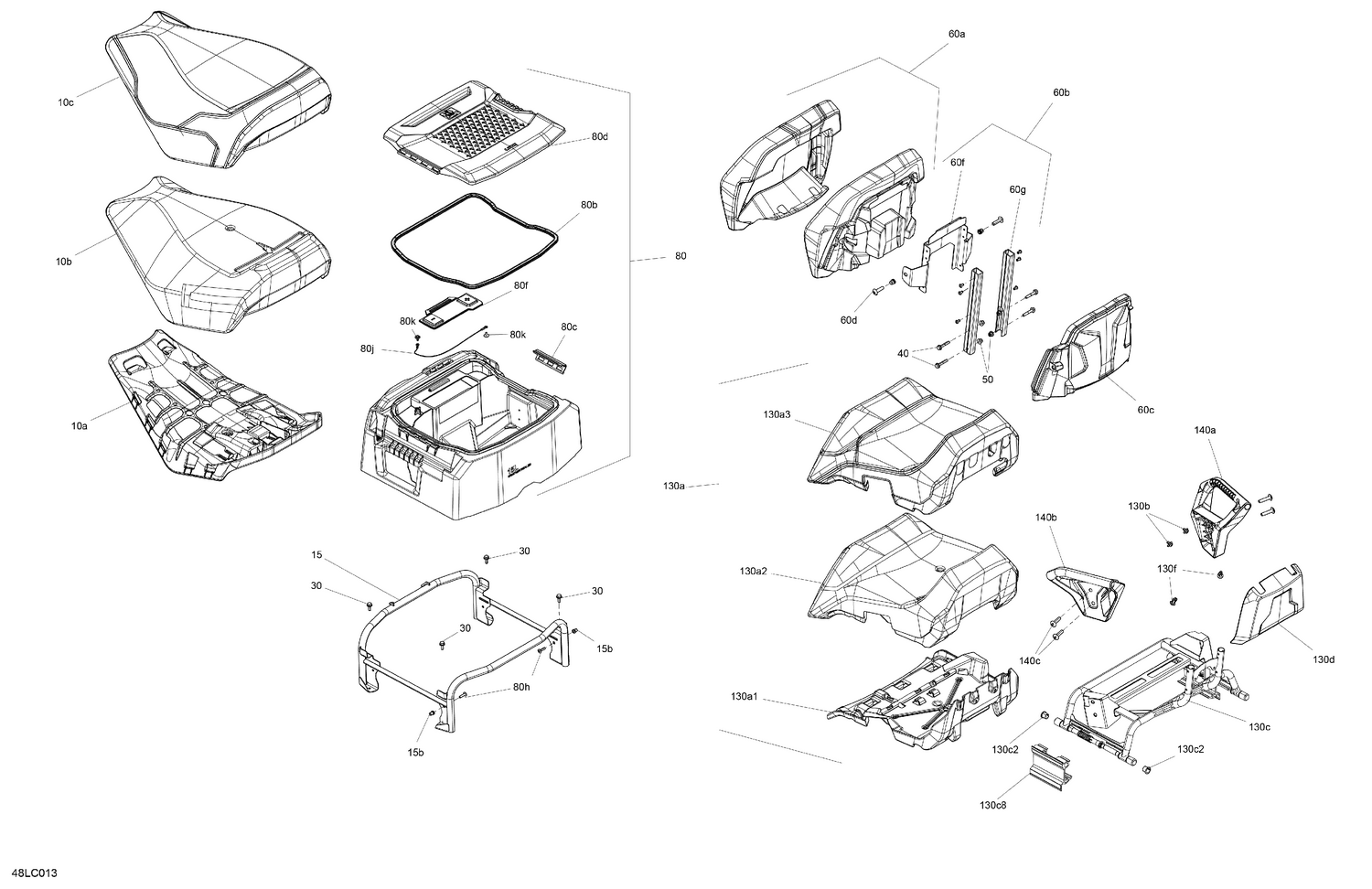

07- Body - Seat
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510006721 | Seat Base |
| 10b | 510008182 | Front Foam Seat This part replaces 510006722. |
| 10c | 510007061 | Seat Cover |
| 15b | 293450268 | Insert M5 X 0.8 |
| 30 | 207661644 | Hex. Flange Screw M6 X 16 |
| 40 | 207663544 | Hex. Flange Screw M6 X 35 |
| 50 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 60a | 510007066 | Foam And Upholstery Ass'y |
| 60b | 510006733 | Backrest Support |
| 60c | 510006734 | Backrest Support |
| 60d | 250000745 | Hex Torx Truss M8 X30 |
| 60f | 510006776 | Backrest Support Plate |
| 60g | 510007000 | Backrest Support |
| 80b | 293830188 | Seal, 1PC = 3M |
| 80c | 269502449 | Latch |
| 80d | 511001274 | Box Cover |
| 80f | 510006789 | Access Cover |
| 80h | 250000724 | Torx Screw M5 X 20 |
| 80j | 293750092 | Retaining Cable |
| 80k | 250000805 | Plastite Screw M4 X 10 |
| 130a1 | 510006885 | Passender Seat Base |
| 130a2 | 510006728 | Passenger Seat Foam |
| 130a3 | 510007070 | Passenger Seat Cover |
| 130b | 293150027 | Avdel Rivet |
| 130c2 | 506152520 | Cushion |
| 130c8 | 510006994 | Seat Latch |
| 130d | 510006848 | Seat Trim |
| 130f | 293150230 | Tuflok Plastic Rivet |
| 140a | 510006797 | RH Handle |
| 140b | 510006798 | LH Handle |
