Parts Catalog

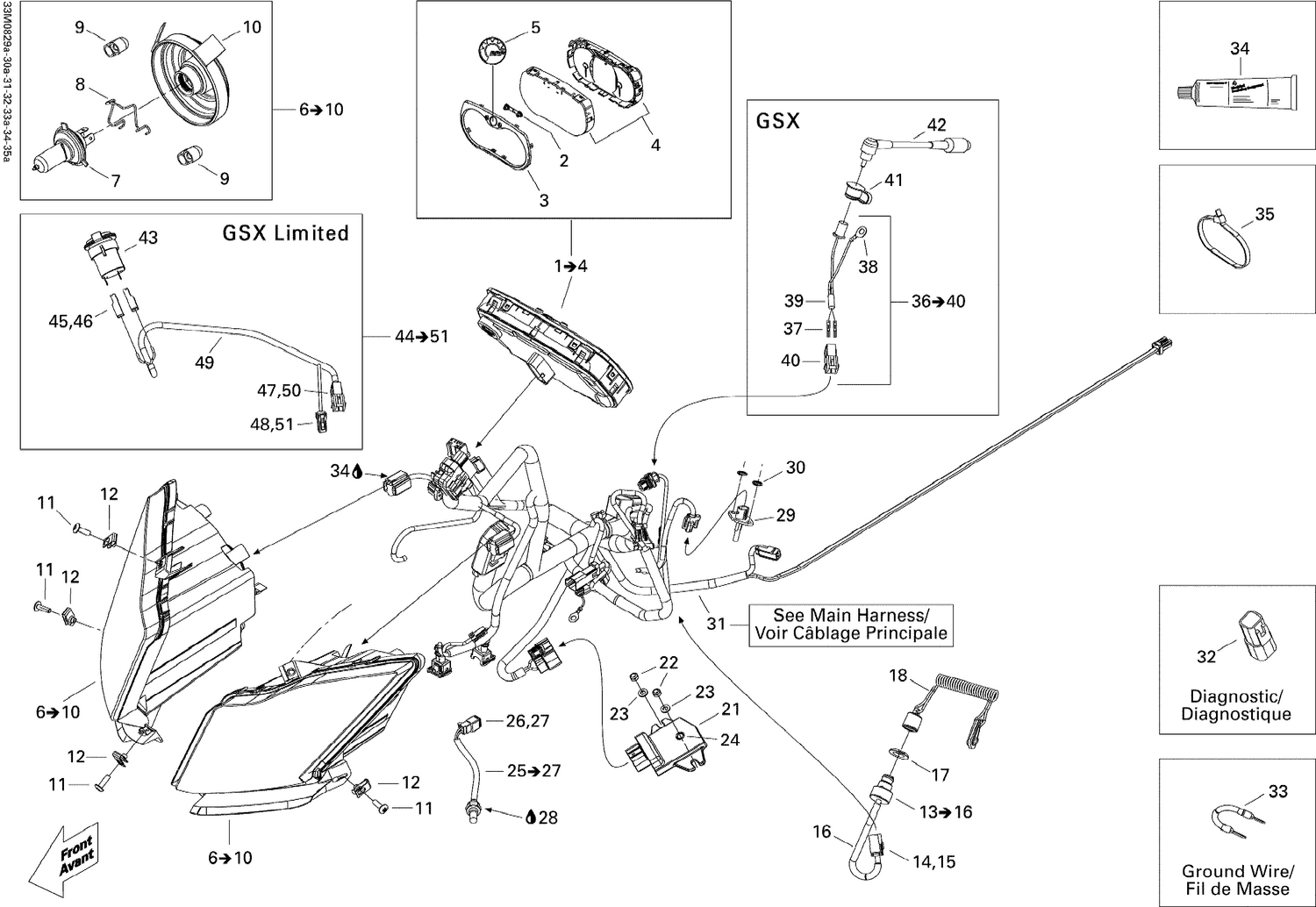

10- Electrical System 800R

Parts (47)

Ref	Part Number	Description
2	415129355	Speedometer Button This part replaces 415129347.
3	415129348	Gauge Ring
4	415129349	Lens
5	516006224	BRP Logo 20MM x 2MM This part replaces 219902677.
7	515176274	Halogen Bulb, 60/55 W, 12 V ( H4 )
8	Not	Available As Spare Part - Bulb Holder
9	515176498	Cap
10	219800280	Rubber Cap Protector This part replaces 515176499.
11	250000722	Torx Screw M6 X 20 This part replaces 250000128.
12	250100198	Panel Nut M6 X 1.0 This part replaces 250000048.
14	515175232	Male Terminal
15	515175494	Male Housing, 3 Circuits
16	409902000	Tubing 12 mm
17	278002963	Safety Nut (DESS Switch) This part replaces 278000508.
18	515178284	DESS This part replaces 515176461.
21	515176364	Voltage Regulator
22	232561414	Elastic Stop Nut M6
23	234061410	Flat Washer 6 mm
24	234461608	External Serrated Lock Washer 6 mm
26	515175670	Female Terminal Housing, 2 Circuits
27	278000632	Female Terminal
28	219704455	Was 293800018 Loctite 592, 50 ml
29	515176366	Air Temperature Sensor
30	389804300	Push Nut
31	515176598	WIRING HARNESS MAIN - Call your local BRP dealership
32	278002704	Diagnostic Connector This part replaces 278002148.
33	515176358	Ground Wire
34	219704453	Was 293550004 Dielectric Grease, 150 g
35	293750001	Tie Wrap 94 mm
35	293750002	Tie Wrap 142 mm
35	293750008	Tie Wrap 368 mm
35	414115200	Tie-Rap 180 mm
36	XXX	Not Available As Spare Parts
37	XXX	Not Available As Spare Parts
38	XXX	Not Available As Spare Parts
39	XXX	Not Available As Spare Parts
40	XXX	Not Available As Spare Parts
41	XXX	Not Available As Spare Parts
42	XXX	Not Available As Spare Parts
43	XXX	Not Available As Spare Parts
44	XXX	Not Available As Spare Parts
45	XXX	Not Available As Spare Parts
46	XXX	Not Available As Spare Parts
47	XXX	Not Available As Spare Parts
48	XXX	Not Available As Spare Parts
49	XXX	Not Available As Spare Parts
50	XXX	Not Available As Spare Parts
