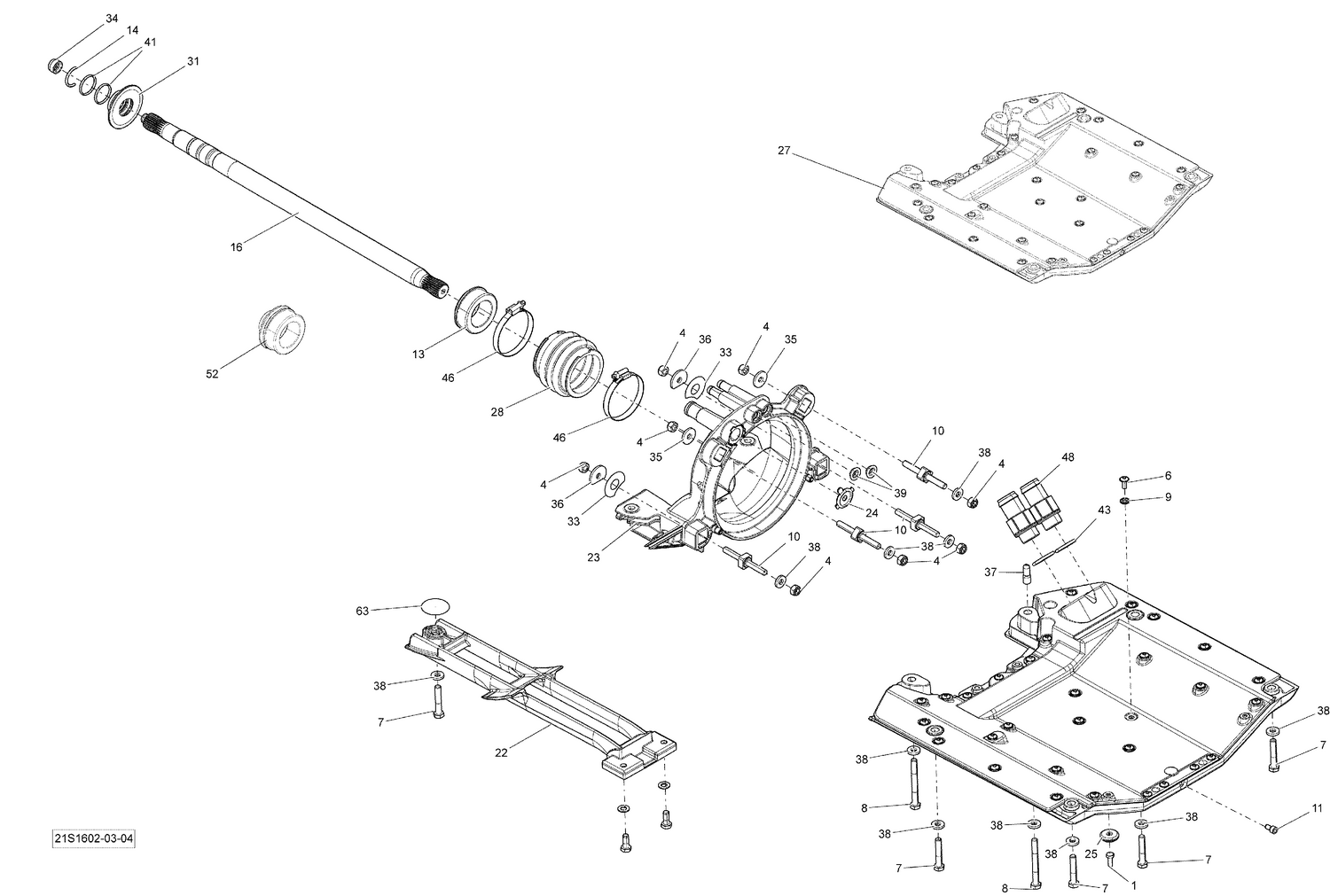

05- Propulsion
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207361660 | Hex. Screw M6 X 16, Scotch Grip |
| 4 | 232581200 | Hex. Elastic Nut M8 Brass |
| 6 | 250000384 | Torx Screw M6 X 14 |
| 7 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 8 | 250000812 | Hexagonal Head Cap Screw M8 X 75 |
| 9 | 250200114 | Sealing Washer |
| 10 | 250300046 | Square Stud |
| 11 | 250500005 | Socket Drain Plug M6 X 12 |
| 14 | 271001577 | C-Clip |
| 16 | 271001719 | Drive Shaft |
| 22 | 271001967 | Pump Grate This part replaces 271001691. |
| 23 | 271001964 | Pump Support |
| 24 | 271002029 | Reducer, Green This part replaces 271001903. |
| 25 | 271001920 | Anode Zinc |
| 26 | 271001931 | Pump Support |
| 27 | 271001939 | Riding Plate Ass'y |
| 28 | 271001933 | Bellow |
| 31 | 295501205 | Carbon Ring Kit This part replaces 295501153. |
| 33 | 272000053 | Shim 0.3 mm |
| 34 | 272000173 | Drive Shaft Plug |
| 35 | 279000336 | Flat Washer This part replaces 279000164. |
| 36 | 279000326 | Flat Washer |
| 37 | 293000105 | Cap Plug |
| 38 | 293050001 | Flat Washer M8.5 x 18 |
| 39 | 293250084 | Watertight Seal |
| 41 | 293300107 | O-Ring |
| 43 | 293300121 | O-Ring |
| 46 | 293650079 | Norma Clamp |
| 48 | 293710124 | Strait Fitting |
| 52 | 295501205 | Carbon Ring Kit This part replaces 295501153. |
