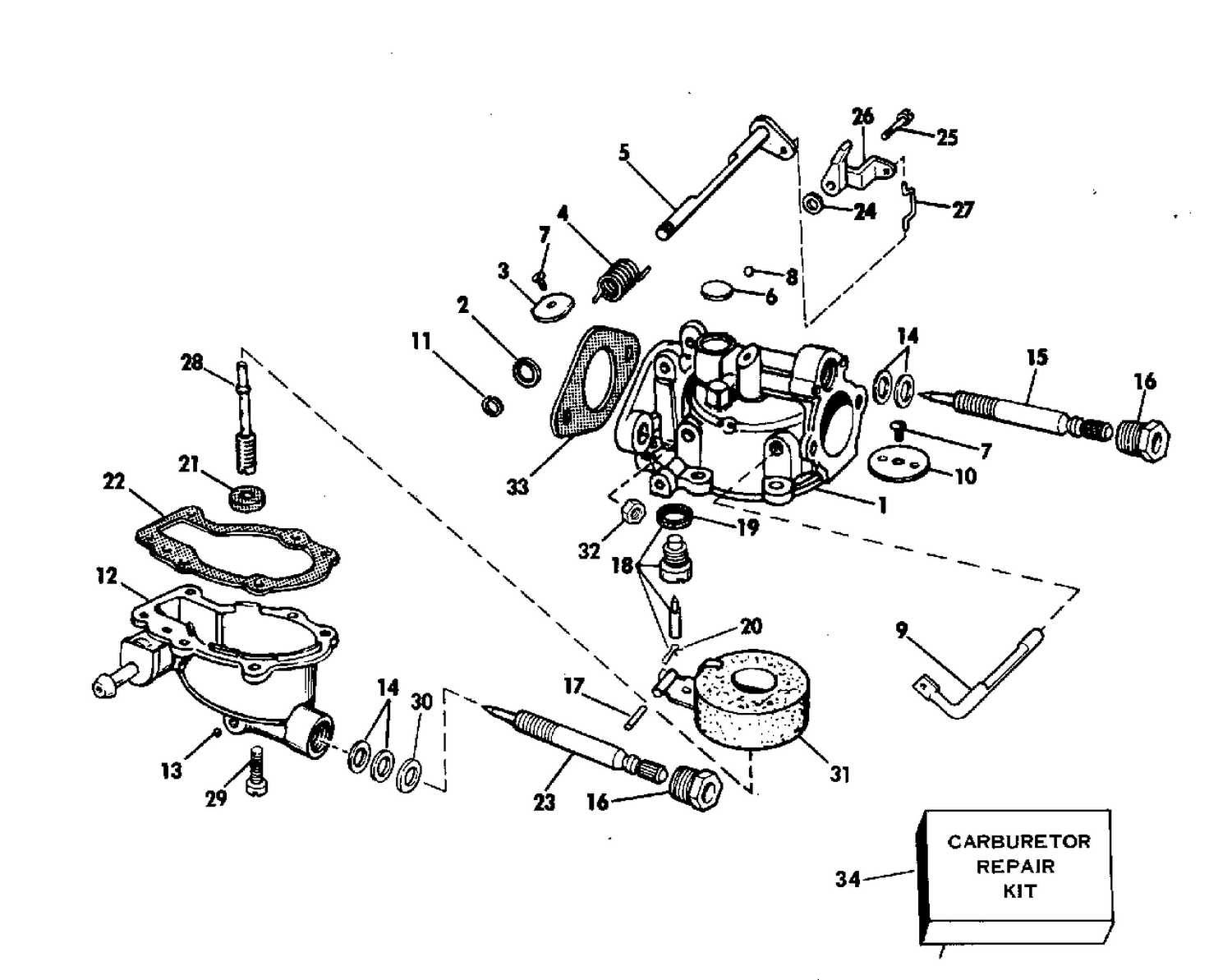

CARBURETOR
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0386185 | BODY ASSY |
| 10 | 0319132 | CHOKE VALVE |
| 11 | 0203949 | E RING LINK This part replaces 0202755. |
| 12 | 0383755 | FLOAT CHAMBER ASSY |
| 15 | 0312823 | NEEDLE VALVE SLOW SPEED |
| 17 | 0300096 | HINGE PIN |
| 20 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 21 | 0302984 | GASKET |
| 23 | 0315174 | GASKET |
| 26 | 0312832 | CAM FOLLOWER |
| 27 | 0330192 | LINK, Cam follower This part replaces 0312830. |
| 28 | 0316598 | LINK, Cam follower |
| 29 | 0307045 | NOZZLE, High speed |
| 32 | 0328742 | NUT This part replaces 0306338. |
| 33 | 0303003 | GASKET |
| 0386183 | 0386183 | CARBURETOR ASSEMBLY |
