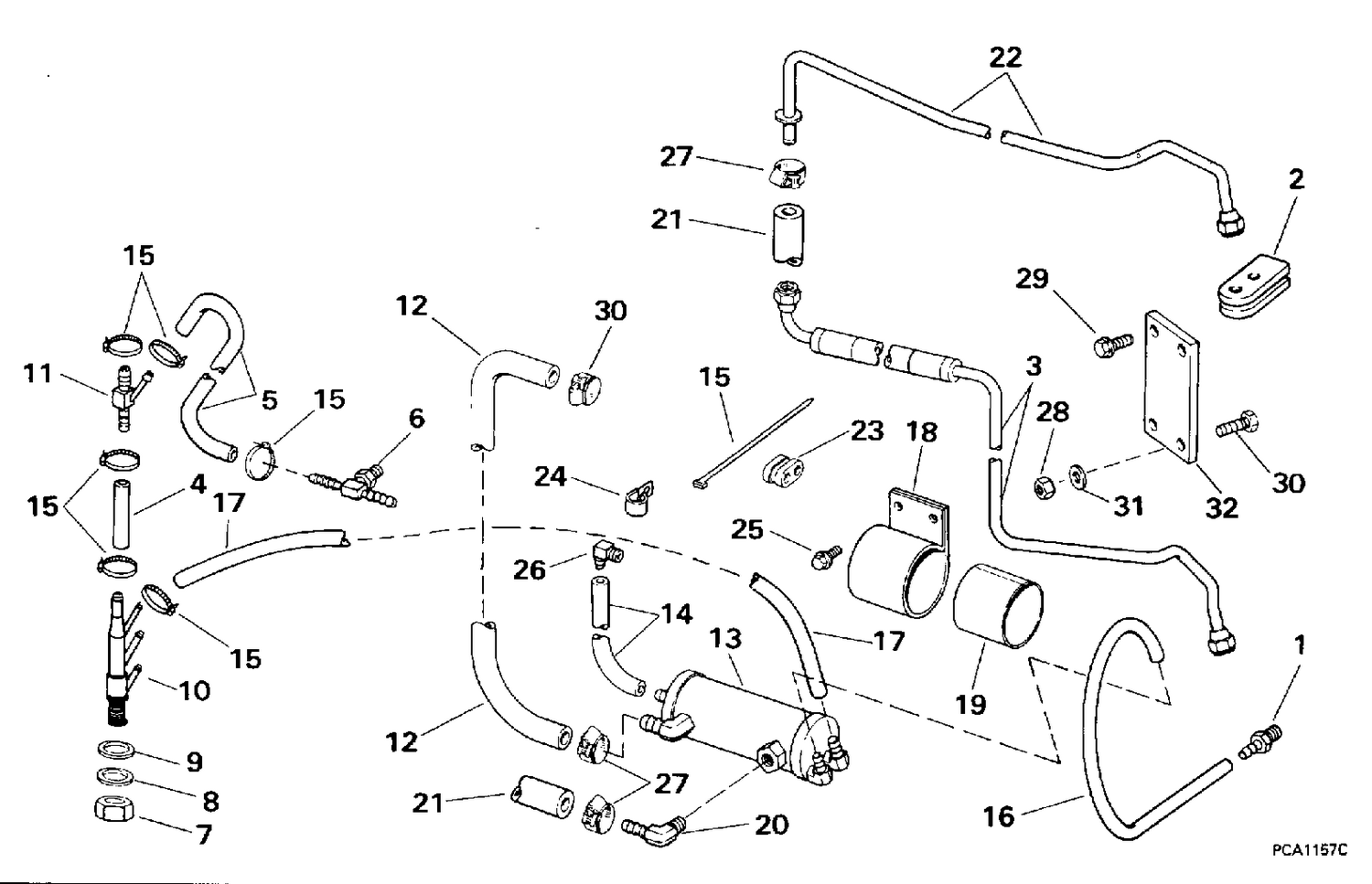

| Ref | Part Number | Description |
|---|
| 3 |
0436707 |
HOSE, Pump assy. to engine cover, pressure |
| 5 |
0331215 |
HORSE, Elbow to tee This part replaces 0321890. |
| 6 |
0913436 |
TEE, Adapter |
| 8 |
0317936 |
WASHER |
| 9 |
0122220 |
SEAL |
| 10 |
0914903 |
ASPIRATOR |
| 12 |
0912068 |
HOSE, Oil cooler to filter |
| 14 |
0912152 |
HOSE, Control valve to adapter |
| 14 |
HOSE, |
Oil cooler to block, 37 in. |
| 15 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 17 |
0330365 |
FLEXIBLE, indicateur d'éjection |
| 17 |
HOSE, |
Oil cooler to aspirator, 17 in. |
| 19 |
0912064 |
SLEEVE, Oil cooler |
| 20 |
0912000 |
ELBOW, Oil cooler |
| 22 |
0985536 |
TUBE ASSY., Engine cover to coil cooler, return |
| 23 |
0912226 |
GROMMET, Return tube |
| 30 |
0329894 |
SCREW |
| 0436683 |
0436683 |
KIT ASSY., Hose, V-6 |
| 0436684 |
0436684 |
KIT ASSY., Hose, V-8 |
