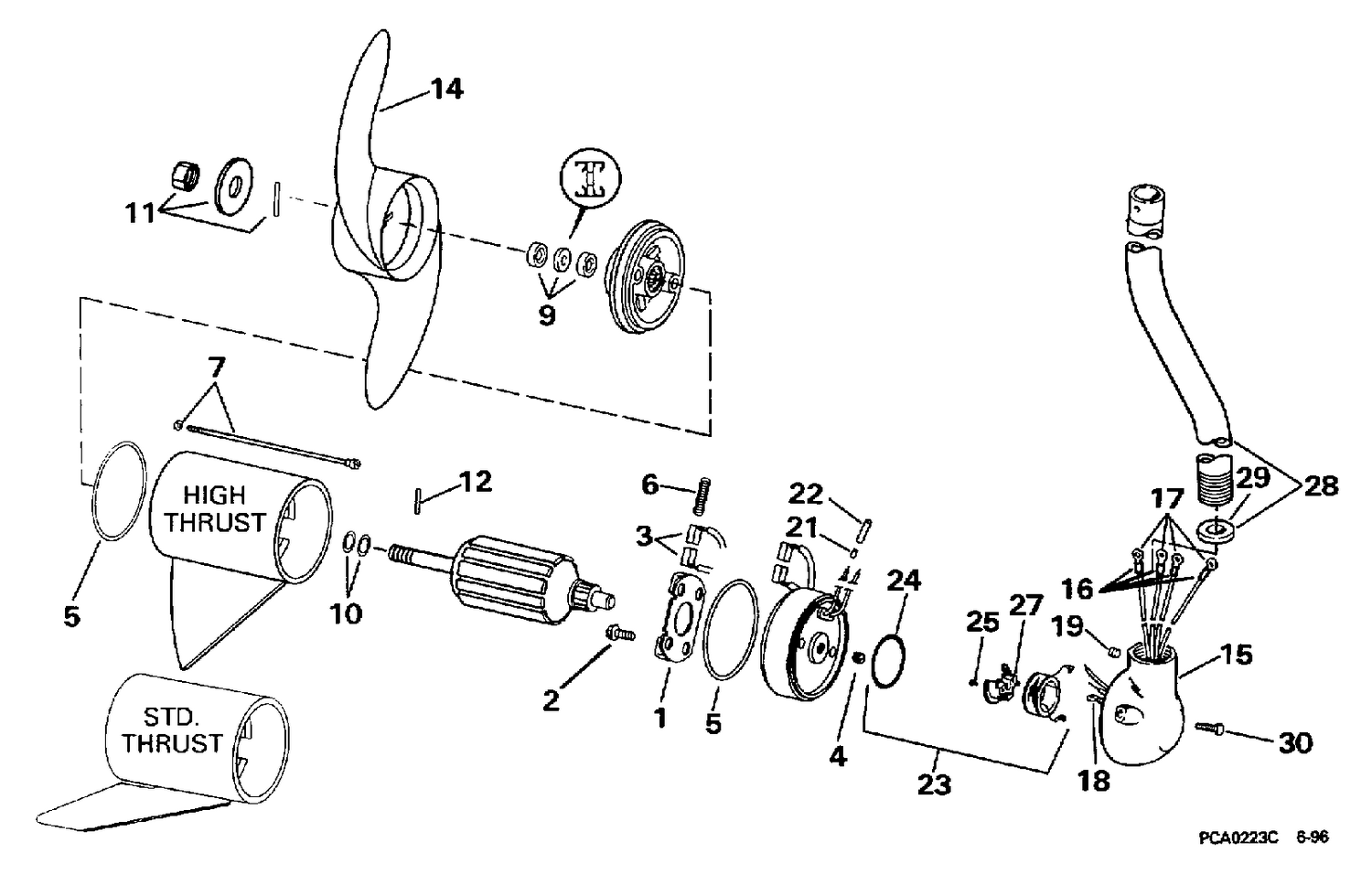

| Ref | Part Number | Description |
|---|
| 1 |
0583791 |
BRUSH HOLDER & SCREWS |
| 1 |
0584896 |
BRUSH HOLDER & SCREWS |
| 2 |
0337520 |
SCREW, Brush holder |
| 3 |
0583798 |
REPLACEMENT BRUSH SET |
| 3 |
0584902 |
REPLACEMENT BRUSH SET |
| 4 |
0334613 |
SET SCREW, End head |
| 4 |
0514305 |
SET SCREW, End head |
| 5 |
0583802 |
O-RING PACKAGE |
| 5 |
0584904 |
O-RING PACKAGE |
| 6 |
0583794 |
SPRING SET, Brush |
| 6 |
0584898 |
SPRING SET, Brush |
| 7 |
0583795 |
THRU-BOLT PACKAGE |
| 7 |
0584899 |
THRU-BOLT PACKAGE |
| 9 |
0583797 |
SEAL PACKAGE ASSY,, Drive end |
| 9 |
0584901 |
SEAL PKG. ASSY., Drive end |
| 10 |
0583796 |
THRUST WASHER PKG |
| 10 |
0584900 |
THRUST WASHER PKG. |
| 11 |
0438860 |
KIT, Prop hardware |
| 12 |
0333513 |
DRIVE IN, Propeller This part replaces 0116426. |
| 14 |
0116437 |
PROP., 8 3/4 x 4 weedless |
| 14 |
0116438 |
PROP., 12 1/2 x 4 weedless |
| 15 |
0432976 |
ADAPTER & O-RING PKG., 36 in. length |
| 15 |
0432977 |
ADAPTER & O-RING PKG., 42 in. length |
| 15 |
0434598 |
ADAPTER ASSY., 36 in. length |
| 15 |
0434600 |
ADAPTER ASSY., 48 in. length |
| 15 |
0434602 |
ADAPTER ASSY., 42 in. length |
| 15 |
0438757 |
ADAPTER ASSY., 28 in. length |
| 18 |
0512891 |
TERMINAL, Ring |
| 19 |
0321223 |
SET SCREW |
| 23 |
0398545 |
RESISTOR ASSY |
| 27 |
0326907 |
TERMINAL BOARD |
| 28 |
0281068 |
MOTOR TUBE & SEAL PKG |
| 28 |
0392156 |
MOTOR TUBE & SEAL PKG. 42" length |
| 28 |
0396737 |
MOTOR TUBE & SEAL PKG., 42" only |
| 28 |
0432682 |
MOTOR TUBE & SEAL PKG., 48 in. length |
| 28 |
0432683 |
MOTOR TUBE, 36 in. length |
| 28 |
0438756 |
MOTOR TUBE, 28 in. length |
| 29 |
0320681 |
SEAL, Adapter to motor tube |
| 30 |
0326968 |
SCREW, Adapter to motor |
| 0116475 |
0116475 |
MOTOR ASSY., 12v |
| 0116476 |
0116476 |
MOTOR ASSY., 12v |
