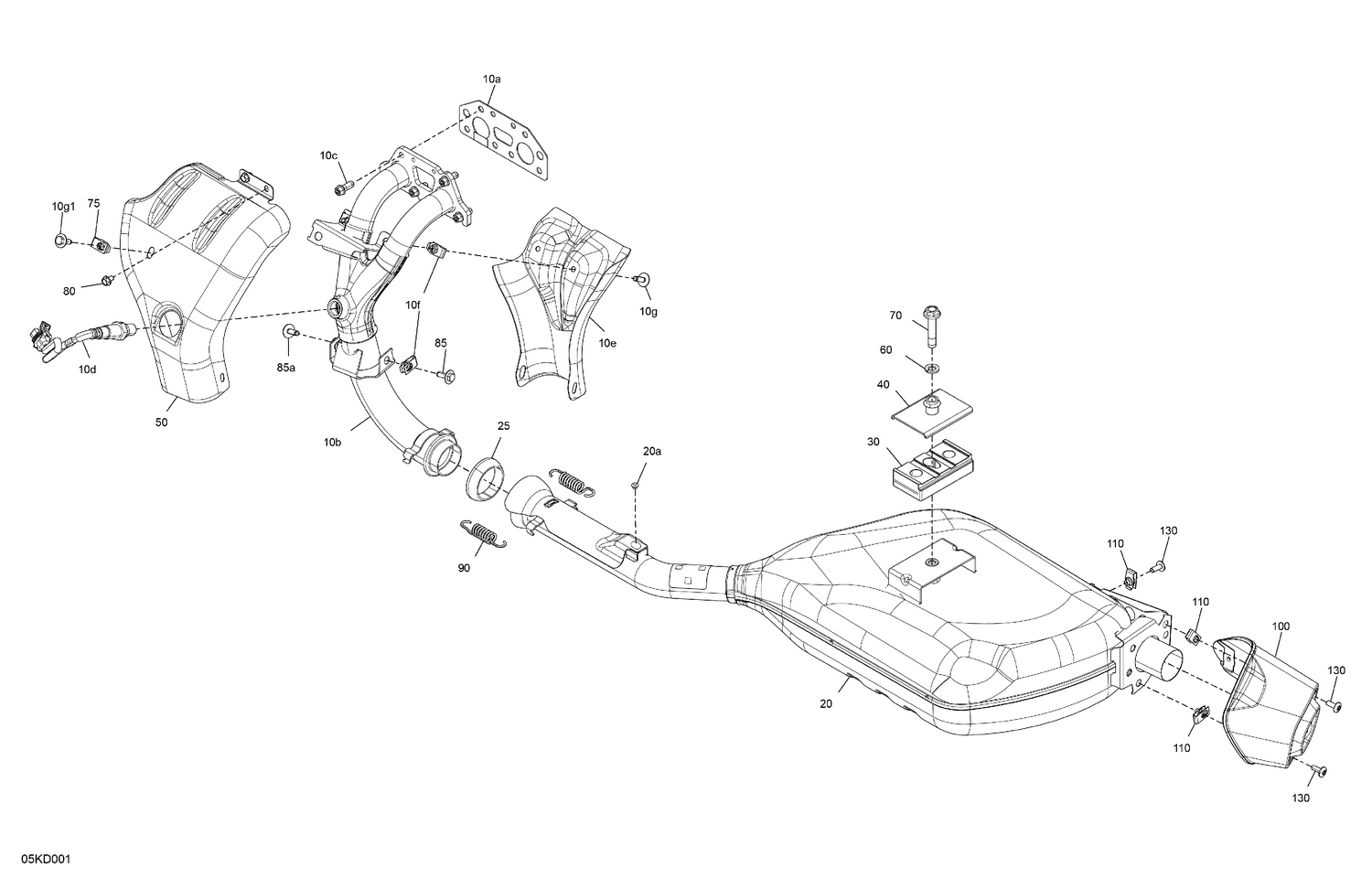

02- Engine - Exhaust
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 707601939 | Exhaust Manifold Gasket |
| 10b | 707601938 | Exhaust Manifold |
| 10c | 250001089 | Hex. Flange Screw M8 X 20 |
| 10d | 707600872 | Oxygen Sensor |
| 10e | 707602311 | Deflector |
| 10f | 250100198 | Panel Nut M6 X 1.0 |
| 10g1 | 250000965 | Hex Screw M6 X 20 |
| 20a | 293150264 | Rivet Ornit 6,5 X 10.5 |
| 25 | 707601033 | Exhaust Gasket |
| 30 | 707603448 | Vibration Damper |
| 40 | 707602413 | Plate Fastener |
| 50 | 707602313 | Deflector |
| 60 | 234101601 | Helicoidal Lock Washer M10 |
| 70 | 250001079 | Hex. Flange Screw M10 X 50 |
| 75 | 250100198 | Panel Nut M6 X 1.0 |
| 80 | 210261050 | Hex. Forming Screw M6 X 10 |
| 85a | 250000965 | Hex Screw M6 X 20 |
| 90 | 514055198 | Spring |
| 100 | 707602404 | Carbon Black, Muffler End Piece |
| 110 | 250100198 | Panel Nut M6 X 1.0 |
