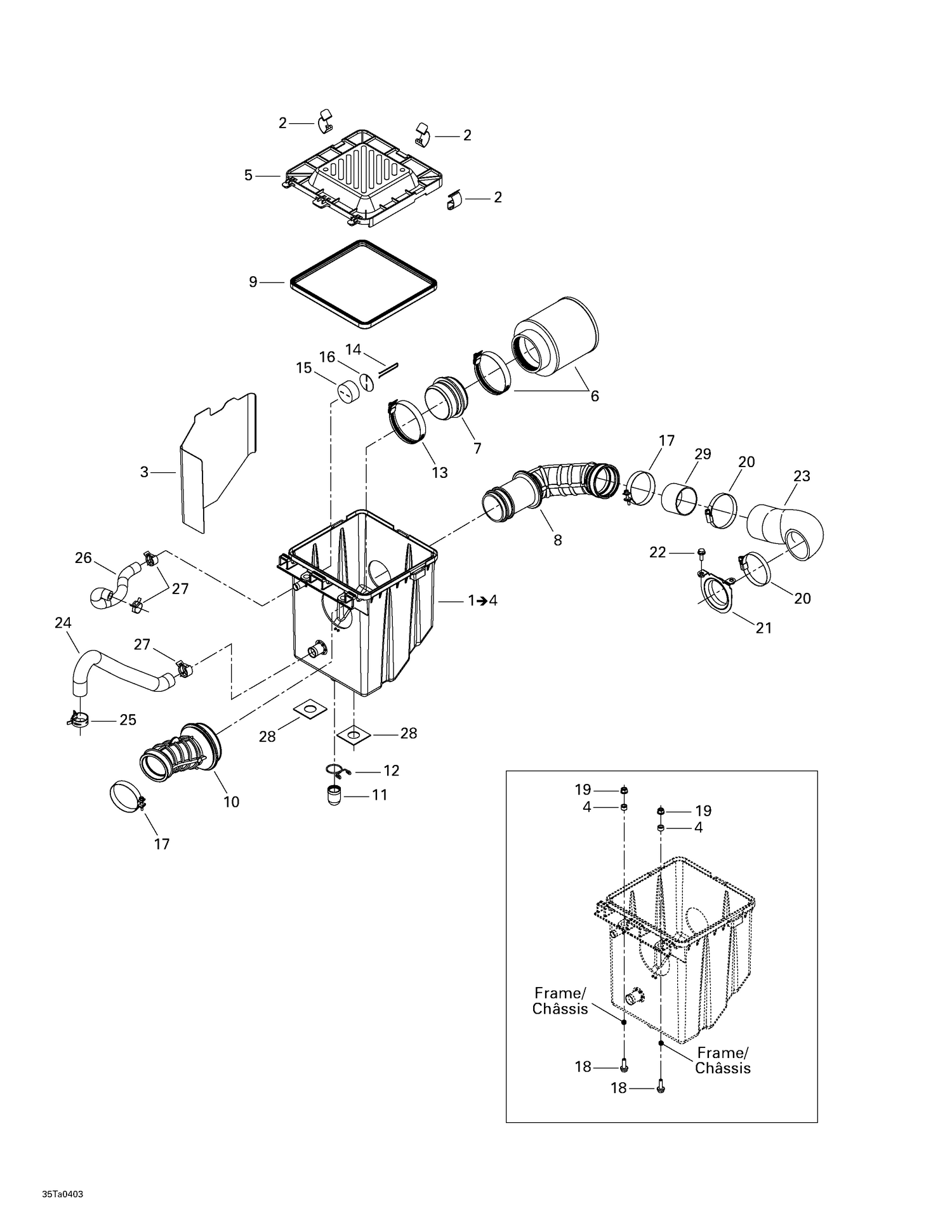

02- Air Intake Silencer
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 707800079 | Bracket Cover |
| 3 | 707800083 | HEAT PROTECTOR - Call your local BRP dealership |
| 4 | Not | Available As Spare Part - Support Bushing |
| 5 | 707800158 | MUFFLER COVER - Call your local BRP dealership |
| 6 | 707800072 | Air Filter |
| 7 | 707800077 | Adaptor |
| 8 | 707800078 | Intake Adaptor |
| 9 | 293250113 | OIL SEAL - Call your local BRP dealership |
| 10 | 707800157 | Intake Adaptor |
| 11 | 707800080 | Drain Tube |
| 12 | 707800081 | RETAINER CLIP - Call your local BRP dealership |
| 13 | 293650179 | Tridon Clamp This part replaces 293650107. |
| 14 | 707800087 | FOAM BRACKET - Call your local BRP dealership |
| 15 | 707800088 | FILTER FOAM - Call your local BRP dealership |
| 16 | 707800089 | Retainer Bracket |
| 17 | 293650158 | Gemi Clamp |
| 18 | 207662044 | Hex. Flange Screw M6 X 20 |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 20 | 293650079 | Norma Clamp |
| 21 | 705000810 | Hose Support |
| 22 | 207661644 | Hex. Flange Screw M6 X 16 |
| 23 | 707800109 | Rear Air Intake |
| 24 | 707800164 | Vent Hose |
| 25 | 293650109 | Norma Spring Clamp |
| 26 | 707800086 | Carburator Vent Hose |
| 27 | 293650110 | Norma Clamp |
| 28 | 293830091 | Rubber Bumper |
