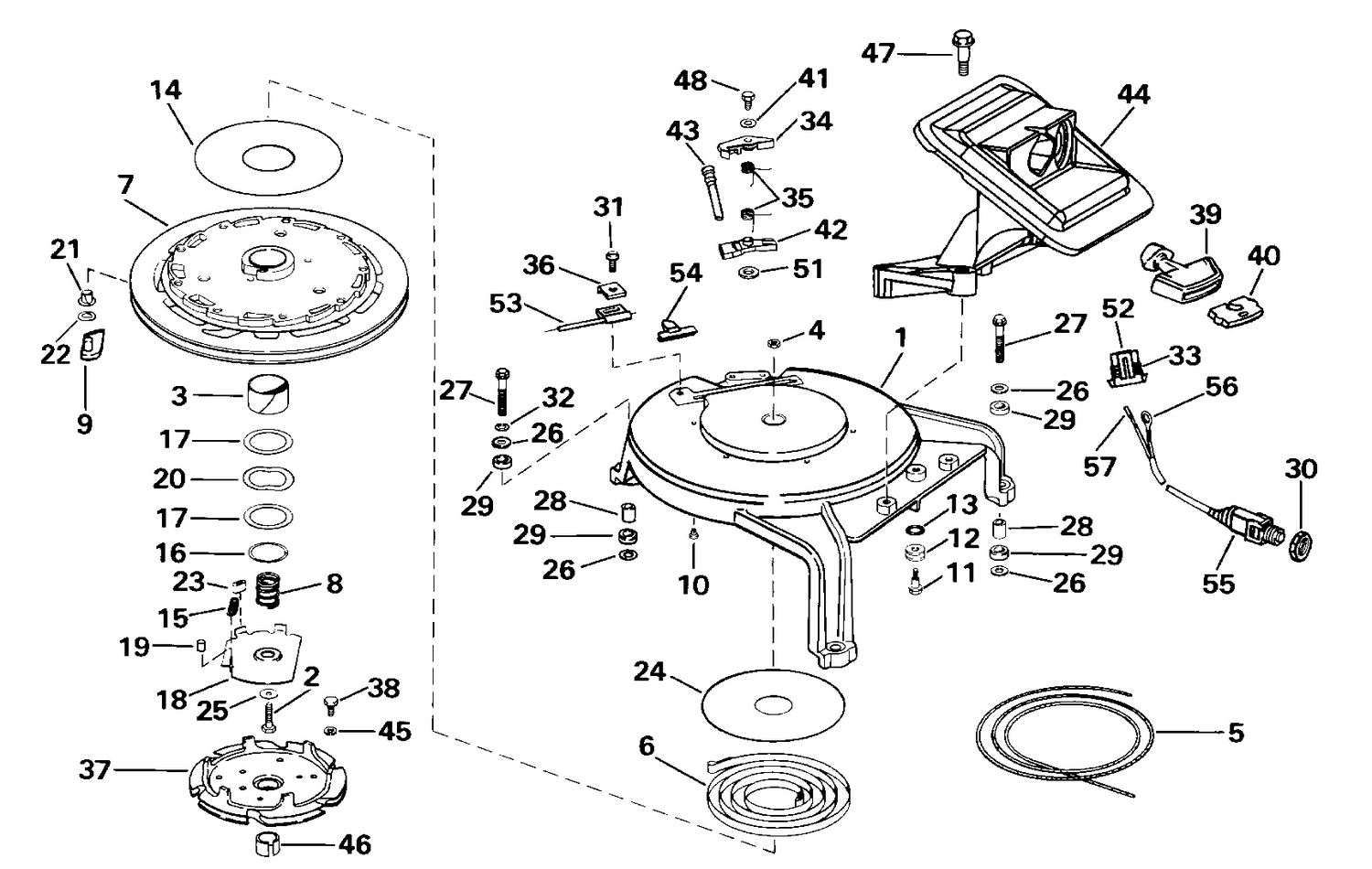

REWIND STARTER
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 27 | 0328333 | SCREW |
| 28 | 0326129 | SLEEVE |
| 29 | 0326130 | GROMMET |
| 31 | 0328731 | VIS, câble de verrouillage |
| 34 | 0330276 | LOCKOUT LEVER |
| 35 | 0326128 | SPRING |
| 36 | 0328456 | CLAMP |
| 37 | 0342818 | PULLEY, Start |
| 38 | 0336135 | SCREW, Flywheel |
| 39 | 0326249 | HANDLE, Starter |
| 42 | 0437040 | LOCKOUT LEVER Assy |
| 44 | 0438753 | BRACKET & SPACER, Starter handle |
| 45 | 0343600 | WASHER, Screw, pulley |
| 46 | 0342819 | COLLAR |
| 47 | 0335220 | SCREW, Bracket |
| 48 | 0319415 | SCREW |
| 53 | 0438233 | CABLE ASSY., Lockout |
| 54 | 0330338 | SLIDE |
| 55 | 0586090 | STOP SWITCH ASSY. |
| 0438104 | ENS. | LANCEUR À ENROULEMENT 0438104 |
| 0438104 | RECOIL | STARTER Assy 0438104 |
