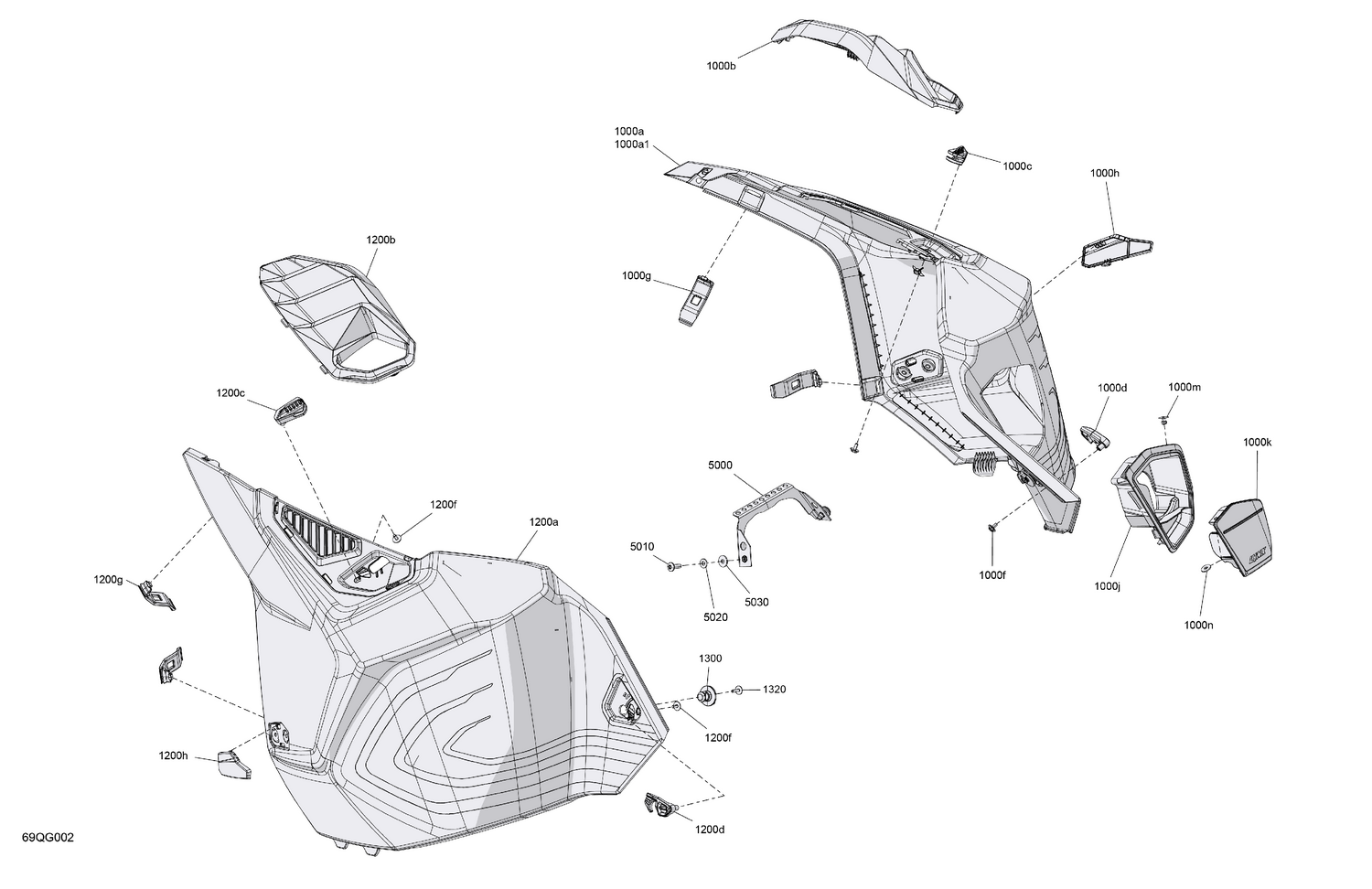

07- Body - Lateral Panels
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1000a1 | 517309259 | Panel RH |
| 1000b | 517308683 | Deep Black, RH Grille Trim |
| 1000c | 517305773 | RH Rear Latch |
| 1000d | 517306320 | RH Rear Latch |
| 1000f | 250000805 | Plastite Screw M4 X 10 |
| 1000g | 517306811 | Rubber Latch |
| 1000h | 517309818 | RH Side Panel Cap |
| 1000j | 517308697 | Charge Port Collar |
| 1000k | 517308902 | Charging Port Cover |
| 1000m | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 1000n | 517124300 | Washer |
| 1200a | 517309258 | Bright White, LH Panel |
| 1200b | 517308685 | Deep Black, LH Grille Trim |
| 1200c | 517305774 | LH Rear Latch |
| 1200d | 517306325 | LH Rear Latch |
| 1200f | 250000805 | Plastite Screw M4 X 10 |
| 1200g | 517306811 | Rubber Latch |
| 1200h | 517309819 | LH Side Panel Cap |
| 1300 | 517305985 | Rear Stud |
| 1320 | 250000725 | Screw M4 X 16 |
| 5000 | 518335685 | Side Member Support |
| 5010 | 250000722 | Torx Truss Screw M6 x 20 |
| 5020 | 250200039 | Flat Washer |
