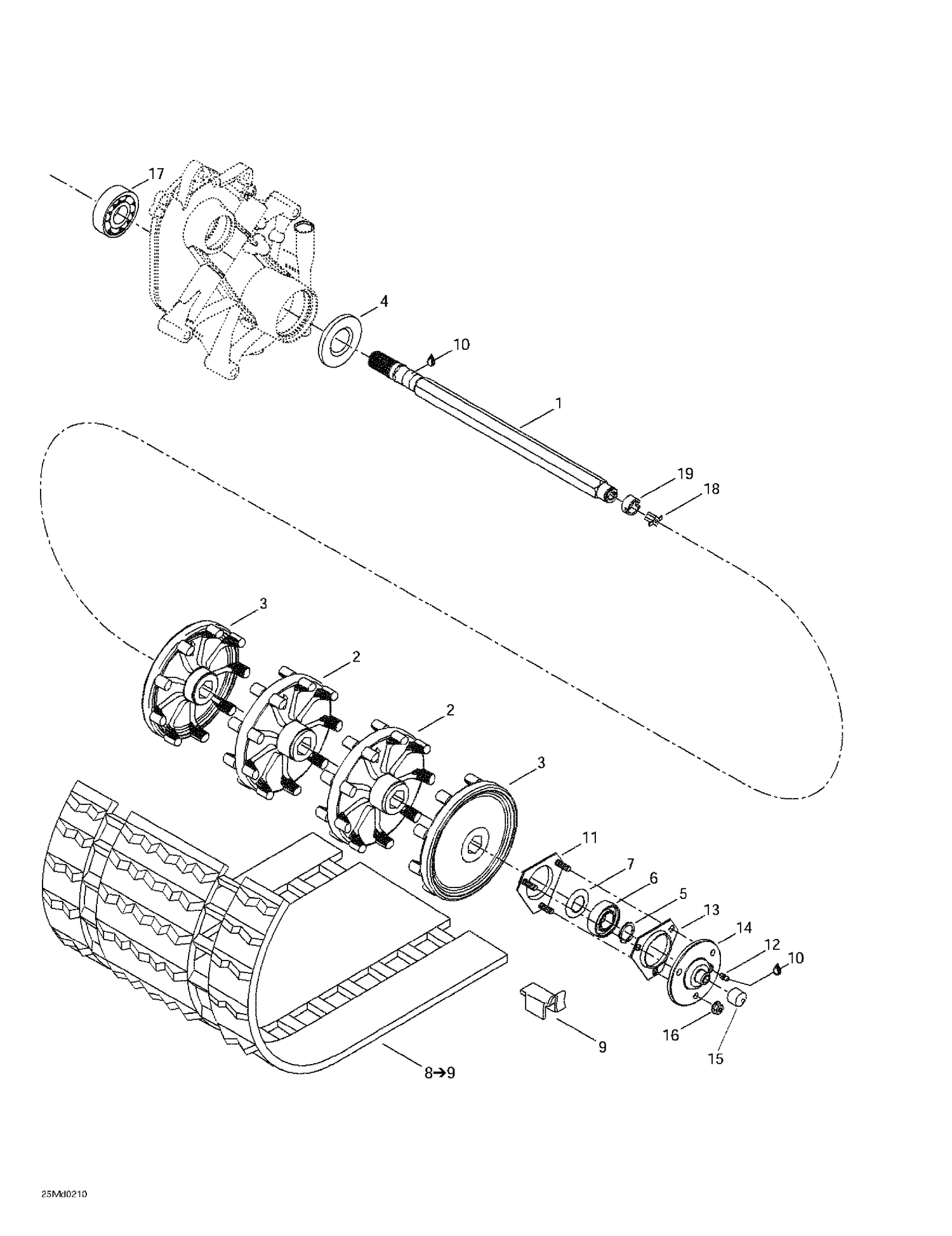

| Ref | Part Number | Description |
|---|
| 1 |
504151792 |
DRIVE AXLE - Call your local BRP dealership |
| 2 |
504151803 |
Barbotin 9 dents |
| 3 |
504151834 |
Demi-barbotin 9 dents |
| 4 |
504151918 |
Oil Seal Ass'y |
| 5 |
371910200 |
CIRCLIP - Call your local BRP dealership |
| 6 |
293350060 |
Ball Bearing This part replaces 504152009. |
| 7 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 9 |
415129528 |
Track Guide This part replaces 500003400. |
| 10 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 11 |
504151860 |
BEARING HOUSING - Call your local BRP dealership |
| 12 |
408200700 |
Grease Fitting |
| 13 |
501025000 |
FLANGE - Call your local BRP dealership |
| 14 |
504151836 |
Flange, Speedo Drive Insert |
| 15 |
504151825 |
Cap |
| 16 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 17 |
504152005 |
Ball Bearing |
| 18 |
572010100 |
SPEEDO DRIVE INSERT - Call your local BRP dealership |
