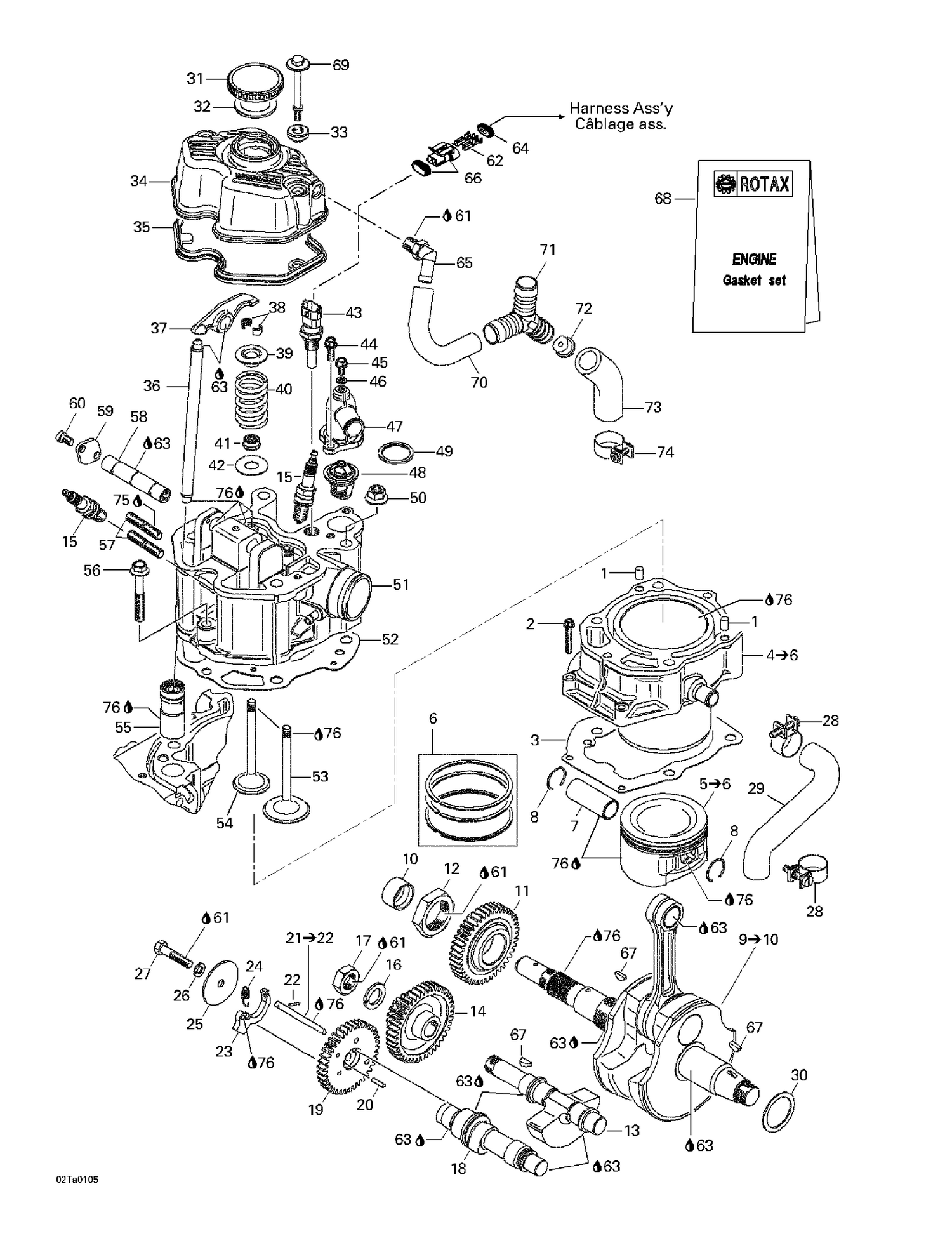

01- Crankshaft, Pistons And Cylinder
Parts (71)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420632010 | Center Pin 8 X 12 This part replaces 290632010. |
| 2 | 711941126 | Hex. Flange Screw M6 x 35 |
| 3 | 711650430 | CYLINDER GASKET - Call your local BRP dealership |
| 6 | 711296114 | Piston Ring Set |
| 7 | 420216225 | Piston Pin This part replaces 711216225. |
| 8 | 711245431 | Circlip 22 mm |
| 10 | 711247070 | Spacer |
| 11 | 711635011 | Mating Gear (42 Teeth) |
| 12 | 711842605 | Nut M34 |
| 13 | 711220470 | Balance Shaft |
| 14 | 711635100 | Balancing Gear Double |
| 15 | 707000008 | Spark Plug NGK DR8EA |
| 16 | 290945757 | Lock Washer 18 mm |
| 17 | 420942220 | HEX. NUT M18 - Call your local BRP dealership |
| 18 | 711220462 | Cam Shaft |
| 19 | 711634955 | Cam Shaft Gear (38 Teeth) |
| 20 | 420232420 | Needle Pin |
| 22 | Not | Available As Spare Part - Groove Pin |
| 23 | 711231050 | Centrifugal Weight |
| 24 | 711239570 | Tension Spring |
| 25 | 711244260 | Washer |
| 26 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
| 27 | 207084044 | Hex. Screw M8 X 40 |
| 28 | 711951760 | Clamp |
| 29 | 711222285 | Water Cooling Hose |
| 30 | 711427505 | Adjusting Washer 35 x 45 x 1.3 |
| 32 | 711650990 | Gasket Ring |
| 33 | 711260050 | Rubber Bushing |
| 34 | 711211835 | Valve Cover |
| 35 | 711650450 | Valve Cover Gasket |
| 36 | 711854575 | Push Rod |
| 37 | 711254083 | Rocker Arm |
| 38 | 711253090 | Valve Cotter |
| 39 | 711254100 | Valve Spring Retainer |
| 40 | 711239500 | Valve Spring |
| 41 | 420230810 | Valve Seal |
| 42 | 420227980 | THRUST WASHER - Call your local BRP dealership This part replaces 711227980. |
| 43 | 278002895 | Temperature Sensor This part replaces 711222425. |
| 44 | 711241751 | Hex. Flange Screw M6 x 16 |
| 45 | 711241751 | Hex. Flange Screw M6 x 16 |
| 46 | 404146600 | Sealing Washer |
| 47 | 711222560 | Thermostat Cover |
| 49 | 420650300 | Thermostat Gasket This part replaces 711650300. |
| 50 | 233101414 | Hex. Flange Nut M10 |
| 51 | 711613375 | Cylinder Head |
| 52 | 711650446 | Cylinder Head Gasket |
| 53 | 711254050 | Inlet Valve 42 mm |
| 54 | 711254062 | Inlet Valve 34 mm |
| 55 | 420854099 | Valve Hydraulic Tappet This part replaces 711854090. |
| 56 | 420240326 | Hex. Flange Screw M8 X 53.5 |
| 57 | 711940366 | Stud M8 x 23 |
| 58 | 711254110 | Rocker Arm Shaft |
| 59 | 711244250 | Holding Strip |
| 60 | 711241681 | Socket Head Screw M6 x 10 |
| 61 | 293800060 | Loctite 243, 10 ml |
| 62 | 278000998 | Female Terminal |
| 63 | 219704464 | Was 420297616 Klueber Grease, 60g |
| 64 | 278000999 | Wire Seal |
| 65 | 420922242 | Angular Tube This part replaces 420922245. |
| 66 | 278001005 | Male Housing, 2 Circuits |
| 67 | 420246570 | Woodruff Key 4 X 5 This part replaces 711246570. |
| 68 | 711296373 | Engine Gasket Set |
| 69 | 420240906 | DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership This part replaces 711240901. |
| 70 | 711222610 | Formed Hose |
| 71 | 711874380 | Y Fitting |
| 72 | 711222590 | Fitting |
| 73 | 711222600 | Formed Hose |
| 74 | 711251222 | Gear Clamp |
| 75 | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
| 711427506 | Adjusting | Washer 35 x 45 x 1.5 711427506 |
| 711427507 | Adjusting | Washer 35 x 45 x 1.8 711427507 |
