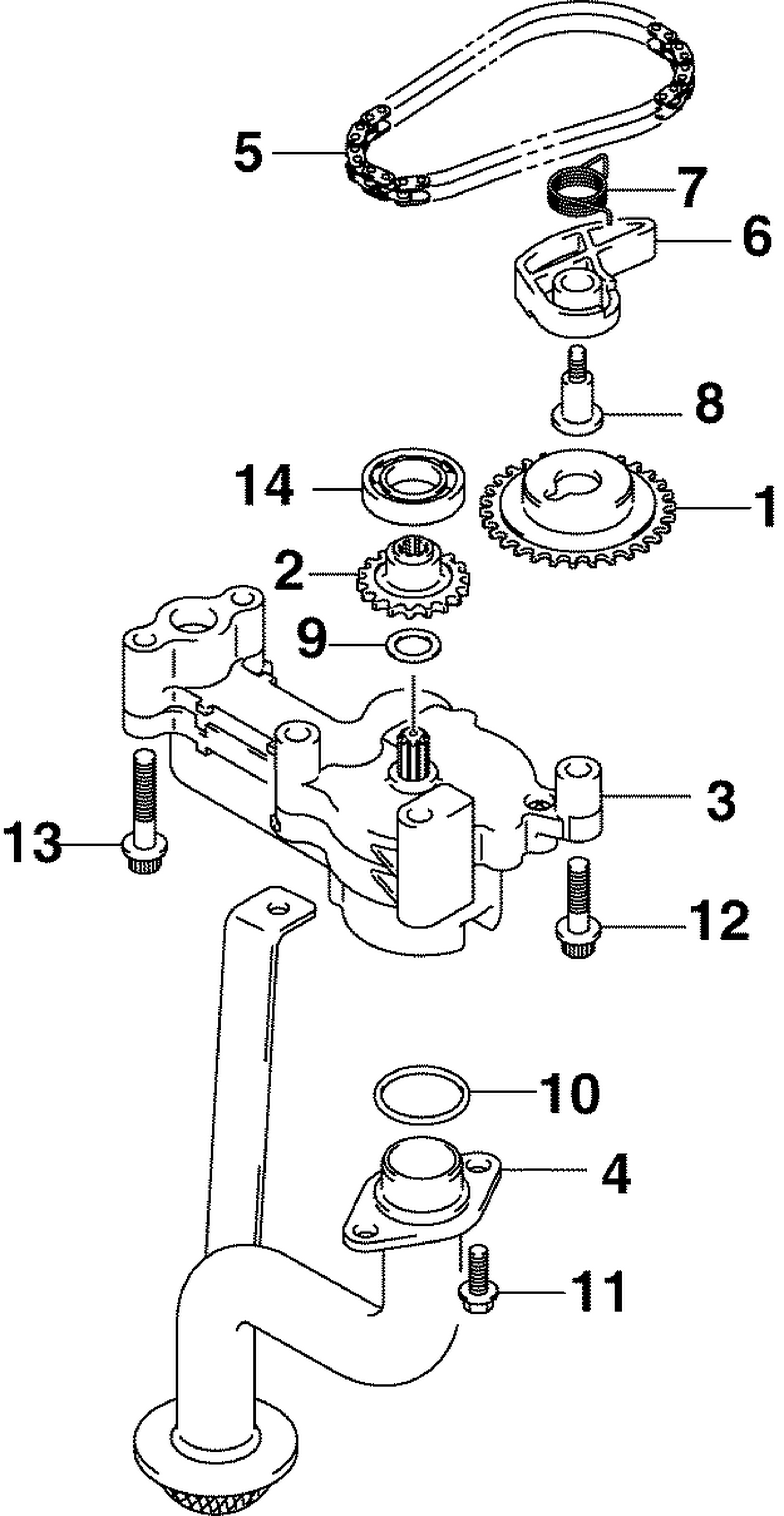

OIL PUMP
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5034900 | SPROCKET, OIL PUMP DRIVE |
| 2 | 5035018 | SPROCKET, OIL PUMP DRIVEN |
| 3 | 5035019 | PUMP ASSY, OIL |
| 4 | 5035024 | STRAINER, OIL PUMP |
| 5 | 5035030 | Chain |
| 6 | 5035031 | TENSIONER, OIL PUMP CHAIN |
| 7 | 5035032 | SPRING, OIL PUMP TENSIONER |
| 8 | 5035033 | BOLT, OIL PUMP TENSIONER |
| 9 | 5033600 | SHIM, (12X20.0.5mm) |
| 10 | 5033610 | O RING |
| 11 | 5034125 | BOLT |
| 12 | 5035654 | BOLT, OIL PUMP (Short) |
| 13 | 5035655 | BOLT, OIL PUMP (Long) |
