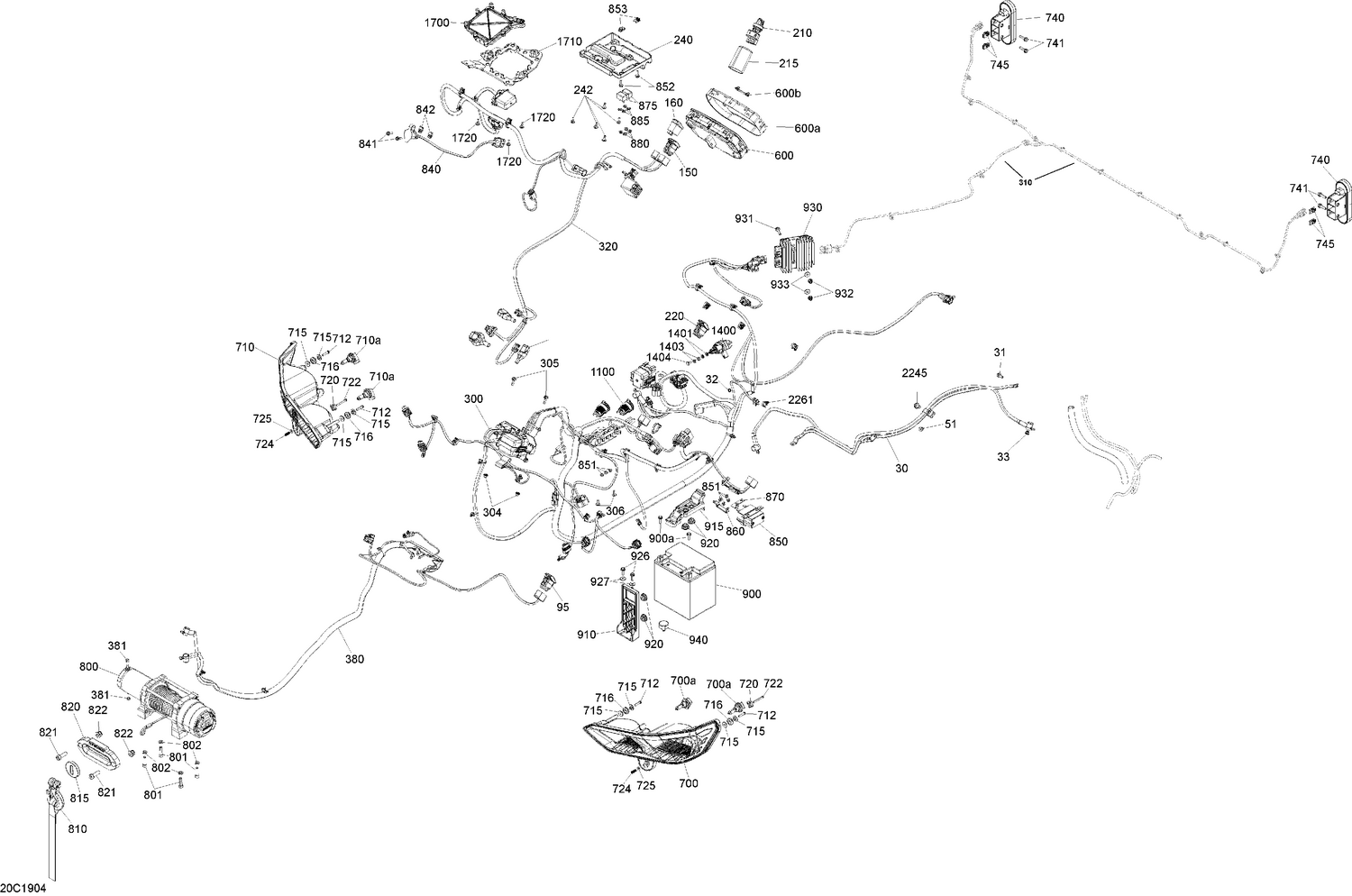

10- Electrical - HD10 - XMR
Parts (80)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 710005512 | Negative Cable |
| 31 | 207501644 | Hex. Flange Screw M10 X 16, Scotch Grip |
| 32 | 234461608 | External Serrated Lock Washer 6 mm |
| 33 | 232561414 | Elastic Stop Nut M6 |
| 51 | 232561414 | Elastic Stop Nut M6 |
| 90 | 710004492 | Light Switch |
| 95 | 710002052 | Switch Winch |
| 150 | 710004814 | Interrupteur 2 X 4 |
| 150 | 710006040 | Differential Switch |
| 160 | 710005903 | Differencial Mode Switch |
| 165 | 710005470 | Differential Lock Switch |
| 210 | 710007870 | Inter Allumage *Ignition This part replaces 710004198. |
| 215 | 710005739 | Key Switch Protector |
| 220 | 715004445 | Commutateur 3 modes This part replaces 710004532. |
| 240 | 710004741 | Housing Support |
| 242 | 250000959 | Screw PT Type K-50 X 16 |
| 300 | 710006159 | Wiring Harness Main |
| 304 | 250100198 | Panel Nut M6 X 1.0 |
| 305 | 207662044 | Hex. Flange Screw M6 X 20 |
| 306 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 310 | 710004458 | Rear Harness |
| 380 | 710006258 | Winch Harness |
| 381 | 232561434 | Elastic Stop Nut M6 |
| 600a | 415129349 | Lens |
| 600b | 415129355 | Speedometer Button |
| 600c | 415129348 | Gauge Ring |
| 700a | 219800149 | Halogen Bulb H8 12V 35W |
| 710a | 219800149 | Halogen Bulb H8 12V 35W |
| 712 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 715 | 710004749 | Shoulder Bushing |
| 716 | 709000582 | Grommet This part replaces 293720053. |
| 720 | 572106600 | Handle |
| 722 | 250000718 | Hex. Screw K40 X 45 |
| 724 | 517168600 | Spring |
| 725 | 234042600 | Flat Washer 4 mm, Stainless |
| 740 | 710004257 | Tail Light |
| 741 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 745 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 800 | 710006990 | Electric Winch This part replaces 710005659. |
| 801 | 205083044 | Socket Head Screw M8 X 30 |
| 802 | 234181401 | Lock Washer 8 mm |
| 810 | 705014949 | Winch Hook Kit This part replaces 715003523. |
| 811 | 705014949 | Winch Hook Kit This part replaces 715003523. |
| 812 | 705014949 | Winch Hook Kit This part replaces 715003523. |
| 815 | 710007028 | Stopper This part replaces 710005142. |
| 820 | 715006426 | Winch Rope Guide Kit This part replaces 715004449. |
| 821 | 205003044 | Socket Screw M10 x 30 |
| 822 | 233201414 | Hex. Flange Elastic Nut M10 |
| 840 | 715006504 | Remote Control & Connector_Winch Kit This part replaces 710004823. |
| 841 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 842 | 250000958 | Panel Nut M5 X 0.8 |
| 850 | 710006991 | Solenoid This part replaces 703500947. |
| 851 | 232561200 | Brass Elastic Stop Nut M6 |
| 852 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 853 | 250000958 | Panel Nut M5 X 0.8 |
| 860 | 710004772 | Power Bar |
| 865 | 710004872 | Power Bar |
| 870 | 710004873 | Power Bar |
| 875 | 710007039 | Circuit Breaker 50 Amp This part replaces 703500948. |
| 880 | 250100071 | Hex. Flange Nut M5 |
| 885 | 234161601 | Lock Washer Helical M6 |
| 900a | 515176081 | Battery Bolt Kit |
| 910 | 710004788 | Fixation Plate |
| 915 | 710004789 | Fixation Plate |
| 920 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 926 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 927 | 234062410 | Flat Washer 6 mm |
| 930 | 710005842 | Voltage Regulator |
| 931 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 932 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 933 | 234062410 | Flat Washer 6 mm |
| 940 | 708001827 | Rubber Stopper |
| 1100 | 710001248 | DC Outlet |
| 1400 | 278003012 | Starter Relay |
| 1401 | 234161601 | Lock Washer Helical M6 |
| 1403 | 232061600 | Hex. Nut M6 |
| 1404 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 1700 | 710006479 | Front Drive Module |
| 1710 | 710005532 | FDM Support |
| 1720 | 250000959 | Screw PT Type K-50 X 16 |
