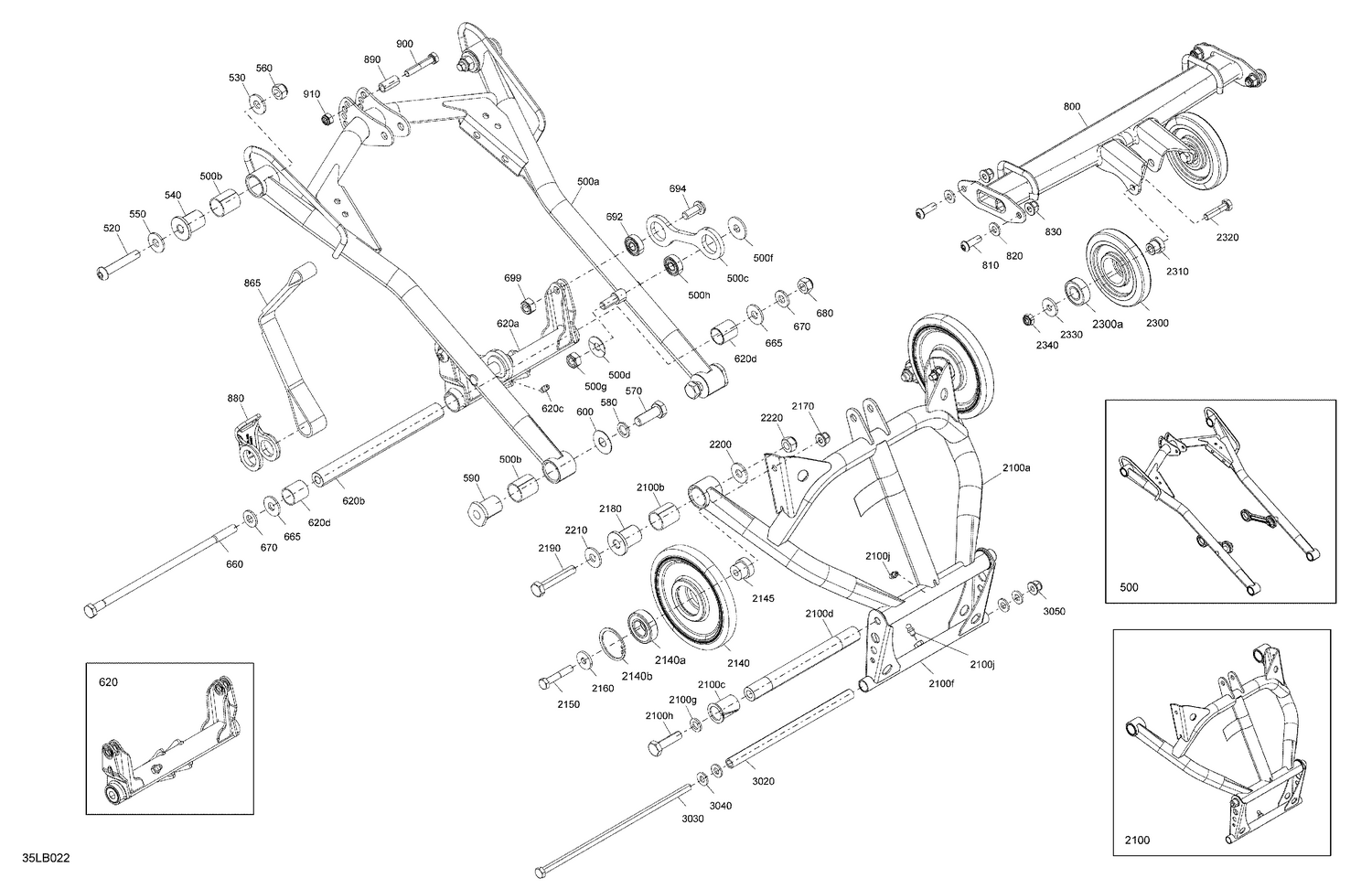

05- Suspension - Rear - Upper Section
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 500a | 503196155 | Front Suspension Arm |
| 500b | 503191554 | Bushing |
| 500c | 503196428 | Link Rod |
| 500d | 25004 | Cup Spring |
| 500f | 234002410 | Flat Washer 10 mm |
| 500g | 233401414 | Lock Spring Nut M10 |
| 500h | 503194696 | Bearing |
| 520 | 207006056 | Hex. Cap Screw M10 X 60 |
| 530 | 503191926 | Washer |
| 540 | 503190698 | Axle |
| 550 | 503191926 | Washer |
| 560 | 233601466 | Elastic Locking Nut M10 |
| 570 | 250000537 | Hex. Cap Screw M12 X 35 |
| 580 | 503192491 | Washer |
| 590 | 503191966 | Lower Axle |
| 600 | 503190656 | Washer |
| 620a | 503196425 | Front Pivot Arm |
| 620b | 503193893 | Lower Shaft |
| 620c | 408200700 | Grease Fitting |
| 620d | 503196217 | Glide Bearing |
| 660 | 503193227 | Bolt M10 X 251MM |
| 665 | 503191926 | Washer |
| 670 | 250200138 | Washer |
| 680 | 233601466 | Elastic Locking Nut M10 |
| 692 | 503194696 | Bearing |
| 694 | 205402546 | Socket Screw BN.HD.ISO.7380 |
| 699 | 232500416 | Elastic Stop Nut M10 |
| 800 | 503196424 | Central Beam |
| 810 | 250001126 | Torx Screw Button Head M8 X 25 |
| 820 | 503192494 | Washer |
| 830 | 233281414 | Hex. Flange Elastic Nut M8 |
| 865 | 605355116 | Courroie De Limitation |
| 880 | 503194867 | Holder, Limiter Strap |
| 890 | 605455335 | Sleeve |
| 900 | 207084544 | Hex. Screw M8 X 45 |
| 910 | 232581414 | Hex. Elastic Stop Nut M8 |
| 2100a | 503196162 | Rear Suspension Arm |
| 2100b | 503191554 | Bushing |
| 2100c | 503191640 | Cushion |
| 2100d | 503196223 | Lower Shaft |
| 2100f | 503196433 | Pivot Arm |
| 2100g | 503192496 | Washer |
| 2100h | 205503554 | Socket Head Screw M10 X 35 |
| 2100j | 408200700 | Grease Fitting |
| 2140a | 503190396 | Ball Bearing |
| 2140b | 415129371 | Retaining Ring |
| 2145 | 605454461 | Sleeve |
| 2150 | 207084544 | Hex. Screw M8 X 45 |
| 2160 | 20077 | M8 Washer |
| 2170 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2180 | 503190698 | Axle |
| 2190 | 207006056 | Hex. Cap Screw M10 X 60 |
| 2200 | 503191926 | Washer |
| 2210 | 503191926 | Washer |
| 2220 | 233601466 | Elastic Locking Nut M10 |
| 2300a | 405404600 | Ball Bearing |
| 2310 | 503193330 | Sleeve |
| 2320 | 207083544 | Hex. Screw M8 X 35 |
| 2330 | 20077 | M8 Washer |
| 2340 | 232581414 | Hex. Elastic Stop Nut M8 |
| 3020 | 503196358 | Pivot Arm Axle |
| 3030 | 503192440 | Bolt M8 X 248mm |
| 3040 | 503192494 | Washer |
