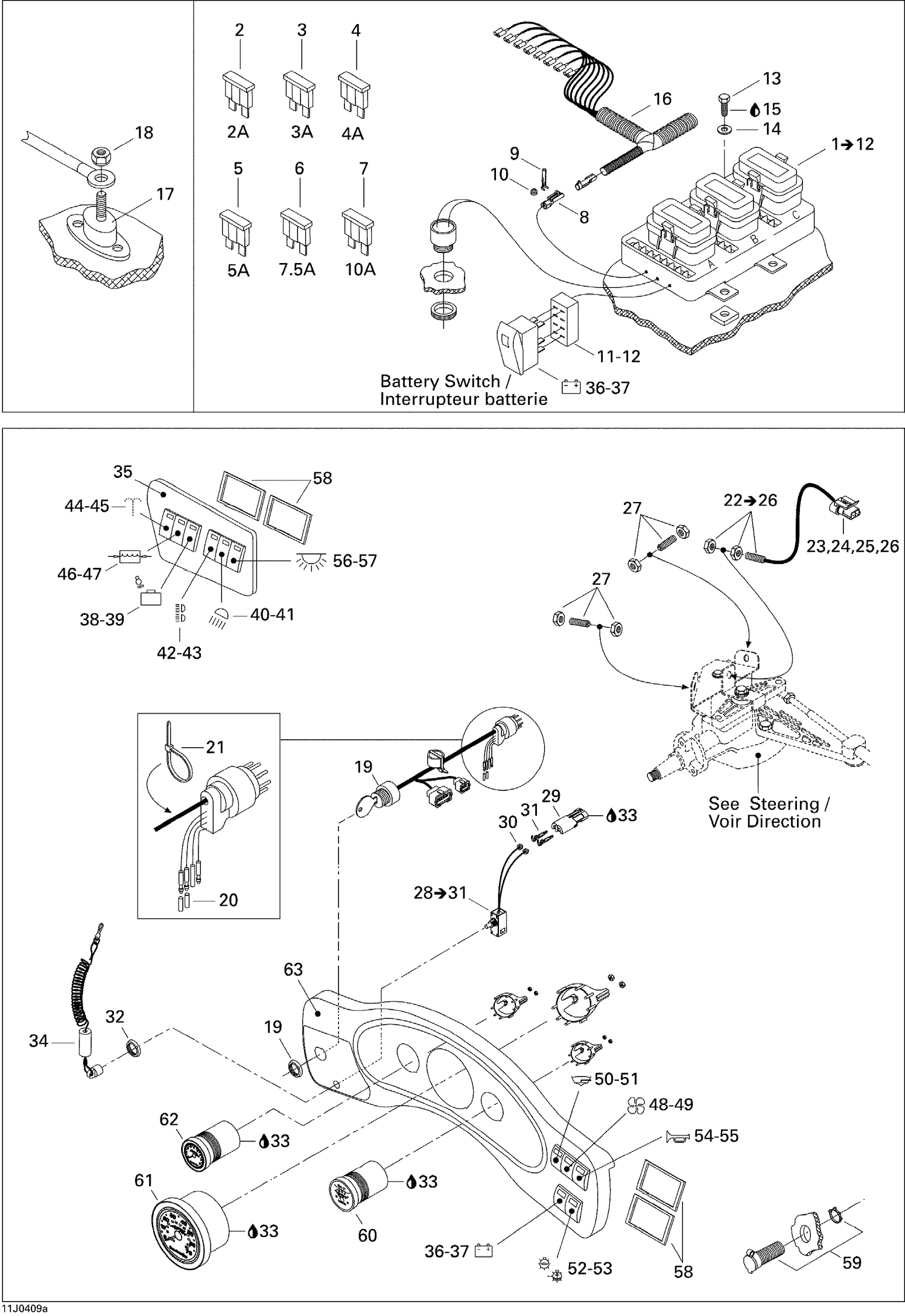

| Ref | Part Number | Description |
|---|
| 2 |
278001442 |
FUSE, 2 AMPERES - Call your local BRP dealership |
| 3 |
278001196 |
FUSE, 3 AMPERES - Call your local BRP dealership |
| 4 |
Not |
Available As Spare Part - Fuse (4 Amperes) |
| 5 |
278000344 |
Fuse, 5 Amperes |
| 6 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 7 |
278001197 |
Fuse, 10 Amperes |
| 8 |
Not |
Available As Spare Part - Female Terminal Housing (1 Circuit) |
| 9 |
409012900 |
Male Terminal |
| 10 |
Not |
Available As Spare Part - Wire Seal |
| 11 |
278001321 |
MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership |
| 12 |
Not |
Available As Spare Part - Female Terminal |
| 13 |
207161260 |
Hex. Cap Screw M6 X 12 |
| 14 |
234062600 |
Flat Washer M6, Stainless |
| 15 |
293800060 |
Loctite 243, 10 ml |
| 16 |
204470832 |
Harness |
| 17 |
204470715 |
Ground Post |
| 18 |
204100032 |
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership |
| 19 |
204470800 |
Instrument Harness, Mercury |
| 20 |
204130033 |
RUBBER CAP - Call your local BRP dealership |
| 21 |
293750001 |
Tie Wrap 94 mm |
| 23 |
204470634 |
Female Terminal Housing |
| 24 |
204470635 |
Terminal Support |
| 25 |
204470641 |
Wire Seal |
| 26 |
278001481 |
Female Terminal |
| 27 |
204470632 |
Low Speed Control Actuator |
| 29 |
278000217 |
Female Housing, 2 Circuits |
| 30 |
278000218 |
Wire Seal |
| 31 |
278000222 |
Male Terminal |
| 32 |
278000099 |
Safety Switch Nut |
| 33 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 34 |
278001431 |
Safety Lanyard |
| 35 |
204470793 |
Switch Panel |
| 37 |
204470132 |
Gasket |
| 39 |
204470132 |
Gasket |
| 41 |
204470132 |
Gasket |
| 43 |
204470132 |
Gasket |
| 45 |
204470132 |
Gasket |
| 47 |
204470132 |
Gasket |
| 49 |
204470132 |
Gasket |
| 51 |
204470132 |
Gasket |
| 53 |
204470132 |
Gasket |
| 55 |
204470132 |
Gasket |
| 57 |
204470132 |
Gasket |
| 58 |
204470343 |
LOCKING PLATE - Call your local BRP dealership |
| 59 |
710001248 |
DC Outlet This part replaces 204470907. |
| 60 |
204470806 |
Oil/Fuel Gauge |
| 61 |
204470805 |
Speedometer Gauge |
| 62 |
204470807 |
Tachometer Gauge |
