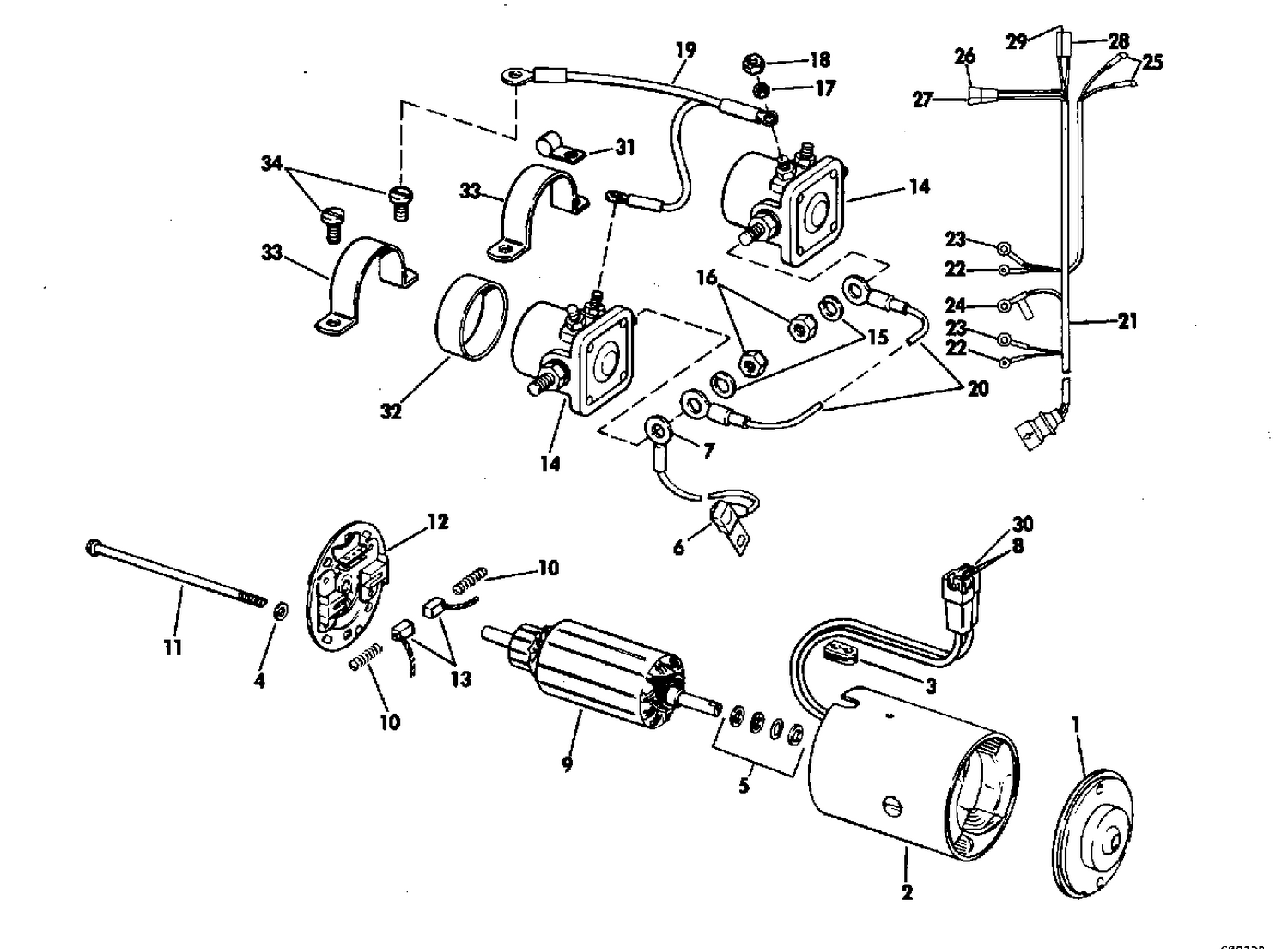

| Ref | Part Number | Description |
|---|
| 1 |
0380705 |
HEAD ASSEMBLY |
| 2 |
0382444 |
FRAME & FIELD COIL ASSEMBLY |
| 3 |
0309595 |
GROMMET |
| 4 |
0312013 |
HOUSING |
| 5 |
0380752 |
THRUST WASH AND SPACER PKG |
| 6 |
0383420 |
FUSE LEAD ASSY |
| 9 |
0382544 |
ARMATURE ASSEMBLY |
| 11 |
0382443 |
THRU BOLT PACKAGE |
| 12 |
0382545 |
HEAD ASSEMBLY COMMUTATOR END BRUSH SET |
| 16 |
0303783 |
NUT |
| 19 |
0380354 |
LEAD ASSEMBLY, Ground |
| 20 |
0981890 |
LEAAD ASSY This part replaces 0383421. |
| 21 |
0383355 |
CABLE ASSEMBLY |
| 26 |
0510472 |
CONNECTOR |
| 28 |
0510471 |
CONNECTOR |
| 29 |
0510469 |
TAB |
| 30 |
0510472 |
CONNECTOR |
| 31 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 32 |
0311217 |
MANCHON, solénoïde |
| 33 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 0382138 |
0382138 |
POWER PISTON ASSY |
| 0383363 |
0383363 |
TILT SOLENOID & CABLE ASSEMBLY |
