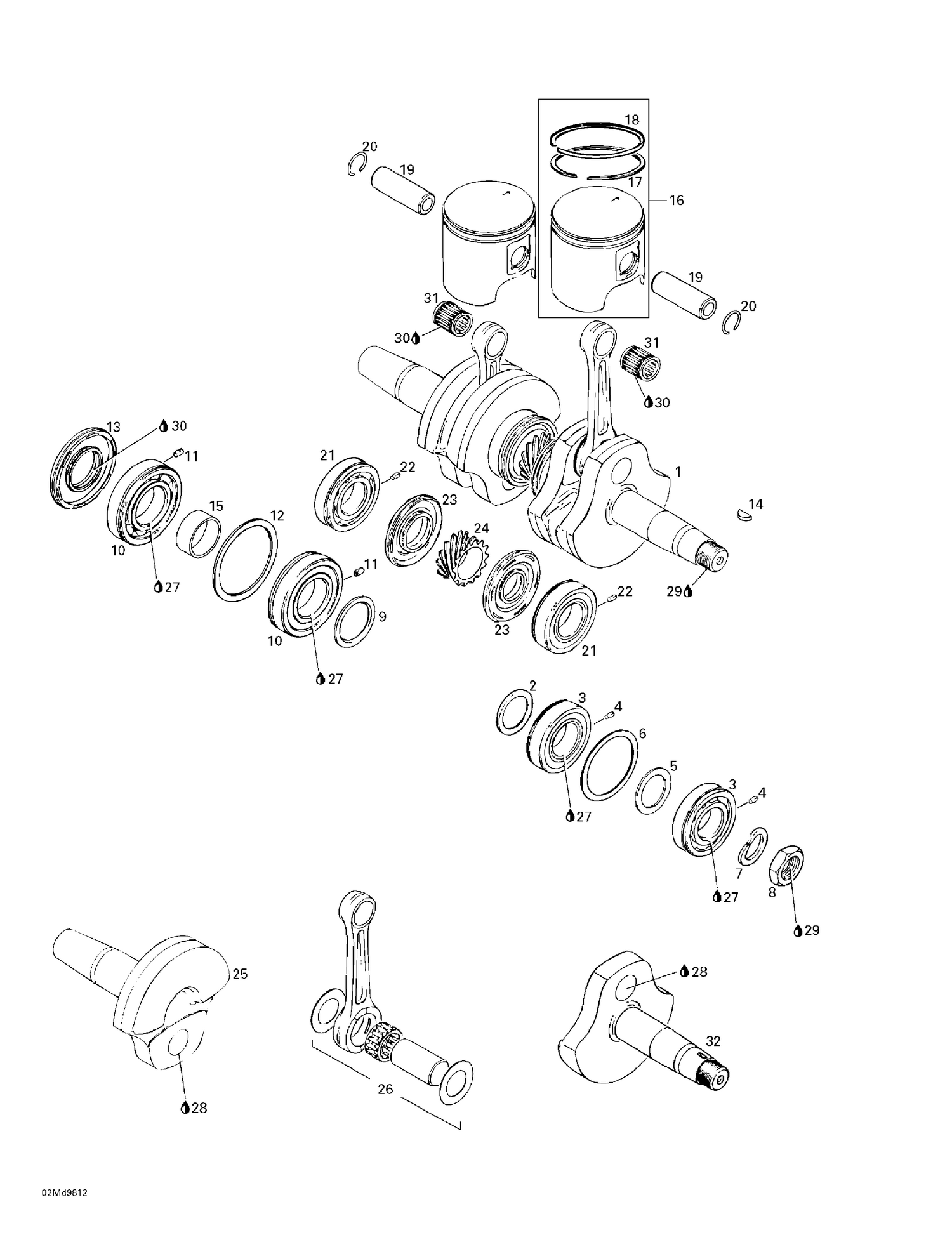

01- Crankshaft And Pistons
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420827445 | DISTANCE RING - Call your local BRP dealership |
| 4 | 420929972 | Dowel Pin |
| 5 | 420427684 | ADJUSTMENT WASHER - Call your local BRP dealership |
| 6 | 420827050 | RETAINING DISK - Call your local BRP dealership |
| 7 | 420945759 | Lock Washer, 22 mm |
| 8 | 420842239 | Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 9 | 420827760 | DISTANCE RING - Call your local BRP dealership |
| 11 | 420929972 | Dowel Pin |
| 12 | 420927710 | Retaining Disk |
| 13 | 420831952 | Oil Seal This part replaces 420831950. |
| 14 | 420246015 | Woodruff Key |
| 15 | 420847684 | Distance Sleeve |
| 17 | 420815130 | Rectangular Ring 67.5 mm |
| 18 | 420815120 | Semi-trapez ring 67.5 mm |
| 19 | 420916187 | Piston Pin |
| 20 | 420945735 | Piston Circlip |
| 22 | 420929972 | Dowel Pin |
| 23 | 420831990 | Oil Seal |
| 24 | 420935748 | Central Gear 14 Teeth |
| 25 | 420818662 | Crankshaft (PTO side) |
| 26 | 420887963 | Crankshaft Repair Kit (MAG side) |
| 27 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 28 | 219703000 | Sealant Loctite 648 This part replaces 293800039. |
| 29 | 293800060 | Loctite 243, 10 ml This part replaces 413703000. |
| 30 | 413707000 | Dow Corning 111, 150 g |
| 31 | 420832435 | Needle Cage Bearing |
| 420887964 | Crankshaft | Repair Kit (PTO side) 420887964 |
