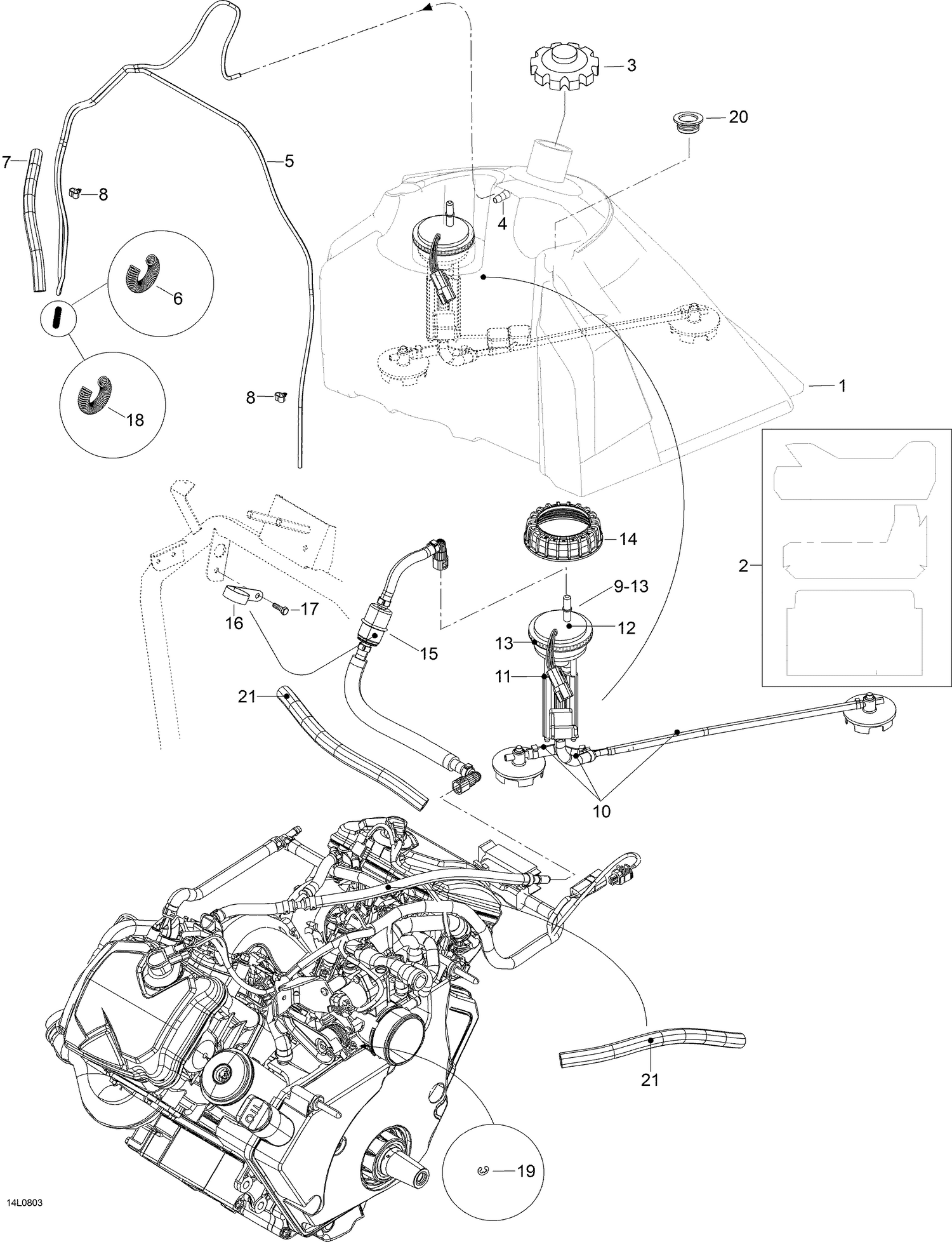

| Ref | Part Number | Description |
|---|
| 1 |
605153637 |
FUEL TANK - Call your local BRP dealership |
| 2 |
619690002 |
ISOLATION SHEET - Call your local BRP dealership |
| 3 |
513033025 |
Fuel Tank Cap This part replaces 580259400. |
| 4 |
404127600 |
NIPPLE - Call your local BRP dealership |
| 5 |
39035 |
Hose |
| 6 |
25006 |
Spring |
| 7 |
605639067 |
Aluminium tubing |
| 8 |
513032923 |
TUBE CLAMP - Call your local BRP dealership |
| 10 |
19183 |
Fuel hose kit - Call your local BRP dealership |
| 11 |
861302600 |
PUMP HOSE KIT - Call your local BRP dealership |
| 12 |
861302100 |
REGULATOR KIT - Call your local BRP dealership |
| 13 |
513033039 |
SEAL - Call your local BRP dealership |
| 14 |
513033040 |
Cover |
| 15 |
513033106 |
Fuel hose + filter |
| 16 |
513033047 |
Clamp |
| 17 |
40327 |
Hex. screw M6 x 12 |
| 18 |
25003 |
Spring |
| 19 |
414753500 |
Circlip This part replaces 31035. |
| 20 |
293720058 |
Grommet |
