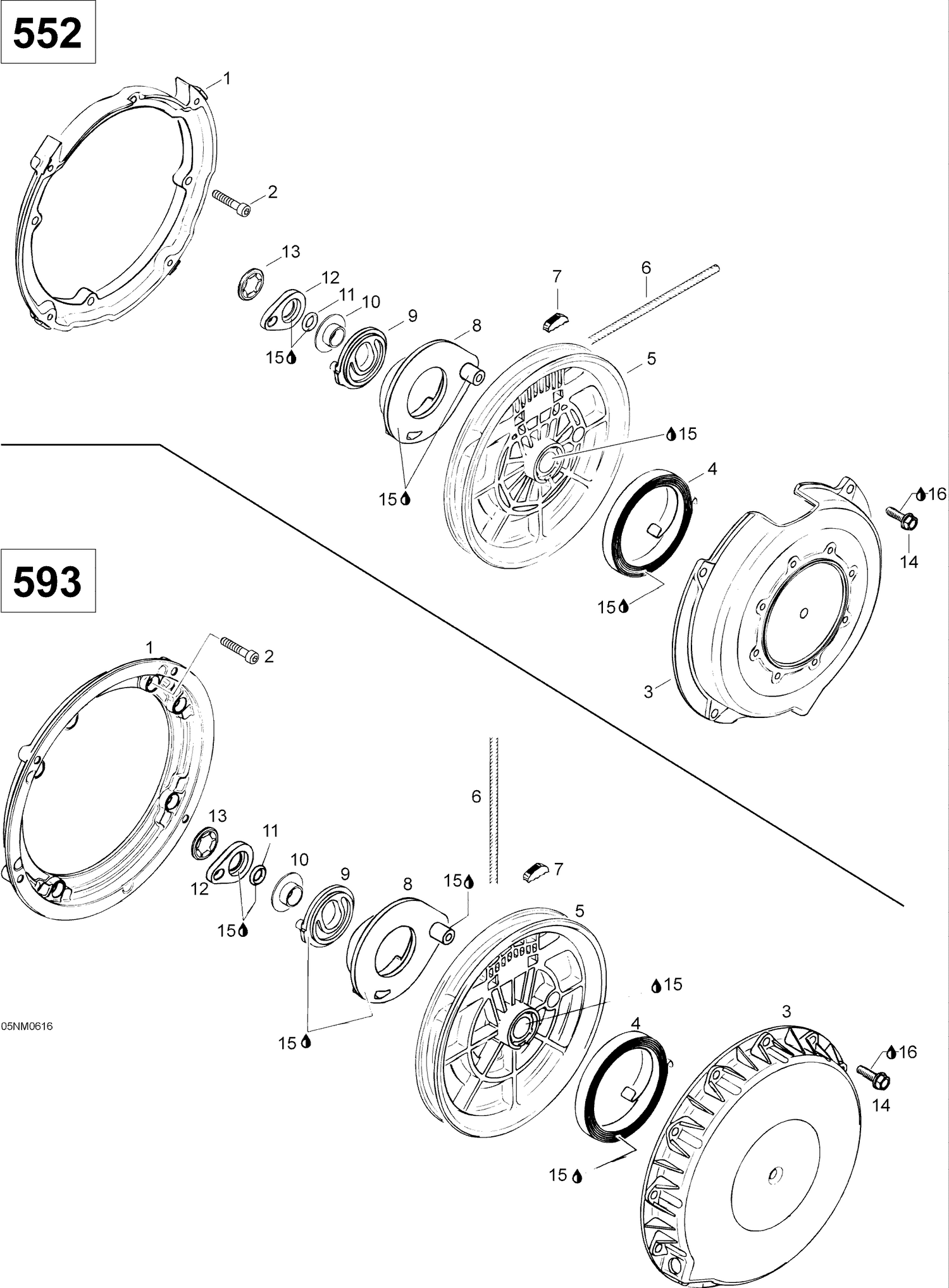

04- Rewind Starter 552
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 420939115 | Rewind Spring |
| 6 | 512500200 | Starter Rope 2200 mm |
| 9 | 420852305 | PAWL LOCK - Call your local BRP dealership |
| 10 | 420847926 | Stage Sleeve This part replaces 420847925. |
| 11 | 420250400 | O-Ring |
| 12 | 420852520 | Lock Ring |
| 13 | 420845560 | Locking Element |
| 15 | 420899763 | Molykote PG 54, 10 g |
