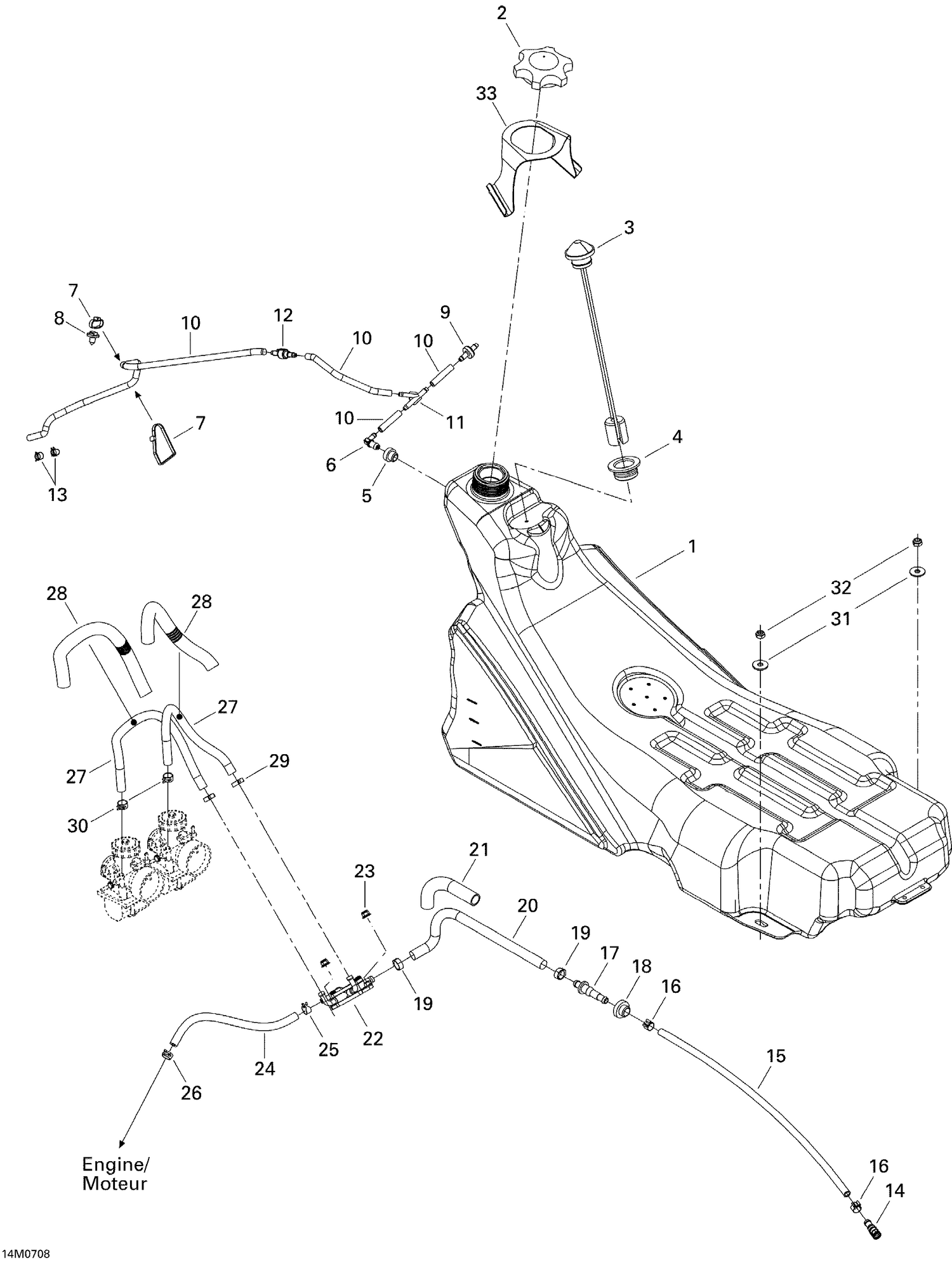

02- Fuel System
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033171 | FUEL TANK - Call your local BRP dealership |
| 2 | 513033025 | Fuel Tank Cap |
| 3 | 513033358 | FUEL GAUGE - Call your local BRP dealership This part replaces 513033092. |
| 4 | 293720058 | Grommet |
| 5 | 513032908 | Grommet |
| 6 | 414580700 | Male Connector |
| 7 | 414115200 | Tie-Rap 180 mm |
| 8 | 293730040 | Mount Dart This part replaces 293730018. |
| 9 | 275500398 | Check Valve |
| 10 | 219704410 | Polyurethane Hose 10000Mm Long |
| 11 | 293710059 | Y-Fitting |
| 12 | 275500505 | Check Valve |
| 13 | 414554800 | Spring Clamp |
| 14 | 414872100 | Fuel Filter Strainer |
| 15 | 513033070 | Hose |
| 16 | 513033010 | Norma Spring Clamp |
| 17 | 414872700 | Male Connector |
| 18 | 707800347 | Grommet This part replaces 570273900. |
| 19 | 293650053 | Crimp Clamp |
| 20 | 513033374 | Formed Hose This part replaces 513033027. |
| 21 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 22 | 403901813 | Fuel Pump |
| 23 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 24 | 513033111 | FORMED HOSE - Call your local BRP dealership |
| 25 | 414415200 | Spring Clamp |
| 26 | 513033029 | Universal Spring Clamp |
| 27 | 219704422 | HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership |
| 28 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 29 | 293650047 | Crimp Clamp, 15.3-706R |
| 30 | 513033029 | Universal Spring Clamp |
| 31 | 234082410 | Flat Washer 8 mm |
| 32 | 232581414 | Hex. Elastic Stop Nut M8 |
