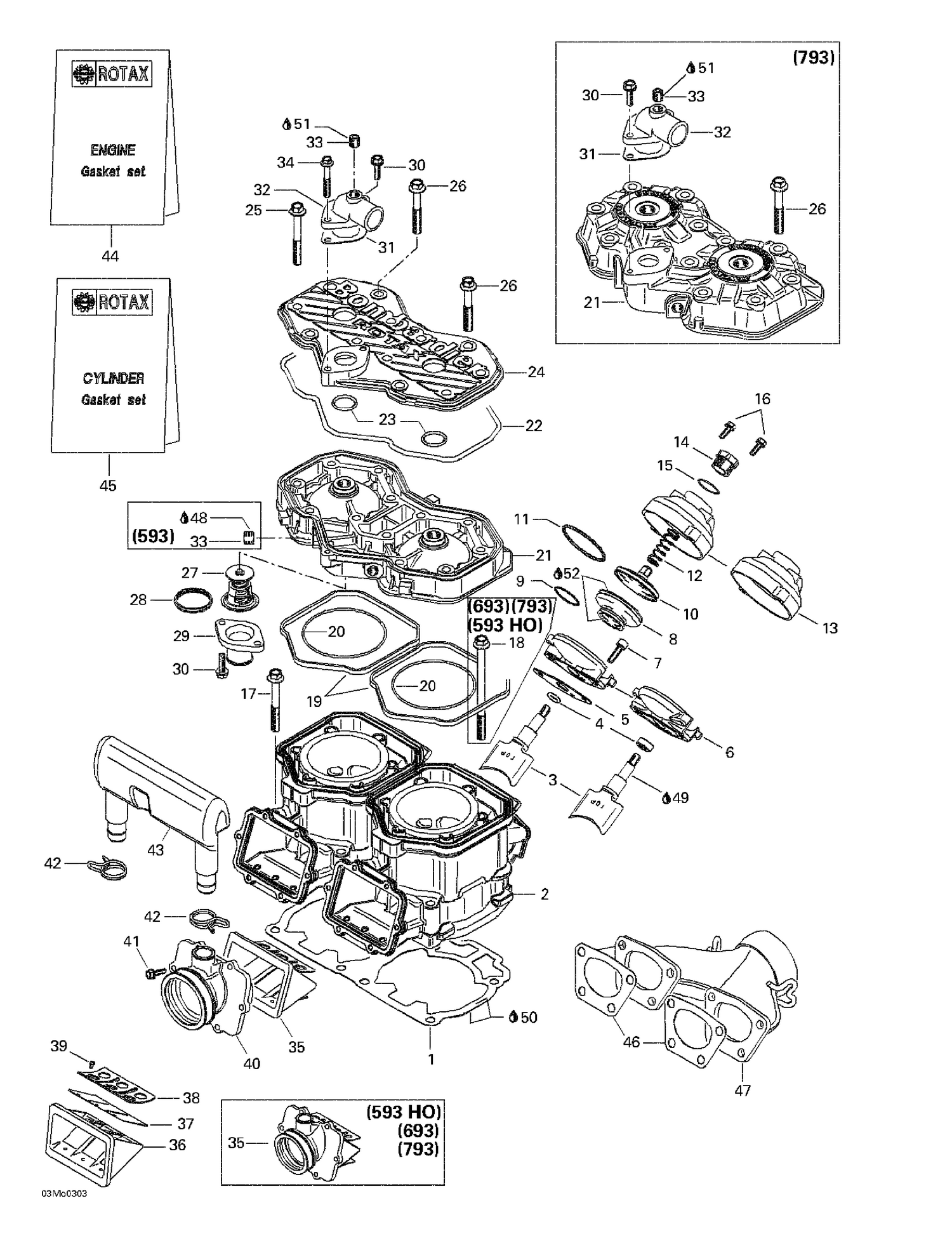

| Ref | Part Number | Description |
|---|
| 2 |
421000568 |
REBUILD-CYLINDER 493 2000 - Call your local BRP dealership |
| 9 |
420838255 |
Hose Spring This part replaces 420838253. |
| 10 |
420854449 |
Exhaust Valve |
| 11 |
420939281 |
Hose Spring This part replaces 290239048. |
| 14 |
420241221 |
Adjuster Screw |
| 19 |
420931590 |
Rubber Ring |
| 26 |
420941627 |
Hex. Screw M8 X 56.5 This part replaces 420941621. |
| 27 |
420922519 |
Thermostat This part replaces 420922517. |
| 28 |
420931272 |
Sealing Ring |
| 29 |
420922025 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 30 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 31 |
420850339 |
Gasket This part replaces 420850338. |
| 32 |
420922062 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 33 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 39 |
420941215 |
Phillips Screw M3 X 5 |
| 41 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 42 |
420851440 |
CLAMP - Call your local BRP dealership |
| 43 |
420867817 |
Intake Resonator |
| 48 |
293800060 |
Loctite 243, 10 ml |
| 49 |
420297433 |
Molykote G-N, 50 g This part replaces 711297433. |
| 51 |
420297907 |
Sealing Compound Loctite 5366 310Ml This part replaces 420297906. |
| 420613628 |
Cylinder |
With Sleeve This part replaces 421000578. 420613628 |
| 420613628 |
Cylindre |
Avec Chemise This part replaces 421000578. 420613628 |
