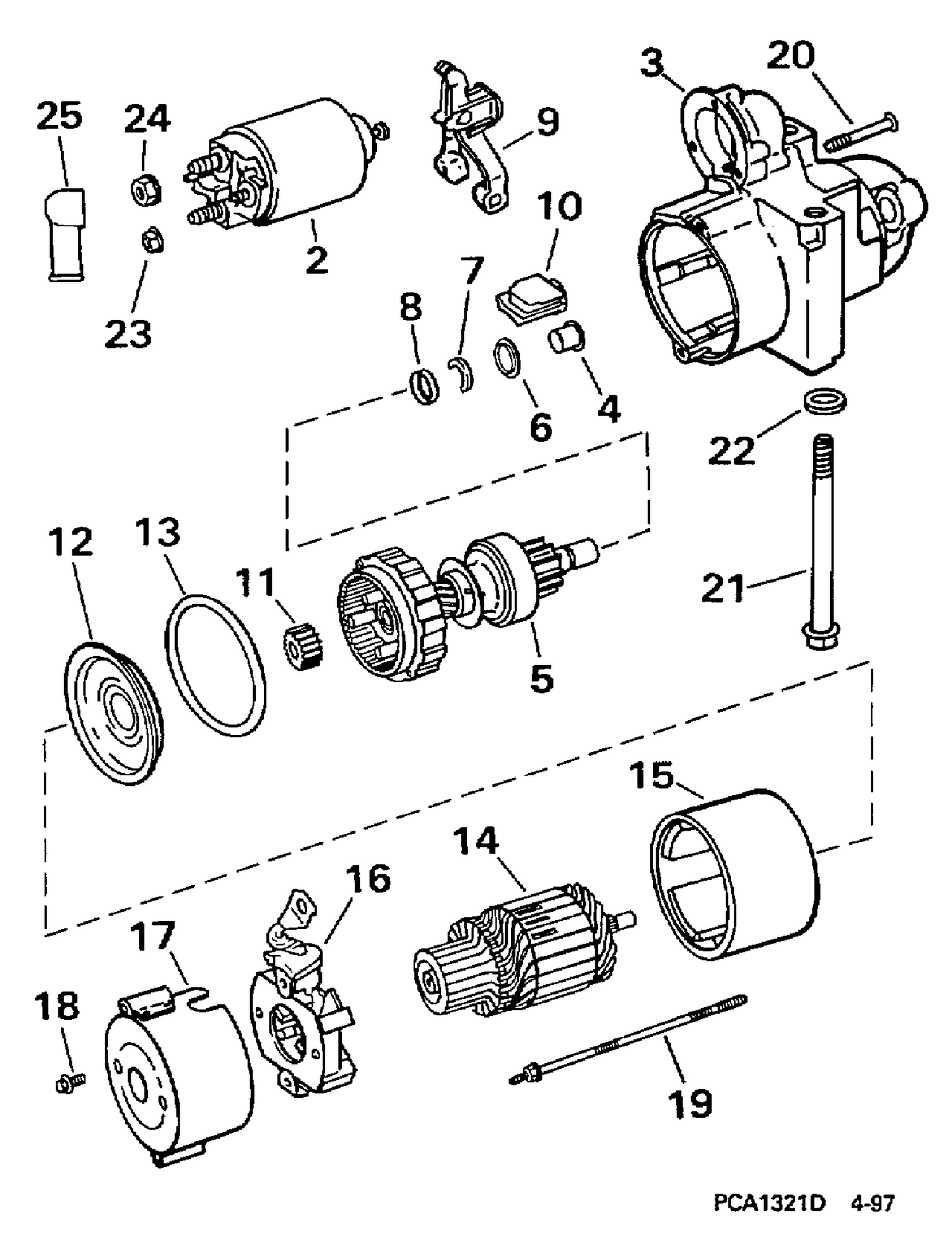

STARTER
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3860566 | Motor Ay This part replaces 3854751. |
| 2 | 3850216 | SOLENOID |
| 3 | HOUSING, | Drive |
| 4 | BEARING, | Drive |
| 5 | DRIVESHAFT | ASSY. |
| 6 | 3852724 | COLLAR THRUST |
| 7 | 3852725 | COLLAR, Pinion stop |
| 8 | 3852726 | COLLAR STOP |
| 9 | LEVER | Ref: 10 PLUG |
| 10 | 506153236 | Handle Bar |
| 11 | GEAR | Ref: 12 SHIELD |
| 13 | 3855893 | GASKET |
| 14 | ARMATURE | Ref: 15 FRAME & FIELD |
| 16 | 3855896 | BRUSH HOLDER |
| 17 | END | FRAME |
| 18 | SCREW, | Brush holder |
| 19 | 3855901 | BOLT |
| 20 | 506153352 | Grip This part replaces 506153175. |
| 21 | 3854752 | SCREW, Starter |
| 23 | 3852518 | NUT, Solenoid, metric |
| 24 | 3853714 | NUT, Solenoid |
| 25 | 506153403 | Heating Element 28W This part replaces 506153135. |
| 50 | 506153177 | Thermal Insulation |
| 400 | 860201427 | Riser Kit 120 |
| 405 | 506152867 | LH Handlebar Support |
| 406 | 506152928 | RH Handlebar Support |
| 410 | 506152894 | Steering Support |
| 420 | 250000904 | Button Head Torx Screw M8 X 38 |
| 430 | 250000852 | Hexagonal Flange Screw M8 X 1.25 x 60 |
| 520 | 506153144 | Moulding Strap Ass'y |
| 540 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 900a | 250300038 | Clinch Stud |
| 905 | 233281416 | Hex. Elastic Flanged Nut M8 |
| 1000 | 506153022 | Main Tube |
| 1010 | 506152219 | Upper Half Housing |
| 1012 | 506153048 | Lower Half Housing |
| 1014 | 506152292 | Upper Vibration Ring |
| 1016 | 506152518 | Lower Vibration Ring |
| 1020 | 506153249 | Housing Bushing |
| 1021 | 250001114 | Hex Flange Screw M6 x 75 |
| 1022 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 1030 | 506153249 | Housing Bushing |
| 1031 | 250001114 | Hex Flange Screw M6 x 75 |
| 1032 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 1040 | 506153249 | Housing Bushing |
| 1050 | 506153248 | Housing Bushing |
| 1051 | 207687044 | Hex. Flange Screw M8 X 70 |
| 1052 | 233281416 | Hex. Elastic Flanged Nut M8 |
| 1053 | 506152938 | Stopper Plate |
| 1100 | 506153294 | Cap |
| 1110 | 293150008 | Pop Rivet 3/16" |
| 1220 | 207084044 | Hex. Screw M8 X 40 |
| 1230 | 233281416 | Hex. Elastic Flanged Nut M8 |
| 1250a | 506152344 | LH Thread Ball Joint |
| 1250b | 506152684 | RH Thread Ball Joint |
| 1250c | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 1280 | 506152582 | Washer |
