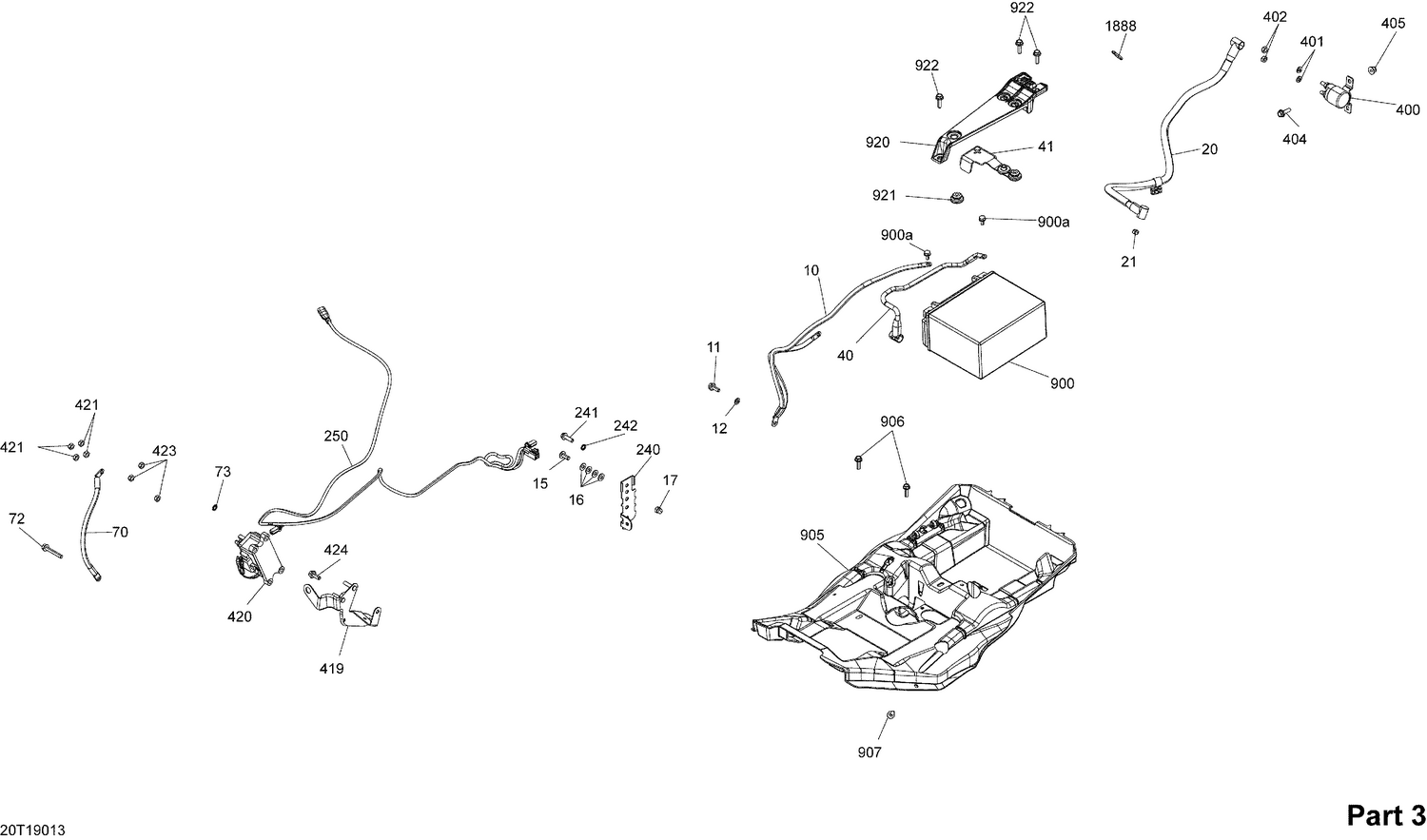

10- Electrical - 1000R EFI - Part 3
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710004382 | Ground Cable |
| 11 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 12 | 234161601 | Lock Washer Helical M6 |
| 15 | 250000717 | Torx Head Screw M6 X 16 |
| 16 | 224061121 | Flat Washer |
| 17 | 232361493 | Domed Nut M6 |
| 20 | 710004377 | Positive Cable |
| 21 | 232561414 | Elastic Stop Nut M6 |
| 41 | 710006729 | Battery Cable Cap This part replaces 710002569. |
| 72 | 210261640 | Hex. Flange Screw M6 X 16 |
| 240 | 710004118 | Connector Bracket |
| 241 | 210262040 | Hex. Flange Screw M6 X 20 |
| 242 | 234461608 | External Serrated Lock Washer 6 mm |
| 250 | 710004324 | Brake Harness |
| 400 | 710007777 | Starter Relay This part replaces 710001364. |
| 401 | 234161601 | Lock Washer Helical M6 |
| 402 | 232561414 | Elastic Stop Nut M6 |
| 404 | 207662054 | Hex. Flange Screw M6 X 20 |
| 405 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 900a | 250000282 | Battery Bolt Kit |
| 905 | 710008370 | Battery Support This part replaces 710005528. |
| 906 | 210262050 | Hexagonal Head Screw |
| 907 | 293830005 | Rubber Bumper |
| 920 | 710009129 | Retaining Plate This part replaces 710002404. |
| 921 | 705014429 | Rubber Stopper This part replaces 705003666. |
