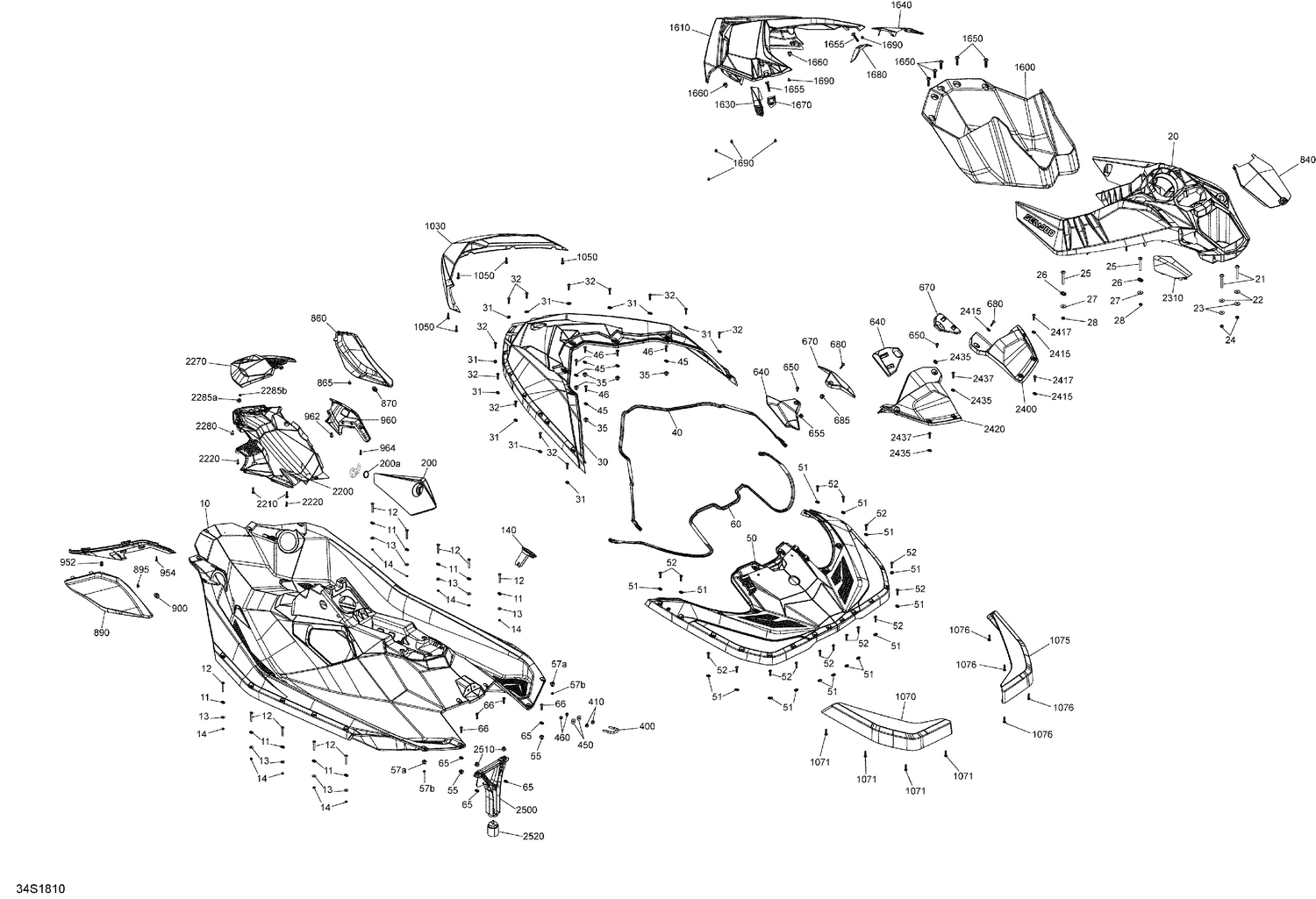

| Ref | Part Number | Description |
|---|
| 10 |
291004646 |
Deep Black, Mid Deck |
| 11 |
291003880 |
Oval Washer |
| 12 |
250000827 |
Torx Screw Truss Cone HD.M6X50 This part replaces 250000708. |
| 13 |
234062600 |
Flat Washer M6, Stainless |
| 14 |
232561200 |
Brass Elastic Stop Nut M6 |
| 20 |
291005057 |
Console Front This part replaces 291004493. |
| 21 |
250000827 |
Torx Screw Truss Cone HD.M6X50 This part replaces 250000708. |
| 22 |
250200150 |
Flat Washer M6, Stainless |
| 23 |
234062600 |
Flat Washer M6, Stainless |
| 24 |
232561200 |
Brass Elastic Stop Nut M6 |
| 25 |
250000827 |
Torx Screw Truss Cone HD.M6X50 This part replaces 250000708. |
| 26 |
291003880 |
Oval Washer |
| 27 |
234062600 |
Flat Washer M6, Stainless |
| 28 |
232561200 |
Brass Elastic Stop Nut M6 |
| 31 |
291003880 |
Oval Washer |
| 32 |
250001007 |
Screw Torx M6.81 X 30 This part replaces 250000709. |
| 35 |
291003793 |
Insert |
| 40 |
293250341 |
Seal Joint |
| 45 |
291003880 |
Oval Washer |
| 46 |
250001007 |
Screw Torx M6.81 X 30 This part replaces 250000709. |
| 51 |
291003880 |
Oval Washer |
| 52 |
250001007 |
Screw Torx M6.81 X 30 This part replaces 250000709. |
| 60 |
293250340 |
Seal Joint |
| 65 |
291003880 |
Oval Washer |
| 140 |
291003390 |
Deep Black, Rear Access Cover |
| 200a |
293300121 |
O-Ring |
| 400 |
292000933 |
U-Clamp |
| 410 |
293050001 |
Flat Washer M8.5 x 18 |
| 450 |
234082600 |
Flat Washer 8 mm, Stainless |
| 460 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 650 |
250001007 |
Screw Torx M6.81 X 30 This part replaces 250000709. |
| 655 |
291003793 |
Insert |
| 680 |
250001007 |
Screw Torx M6.81 X 30 This part replaces 250000709. |
| 685 |
291003793 |
Insert |
| 840 |
291003378 |
Deep Black, Glove Box Cover |
| 865 |
293830005 |
Rubber Bumper |
| 870 |
705000321 |
Oval Washer |
| 895 |
293830005 |
Rubber Bumper |
| 900 |
705000321 |
Oval Washer |
| 950 |
291004524 |
Bright White, LH Panel Trim |
| 952 |
293150230 |
Tuflok Plastic Rivet |
| 954 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 960 |
291004525 |
Bright White, RH Panel Trim |
| 962 |
293150230 |
Tuflok Plastic Rivet |
| 964 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 1030 |
291004567 |
Front Bumper |
| 1050 |
250001007 |
Screw Torx M6.81 X 30 This part replaces 250000709. |
| 2200 |
291004575 |
Black, Inferior Cover |
| 2210 |
250001007 |
Screw Torx M6.81 X 30 This part replaces 250000709. |
| 2220 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 2280 |
250000829 |
Torx-Truss M/S Stlss M6 X 20 |
| 2285a |
269500252 |
M6 Nut Housing Ass'y |
| 2285b |
232561200 |
Brass Elastic Stop Nut M6 |
| 2310 |
291003702 |
Cap |
| 2500 |
291003440 |
Rear Support |
| 2510 |
291003793 |
Insert |
