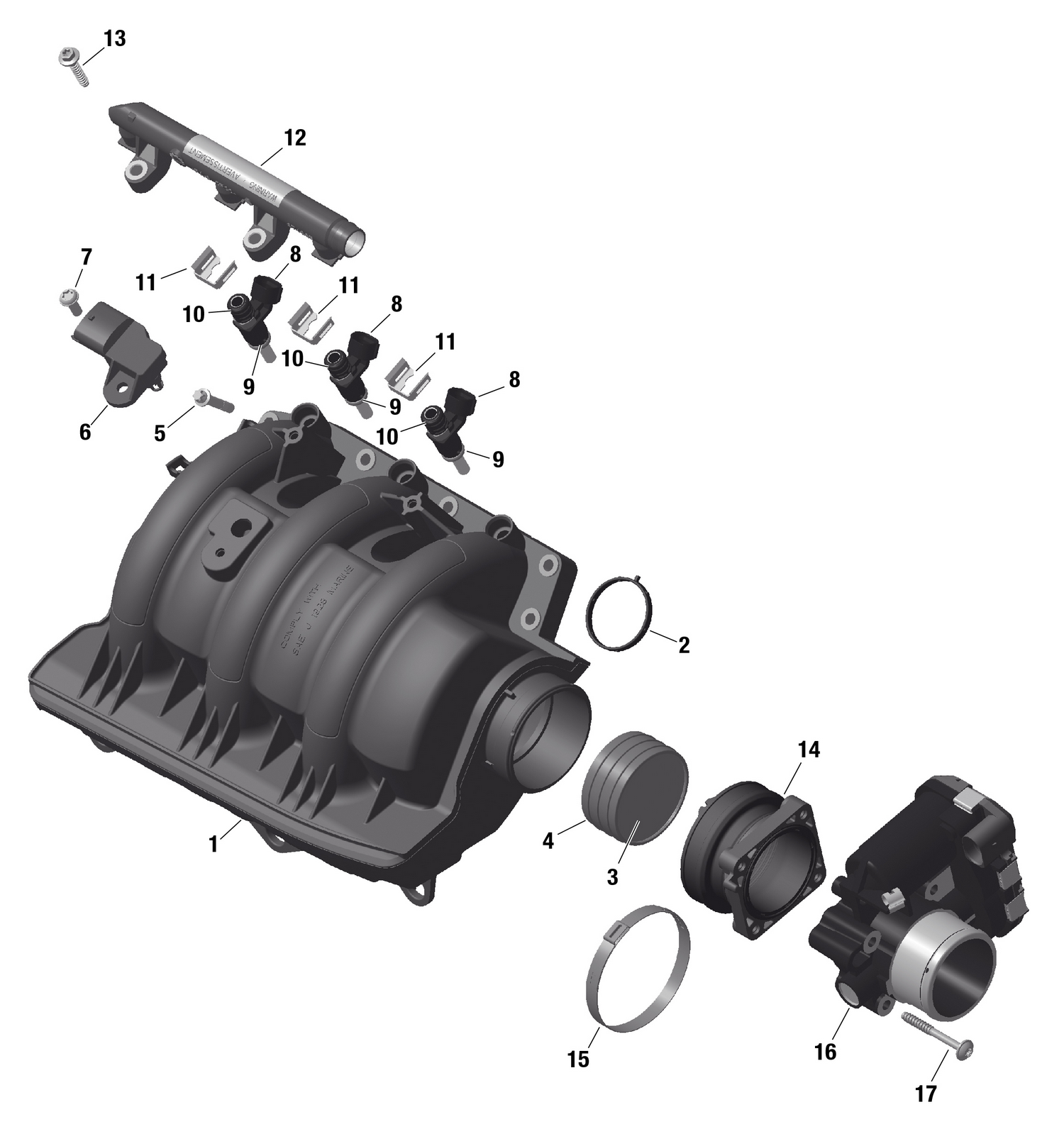

01- ROTAX - Air Intake Manifold And Throttle Body
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 420667710 | Flame Arrester |
| 4 | 420201210 | Profile Ring |
| 5 | 420840663 | Torx Flange Screw M6 X 30 |
| 6 | 420874658 | Pressure And Temperature Sensor |
| 7 | 420641588 | Torx Flange Screw M6 X 16 |
| 9 | 420831050 | O-Ring |
| 10 | 420430775 | O-Ring |
| 11 | 420853030 | Injector Clip |
| 12 | 420874966 | Fuel Rail |
| 13 | 420441575 | Torx Screw 6X30 |
| 14 | 420867092 | Intake Neck This part replaces 420867090. |
| 15 | 420251483 | Hose Clamp |
| 16 | 420893144 | Throttle Body |
