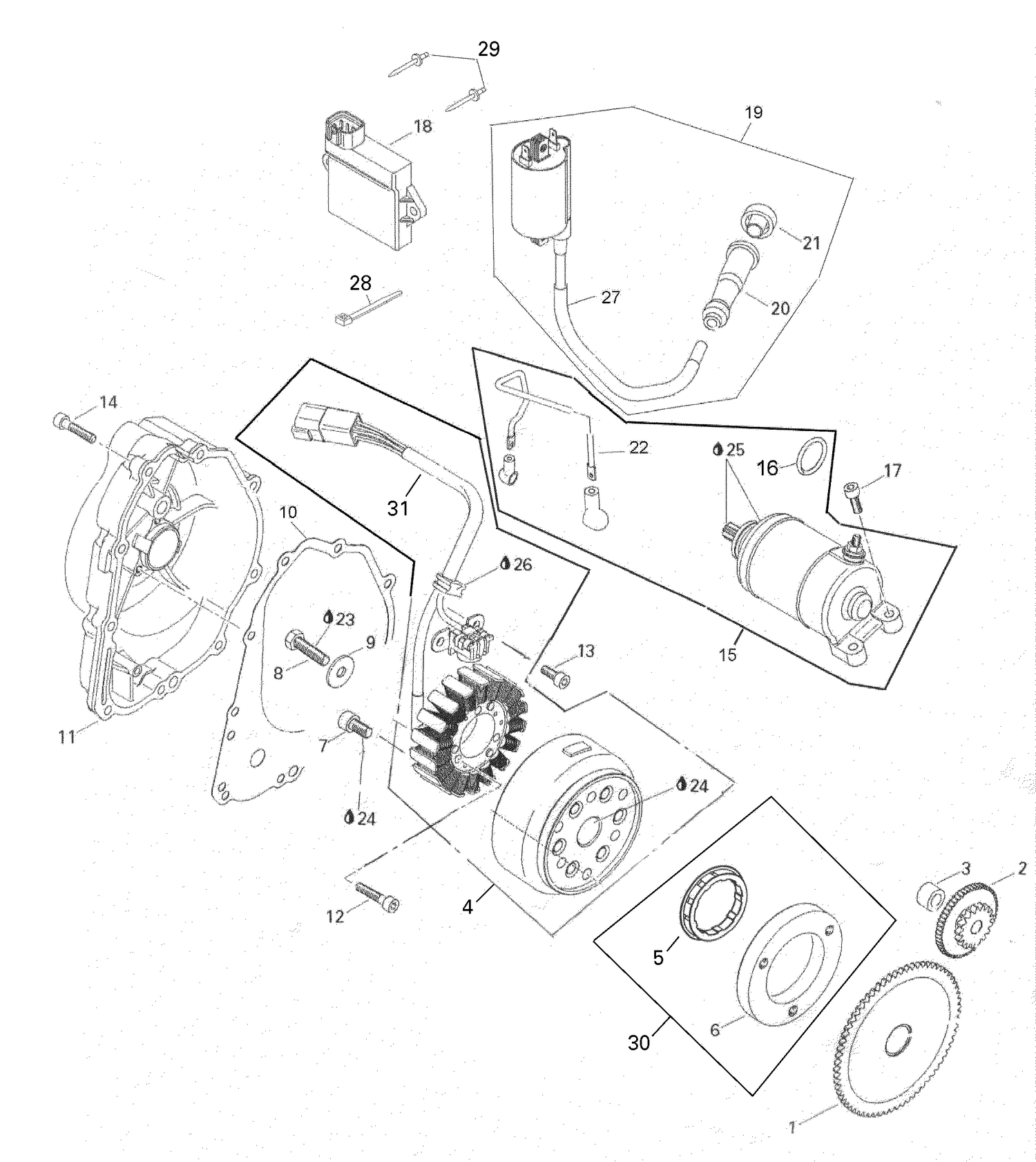

| Ref | Part Number | Description |
|---|
| 1 |
420635150 |
FREE WHEEL GEAR, 67 TEETH - Call your local BRP dealership |
| 2 |
A28422179000 |
IDLE GEAR, 54/17 TEETH - Call your local BRP dealership |
| 3 |
A96401101711 |
DISTANCE SLEEVE - Call your local BRP dealership |
| 4 |
A31100179000 |
AC Generator |
| 5 |
420259495 |
SPRAG CLUTCH - Call your local BRP dealership |
| 6 |
420259480 |
SPRAG CLUTCH HOUSING - Call your local BRP dealership |
| 7 |
A9100008018CL |
SOCKET HEAD SCREW M8 X 18 - Call your local BRP dealership |
| 8 |
420940485 |
SCREW M8 X 30 - Call your local BRP dealership |
| 9 |
A22145179000 |
WASHER - Call your local BRP dealership |
| 10 |
A11393179000 |
GASKET - Call your local BRP dealership |
| 11 |
A11330179000 |
IGNITION COVER - Call your local BRP dealership |
| 12 |
205063044 |
Socket Head Screw M6 X 30 |
| 13 |
420241237 |
Socket Head Screw M6 x 16 This part replaces 420241236. |
| 14 |
205063044 |
Socket Head Screw M6 X 30 |
| 15 |
A31200179000 |
ELECTRIC STARTER - Call your local BRP dealership |
| 16 |
A91324179000 |
O-RING - Call your local BRP dealership |
| 17 |
205062044 |
Socket Head Screw M6 X 20 |
| 18 |
A30410179000 |
Electronic Box |
| 19 |
A30500179000 |
Ignition Coil Ass'y |
| 20 |
A30700179000 |
Spark Plug Connector |
| 21 |
A30605179000 |
RUBBER PROTECTOR - Call your local BRP dealership |
| 22 |
710000232 |
POSITIVE CABLE - Call your local BRP dealership |
| 23 |
293800060 |
Loctite 243, 10 ml |
| 24 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 25 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 26 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 27 |
A30510179000 |
Ignition Coil |
| 28 |
A90669179000 |
Tie Rap |
| 29 |
A90662118000 |
POP RIVET - Call your local BRP dealership |
| 30 |
Not |
Available As Spare Part - Sprag Clutch Ass'y |
