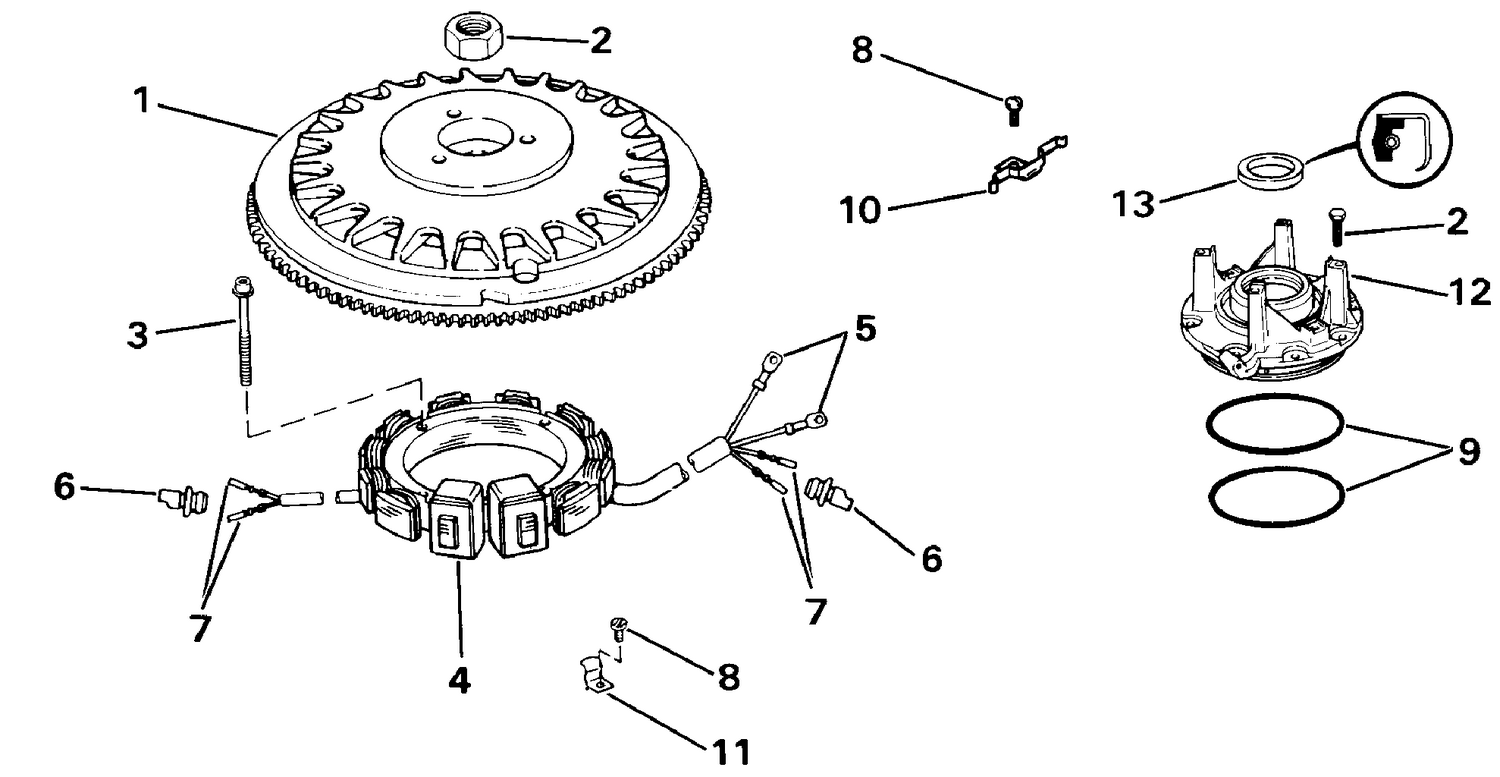

ALTERNATOR KIT, 35 AMP - 120-140-150
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0583844 | FLYWHEEL ASSY. This part replaces 0582572. |
| 2 | 0323599 | LOCKNUT This part replaces 0316828. |
| 3 | 0512321 | SCREW, Stator mount 175, 185, 235 |
| 4 | 0582575 | STATOR ASSY., 150 |
| 4 | 0582654 | STATOR ASSY., 120-140 |
| 6 | 0511989 | CONNECTOR |
| 12 | 5000574 | CRANKCASE HEAD & BRG. ASSY. This part replaces 0396668. |
