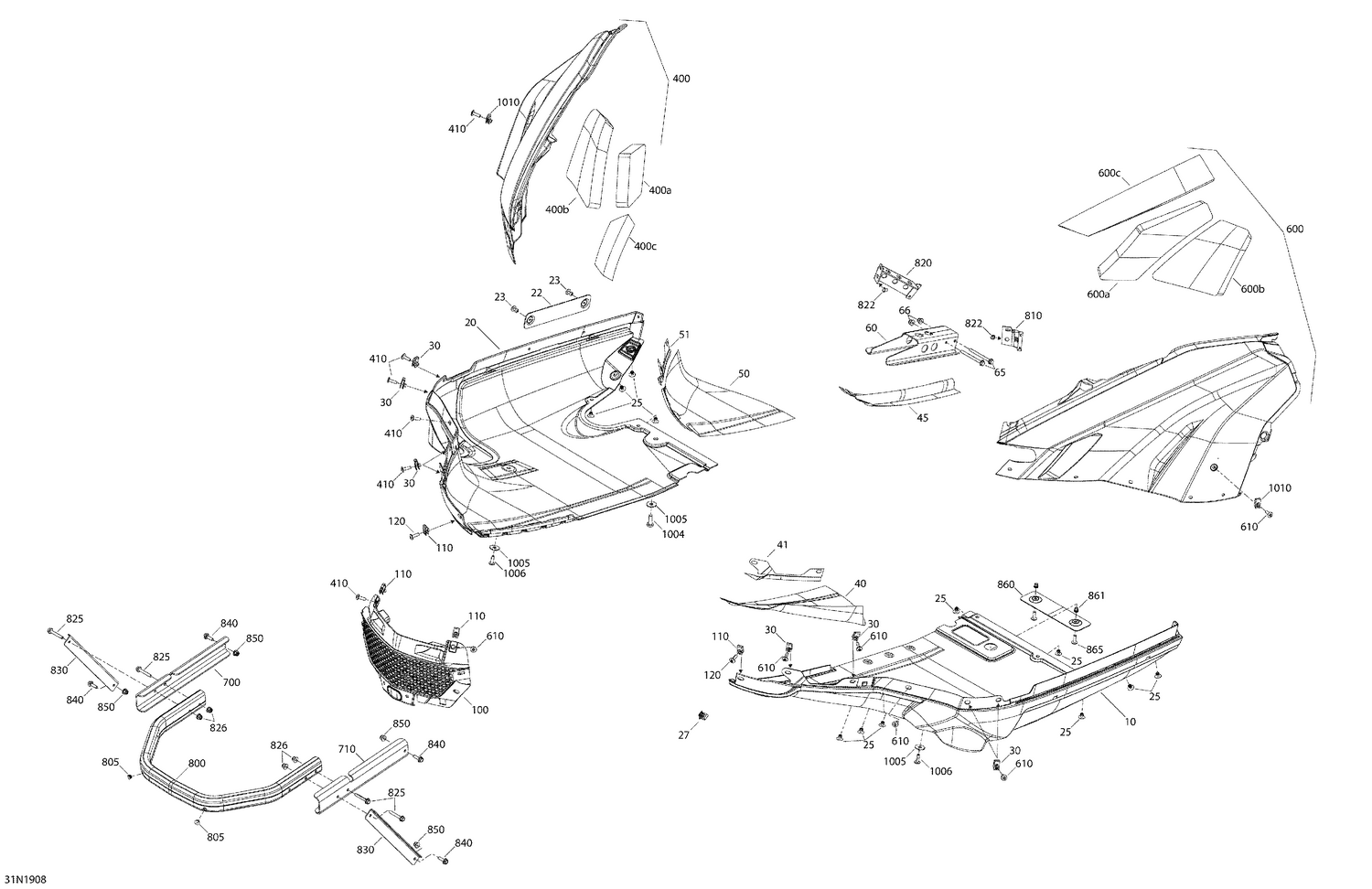

09- Bottom Pan skandic - 900 ACE - Package SWT
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502007836 | LH Lower Bottom Pan |
| 20 | 502007837 | RH Lower Bottom Pan |
| 22 | 502007255 | Heat Isolation Plate |
| 23 | 293150211 | Rivet |
| 25 | 293150104 | Pop Rivet 3/16" |
| 27 | 517302785 | Edge Clip |
| 30 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 60 | 502007688 | Support |
| 65 | 207667056 | Hex. Flange Screw M6 X 70 |
| 66 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 100 | 502007140 | Front Grille |
| 110 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 120 | 250000722 | Torx Screw M6 X 20 |
| 400 | 502008015 | Deep Black, RH Bottom Pan |
| 400a | 502007133 | Insulator |
| 400b | 502007132 | Insulator |
| 400c | 502007009 | Insulator |
| 410 | 250000722 | Torx Screw M6 X 20 |
| 600 | 502008017 | Deep Black, LH Bottom Pan |
| 600a | 502007088 | Insulator |
| 600b | 502007131 | Insulator |
| 600c | 502007185 | Insulator |
| 610 | 250000722 | Torx Screw M6 X 20 |
| 800 | 502007684 | Clear Anod. Bumper |
| 805 | 293730041 | Full Moon Dart 8 mm |
| 810 | 502007535 | LH Bottom Pan Fastener |
| 820 | 502007536 | RH Bottom Pan Fastener |
| 822 | 605636003 | Clinch Nut M6 Hexsert |
| 825 | 207664044 | Hex. Flange Screw M6 X 40 |
| 826 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 830 | 502006927 | Bumper Support |
| 840 | 207662044 | Hex. Flange Screw M6 X 20 |
| 850 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 860 | 518328879 | Oil Plate |
| 861 | 605636003 | Clinch Nut M6 Hexsert |
| 865 | 250000722 | Torx Screw M6 X 20 |
| 1004 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 1005 | 234082410 | Flat Washer 8 mm |
| 1006 | 250000722 | Torx Screw M6 X 20 |
